I am your 1969-1978 US Honda SOHC 750 restoration expert

Honda 750 K0 redrear of 750 Honda 750K 1978

I am a USA-models factory-stock appearance evaluator to
consult for purchase, sale, restoration, film accuracy,
museum, insurance, and show competition
.


red 1975 Honda 750

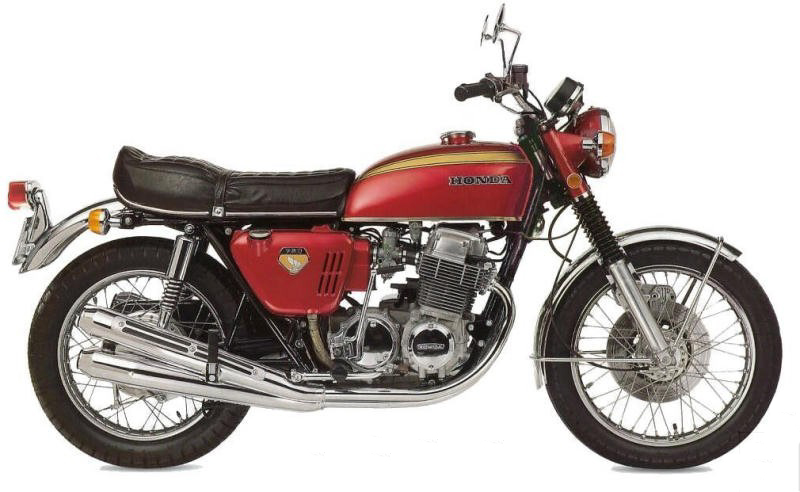

red 69 Honda 750
emblem 1970 Honda 750 side cover   Honda 750 side cover emblem 73-76



Honda motorcycles on TV Don't use 1981 motorcycles for a 1976-era film!
(818) 883-6969     Honda750Expert.com

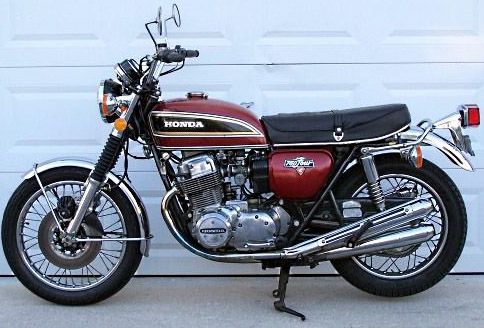

Honda 750 red 1976


If you can't find the information you need,
visit
the 'alphabetical link'
index at here and at the bottom:
INDEX>
Alphabetical topic index for this long page


Or you don't see it? Honda CB750 SOHC parts Request that we research it and add it!

  1 Honda 750

1. Year-by-year Honda 750 US
K, F, and A models
side-cover shapes and emblems!


___ ___ ___ ___ ___


Honda 750 US K models1969 through 1978:

side cover and emblem red Honda 750 1969-1970            orange            side cover and emblem, 1975 Honda 750
(1) 1969-1970         (2) 1971-1972          (3) 1973-1976


side cover and emblem, Honda 750 1977          side cover and emblem, 1978 Honda 750
(4) 1977         (5) 1978


Note that for 1977-1978 K-models, side covers no longer expose an oil tank cap.

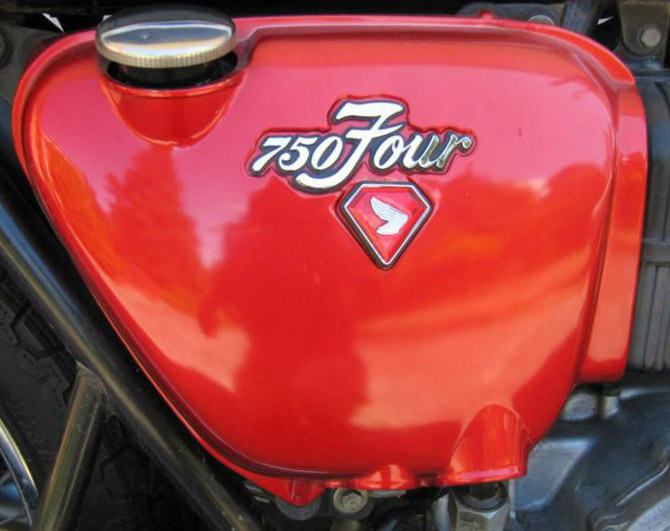

Honda 750 side cover red jewel 1971

Red side cover diamond jewel = originally for 71.

Red diamond jewel, battery side= part #87126-300-405
Red diamond jewel, oil tank side= part #87127-300-405



Honda 750 side cover orange jewel 1972-1976
Orange side cover diamond jewel = originally for 72-76.
Orange diamond jewel, battery side= part #87126-341-405
 Orange diamond jewel, oil tank side= part #87127-341-405

Some reproduction jewels are not exact.
Example: some are missing the Hm at base of the wings.




emblem 1970 Honda 750 side cover  emblem Honda 750 1971     emblem Honda 750 1973-1976

1969-1970           1971-1972                  1973-1976

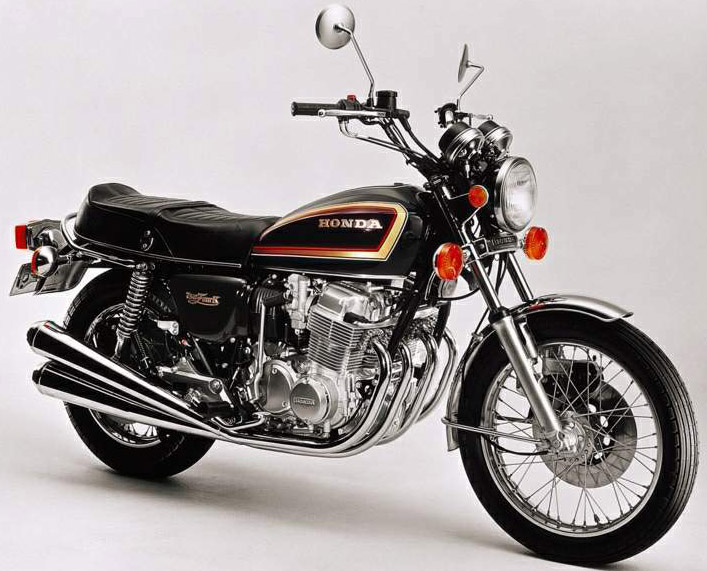

 side cover 1977 Honda 750K black     side cover emblem Honda 750 1978

1977                      1978




69-70 gold-around-white-wings emblem, 1969 Honda 750 side cover emblem left side = part #87124-300-020

69-70 gold-around-white-wings emblem, right side = part #87123-300-020

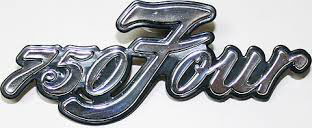

71-72 plastic chrome '750Four' script emblem = part #87123-300-030

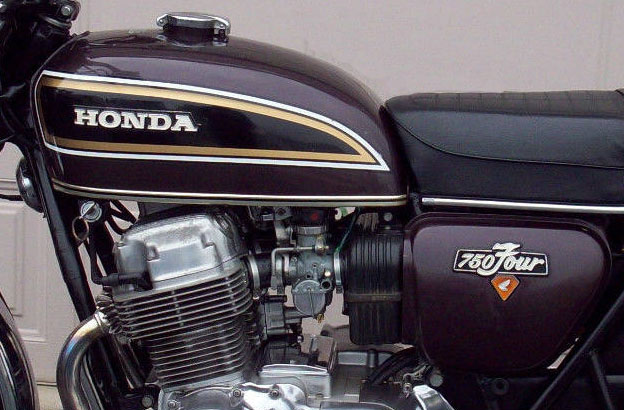

73-76 white metal '750Four' on black background emblem = part #87123-341-673

77 gold '750FourK' emblem = part #87123-405-000

78 gold '750Four' emblem = part #87123-405-777



Tip: near the bottom of this long webpage, there is a
link to obtaining new replacement aftermarket sidecovers.

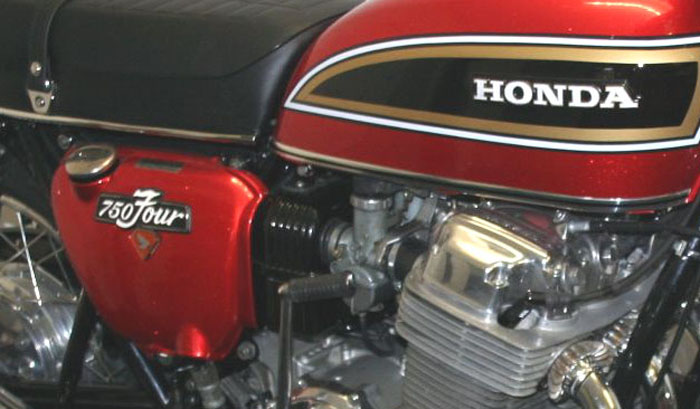

Insider tip
: with most Honda-factory-made US-issue
1971 through 1976 no-vents 750K side covers can use
either your choice of the 71-72 or the 73-76
'750 Four' upper emblems above the diamond jewels
(the newer/bigger emblem covers the indenting
used by the older emblems while most 73-76
covers still have the indenting used on the previous years);
these factory-issue no-vents covers themselves
should fit all K-model bikes models 1971-1976.


US Honda 750 K-model side cover part numbers:

K0 (up to serial #1044649)
(example of a US KO side cover and emblem red Honda 750 1969-1970 cover shape/emblem)
K0 Left (battery cover), 83600-300-020 (followed by a two-letter color code)
K0 Right (oil tank cover), 83700-300-020 (followed by a two-letter color code)

US colors: AZ= Candy Blue Green   CM= Candy Ruby Red   CQ= Candy Gold

K1 (from serial #1044650)
(example of a US K1 orange cover shape/emblems)
K1 Left (battery cover), 83600-300-030 (followed by a two-letter color code)
K1 Right (oil tank cover), 83700-300-030 (followed by a two-letter color code)

US colors: AZ= Candy Blue Green   CM=Candy Ruby Red
CQ= Candy Gold   EE= Candy Garnet Brown   EF= Valley Green Metallic


K2
(example of a US K2 orange cover shape/emblems)
K2 Left (battery cover), 83600-300-030 (followed by a two-letter color code)
K2 Right (oil tank cover), 83700-300-030 (followed by a two-letter color code)

US colors: LU= Briar Brown Metallic  LV= Flake Sunrise Orange

K3
(example of a US K3 side cover and emblem, 1975 Honda 750 cover shape/emblems)
K3 Left (battery cover), 83600-341-701 (followed by a two-letter color code)
K3 Right (oil tank cover), 83700-341-701 (followed by a two-letter color code)

US colors: LY= Candy Baccus Olive  QQ=Maxim Brown Metallic   LV= Flake Sunrise Orange

K4
(example of a US K4 side cover and emblem, 1975 Honda 750 cover shape/emblems)
K4 Left (battery cover), 83600-341-701 (followed by a two-letter color code)
K4 Right (oil tank cover), 83700-341-701 (followed by a two-letter color code)

US colors: LV= Flake Sunrise Orange  TC=Freedom Green Metallic   TD= Boss Maroon Metallic

K5
(example of a US K5 side cover and emblem, 1975 Honda 750 cover shape/emblems)
K5 Left (battery cover), 83600-341-701 (followed by a two-letter color code)
K5 Right (oil tank cover), 83700-341-701 (followed by a two-letter color code)

US colors: MV= Planet Blue Metallic  UE=Flake Apricot Red

K6
(example of a US K6 side cover and emblem, 1975 Honda 750 cover shape/emblems)
K6 Left (battery cover), 83600-341-701 (followed by a two-letter color code)
K6 Right (oil tank cover), 83700-341-701 (followed by a two-letter color code)

 US color: ZB=Candy Antares Red Special

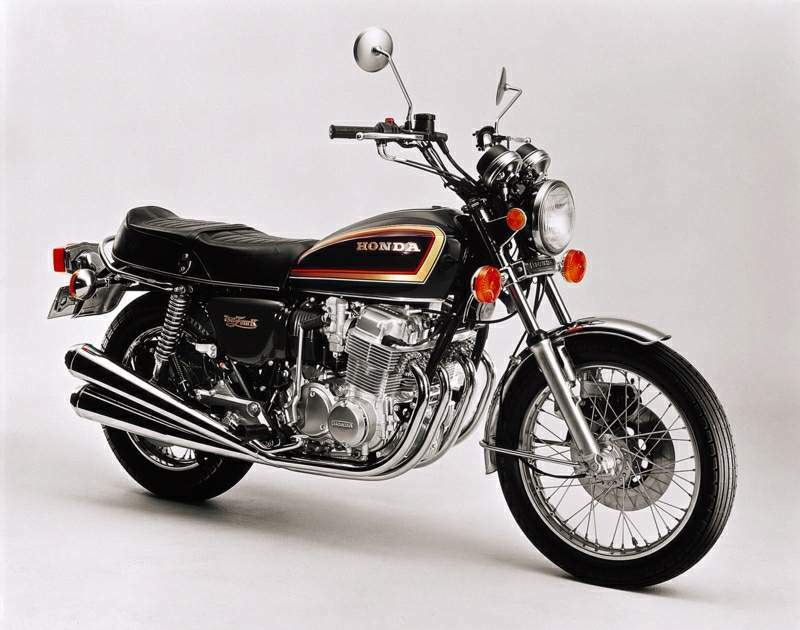

K7 and K8
(example of a US K7/8 side cover 1977 Honda 750K blackside cover emblem Honda 750 1978 cover shape/emblems)
K7/K8 83600-405-000 and 83700-405-000 (followed by a two-letter color code)
US colors: ZA= Candy Alpha Rd   ZB=Excel Black

___ ___ ___ ___ ___



Honda 750 Super Sport US F-model side-cover shapes and emblems:

Honda 750 F sidecover 1975-1976       Honda 750F super sport side cover 1977-1978

US Honda 750F Super Sport side cover part numbers:
Left (battery cover), 1975-1976 83700-392-000 (can be followed by a color code)
Left (battery cover), 1977-1978 83700-410-000 (can be followed by a color code)
Right (oil tank cover), 1975-1978 83700-392-000 (can be followed by a color code)

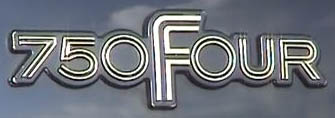

1975-1977 Honda 750F Super Sport side cover emblem <75-77F      78F> side cover emblem Honda 750 F Super Sport 1978

US Honda 750F Super Sport side cover emblem part numbers:
1975-1977 87127-392-000
1978 87127-410-770


___ ___ ___ ___ ___

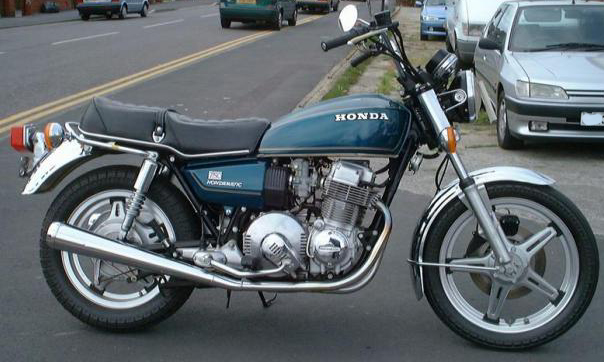

Honda 750 Automatic US
A-model side-cover shape and emblems:

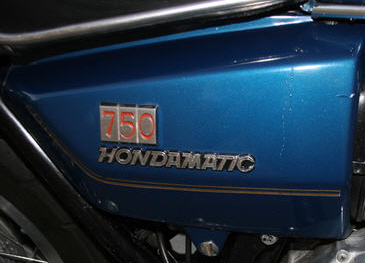

Honda 750 automatic side cover blue   Honda 750 Hondamatic side cover   Honda 750 automatic side cover reddish

US Honda 750A Hondamatic side cover part numbers:
Left, 1976: 83700-393-000
(followed by ZA if Muscat Green or ZB if Candy Antares Red)
Right, 1976: 83600-393-000
(followed by ZA if Muscat Green or ZB if Candy Antares Red)

Left, 1977: 83700-393-770
(followed by ZA if Candy Sword Blue or ZD if Candy Presto Red)
Right, 1977: 83600-393-770
(followed by ZC if Candy Sword Blue or ZD if Candy Presto Red)

Left, 1978: 83700-393-770
(followed by ZA if Candy Alpha Red or ZE if Candy Polaris Blue)
Right, 1978: 83600-393-770
(followed by ZB if Candy Alpha Red or ZE if Candy Polaris Blue)

(so per part number, it appears that 77 and 78 are identical to ach other except for color)
Note: Hondamatic side covers are the only that use mounting hardware)



emblem Honda 750 automatic   Honda 750 automatic side cover emblem

Side cover emblem A (the '750' only), 1976-1978,
Honda 750 Automatic: part # 87111-393-000

Side cover emblem B (the 'HONDAMATIC' only), 1976-1978,
Honda 750 Automatic: part # 87113-393-000



____________________________________________________________

Do you need new unpainted aftermarket replacement sidecovers for your 750?

Replacement side covers for Honda 750
_____________________________________________________________


Note: Involves transition models. Other part numbers, additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types
.
Entire site and content © Honda750Expert.com


Honda 750 orange


  2 Honda750Expert
2. Honda 750 US
K-model air filter case/housing assemblies

red air box Honda 750  Honda 750 air box blueairbox Honda 750gold air box Honda 750    black air box 1976 Honda 750

1969 to 1970, they were smooth and available in colors to
match side covers. Somewhat brittle and prone to cracking.


1971 to 1978, a stronger ribbed-surface
version was used, available only in black.


Beginning for 1973, air intake was restricted
using baffling to reduce intake roar!

Tip: the top half of the assembly is known as the air filter case;
the bottom half of the assembly known as the air filter cover.



More air filter information at Sections 48 and 114!


Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com

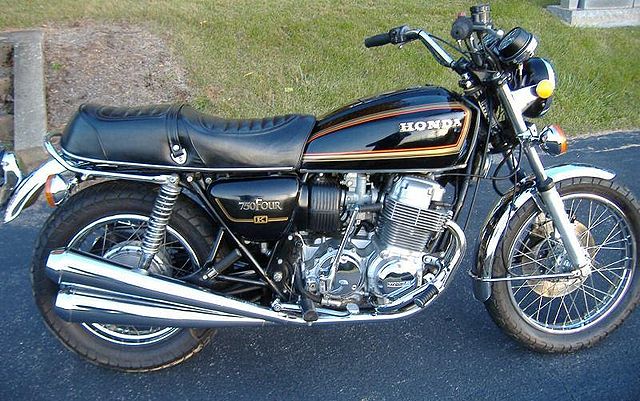

Honda 759 1978 black

  3 Honda750expert
3. An example of year-to-just-very-next-year US visual changes

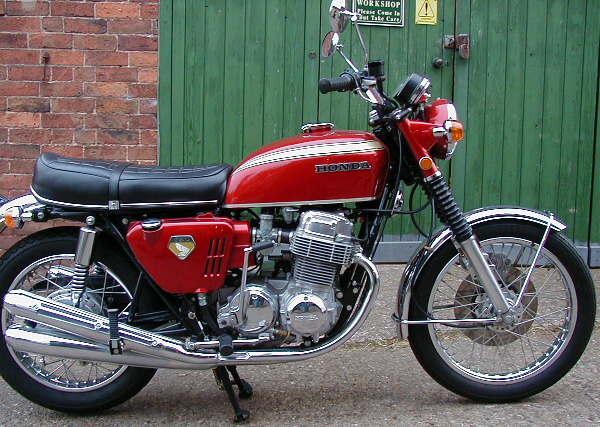

1970 > red 1970 Honda 750 red 1971 Honda 750 < 1971

Different: 1. tank emblem colors, 2. side cover shapes,
3. side cover emblems, and 4. air filter housing design & colors

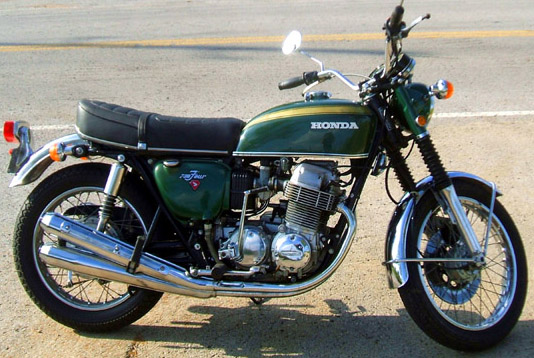

1971 Honda 750 green


  4 Honda 750 expert
4. "Why am I finding 3 different gas cap latches on various
US 750 K-model years throughout 1969 through 1976?"


There were 3 types: factory original, factory recall, and aftermarket.

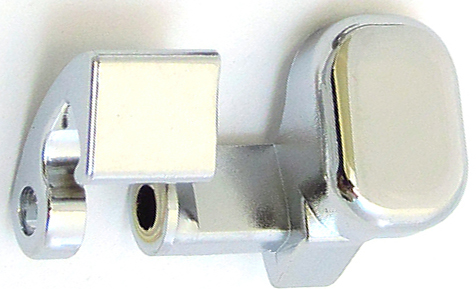

Honda 750 gas cap latch regular        Honda 750 gas cap       Honda 750 gas cap lock
Regular thumb latch                                                      'Recall' safety latch 17550-377-315


Blame it on the recall.

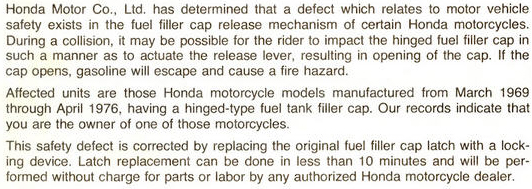

These defect notices were sent out:


Honda fuel filler recall letter

TIP: any 750 Honda ignition key will open the recall safety latch.

40 years later, many dealerships still install it.
However, most 69-76 Honda 750K buyers prefer the original latch.

1977-1978 K-models placed the entire gas cap under a locking lid.
All F-models and A-models placed
the entire gas cap under a locking lid.




Least common is the aftermarket locking gas cap.
Honda 750 aftermarket gas cap lock  aftermarket gas cap lock Honda 750

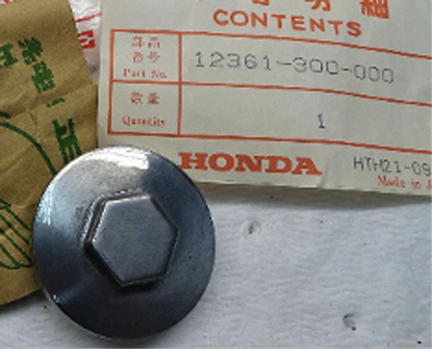

Sold in the mid-1970s, it used a hollow-center hex-shaped key.


1975 Honda 750F Super Sport yellow


  5 Honda 750
5. The 4 main US K/F/A models '69-'78 750
headlight-area differences!


Honda 750 headlight 1971   fork ears Honda 750 1972 K2 chrome   Honda 750 headlight 1973   front turn signals Honda 750 1977-1978

1969-1971 K-models: headlight shell and headlight
mounts are same color as the gas tank & side covers.
Uses turn signal stalks to mount headlight.
1972 K-model:
headlight shell is black; headlight mounts are chrome.
Uses turn signal stalks to mount headlight.
1973-1976 K-models:
headlight shell is black; headlight mounts are chrome.
Turn signal stalks mount in a hole
rearward of headlight mounting hardware.

1977-1978 K-models:
headlight shell is black; headlight mounts are chrome.

1975-1978 F-models:
headlight shell is black; headlight mounts are chrome.

1976-1978 A-models:
headlight shell is black; headlight mounts are chrome.



1969-1971 K-models: small reflectors.

1972-1978 K-models: larger reflectors.
1975-1978 F-models: larger reflectors.
1976-1978 A-models
: larger reflectors.



1969-1976 K-models:
turn signals are about parallel with headlight centerline.
1977-1978 K-models:
turn signals are below headlight.

1975-1978 F-models:
turn signals are below headlight.

1976-1978 A-models:
turn signals are below headlight.



Turn signal information at Quick Tips:
5 (headlight area photos),
7 (rear turn signal mounts),
16 (turn signal lenses and turn signals),
65 (chrome grab bars) and
110 (front turn signal mounts)!


Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


Honda 1975 750


  6 Honda 750

6. --- Gas tank emblems
for Honda 750 K/F/A ---


Gas
tank emblems and their backgrounds,
69-78 Honda US 750
K-models


1. tank emble, Honda 750 1969-1970      2. gas tank emblem 1972 gold Honda 750     3. gas tank emblem, red 1975 Honda 750      4. gas tank emblem, Honda 750 1977-1978

1. Black letters onto tank color, 1969-1970       2. White letters onto tank color, 1971-1972

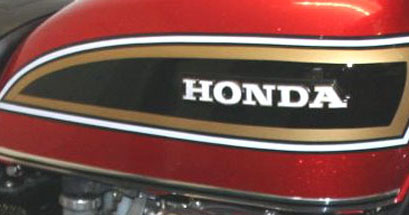

3. White letters onto black tank panel decal, 1973-1976       4. Gold letters onto tank color, 1977-1978



Gas
tank emblems,
69-78 Honda US 750 K-models

1. Honda 750 gas tank emblem 1969-1970             2. Honda 750 gas tank emblem 1971-1972

3. gas tank emblem Honda 1973-1976 750            4. gas tank emblem Honda 750 1977-78

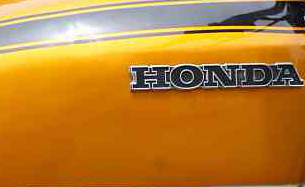

1. 69-70K tank emblem, black letters with polished
edges on its own small black background = 87124-300-020

2. 71-72K tank emblem, white letters
on its own small black background = 87123-300-020

3. 73-76K tank emblems, white letters on its own black
background = right 87121-341-700, left 87122-341-700

4. 77-78K tank emblem, gold letters on its own black background = 87122-405-000


Insider tip: use the correct-color (black) mounting screws.
Use a black Sharpie marker pen to touch-up a scratch on a black screw.


Insider tip
:
on some models, left and right tank-side emblems are the same;
on some, they are different. On some models, later one of the 'side' emblems was discontinued,
causing later use of the only remaining choice to be used on both sides. Usually not noticeable.
Emblems are a soft bendable metal as to follow curves of either side of tank.



Gas
tank emblems, 75-78 Honda US 750 F Super Sport-models

1. gas tank emblem 1975-1976 Honda 750F Super Sport        2. gas tank emblem 1977-1978 Honda 750F Super Sport

1. 75-76F Super Sport tank emblem,
gold HONDA letters on its own black background =
right 87121-392-000         left 87122-392-000

2. 77-78F Super Sport tank emblem,
gold HONDA SUPER SPORT letters on its own black background =
right 87121-410-000         left 87122-410-000



Gas
tank emblems, 7
6-78 Honda US 750 A Hondamatic-models

1. 76A Hondamatic tank emblem,
gold HONDA letters on its own black background =
right 87121-393-000         left 87122-393-000

2. 77-78A Hondamatic tank emblem,
gold HONDA letters on its own black background =
right 87121-393-770         left 87122-393-770



Note: Involves transition models. Additional minor variations, replacement part numbers,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


Honda gold 1972 750


  7 Honda 750 quick tip
7. 3 different US 750 K-model
rear-signal mountings
through the years!


grab handle Honda 750 1969 rear signal 750 honda                    rear signal 74 honda 750                   rear signal 77-78 honda 750
               69-71: on frame    72-76: on grab rail     77-78: under a longer grab rail


Note: K0-K1 rear signals mount to the frame, not to the grab rail,
Honda 750 69-71 rear turn signal mounts 33607-292-000B
using 'Stay' 33607-292-000B.



Note: K7-K8 rear signals mount to the frame, not to the grab rail,

Honda 750K 77-78 rear turn signal stay
using 'Stays' 33606-405-000 (R) and 33607-405-000 (L).



Turn signal information at Quick Tips:
5 (headlight area photos),
7 (rear turn signal mounts),
16 (turn signal lenses and turn signals),
65 (chrome grab bars) and
110 (front turn signal mounts)!



Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com

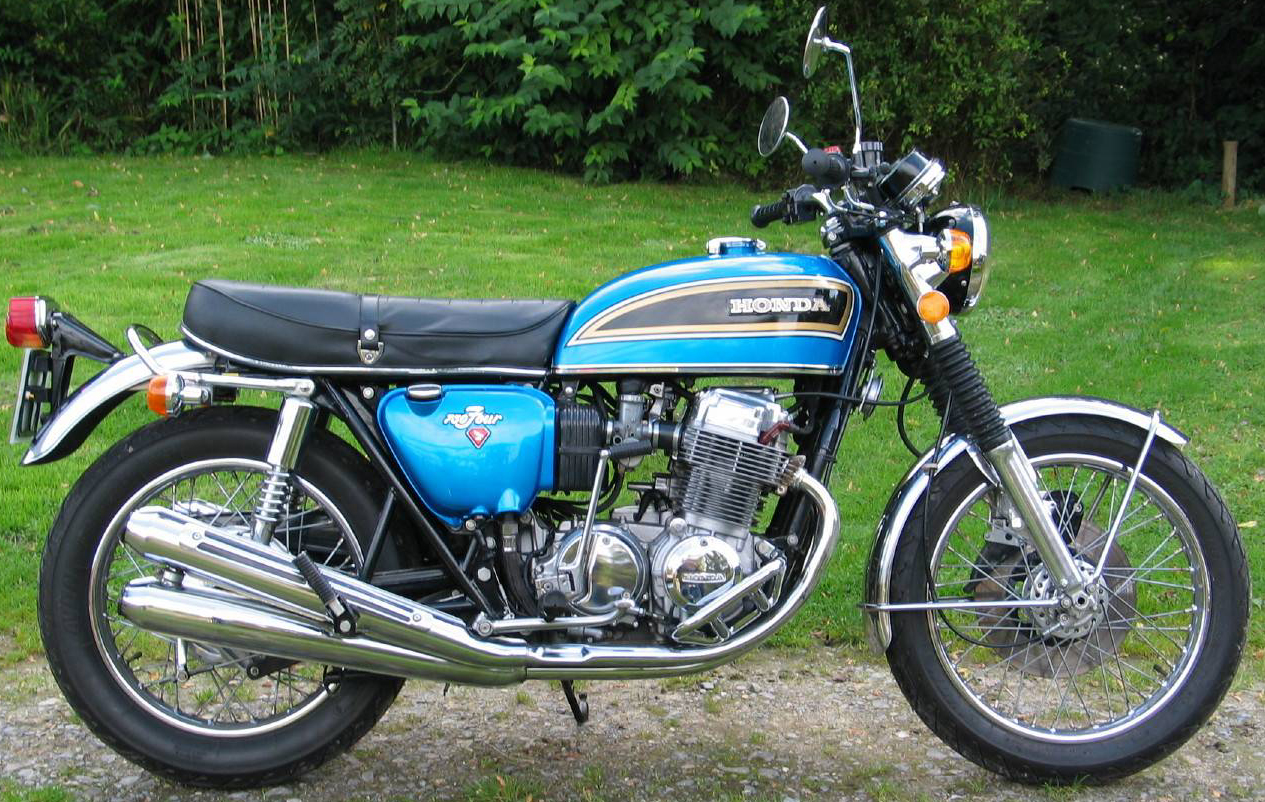

Honda 750 blue 1976


                 quick tip 8 Honda 750
8. Correct standard spark plugs and spark plug caps
US 69-78 750K

Honda 750 outer sparkplug caps XDO5F         Honda 750 sparkplug NGK D8EA         Honda 750 spark plug NGK D8EA                 Honda 750 spark plug gap

Outer caps: NGK XD05F      Standard plug: NGK D8EA      Inner caps: NGK SD05F     Gap: .024-.028


black 1977 Honda 750K


  Honda 750 quick tip 9
9. Most often, which general-style gas valve
('petcock')
do the US 750 K-model gas tanks use?

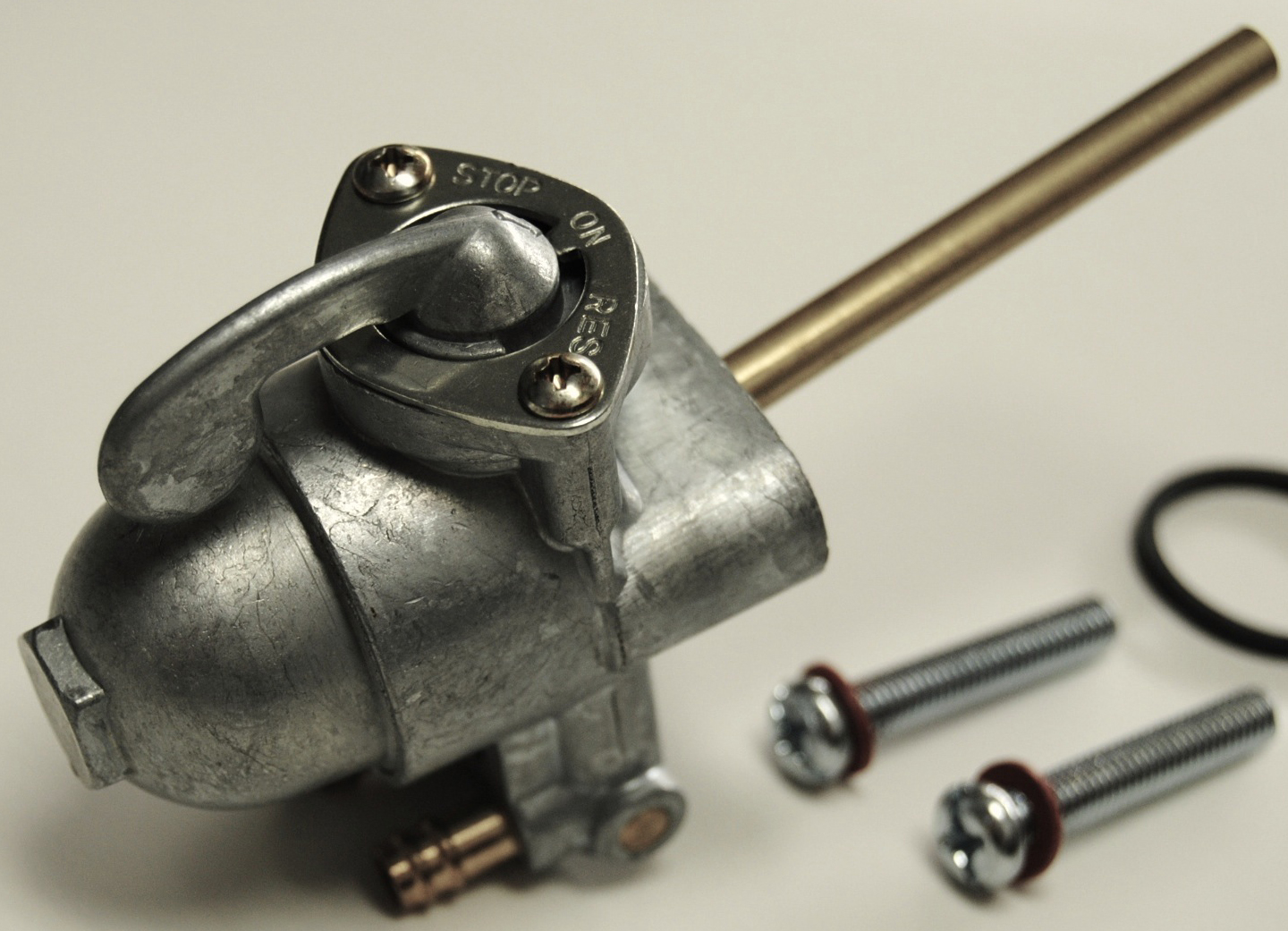

1969-1974 > Honda 750 petcock 1969-1974           Honda 750 petcock 1975-1978< 1975-1978
Seated, is by your right leg                Seated, is by your left leg


Note: height from bottom of tank to bottom of petcock, additional minor variations and/or changes may have occurred within some shown or listed types.

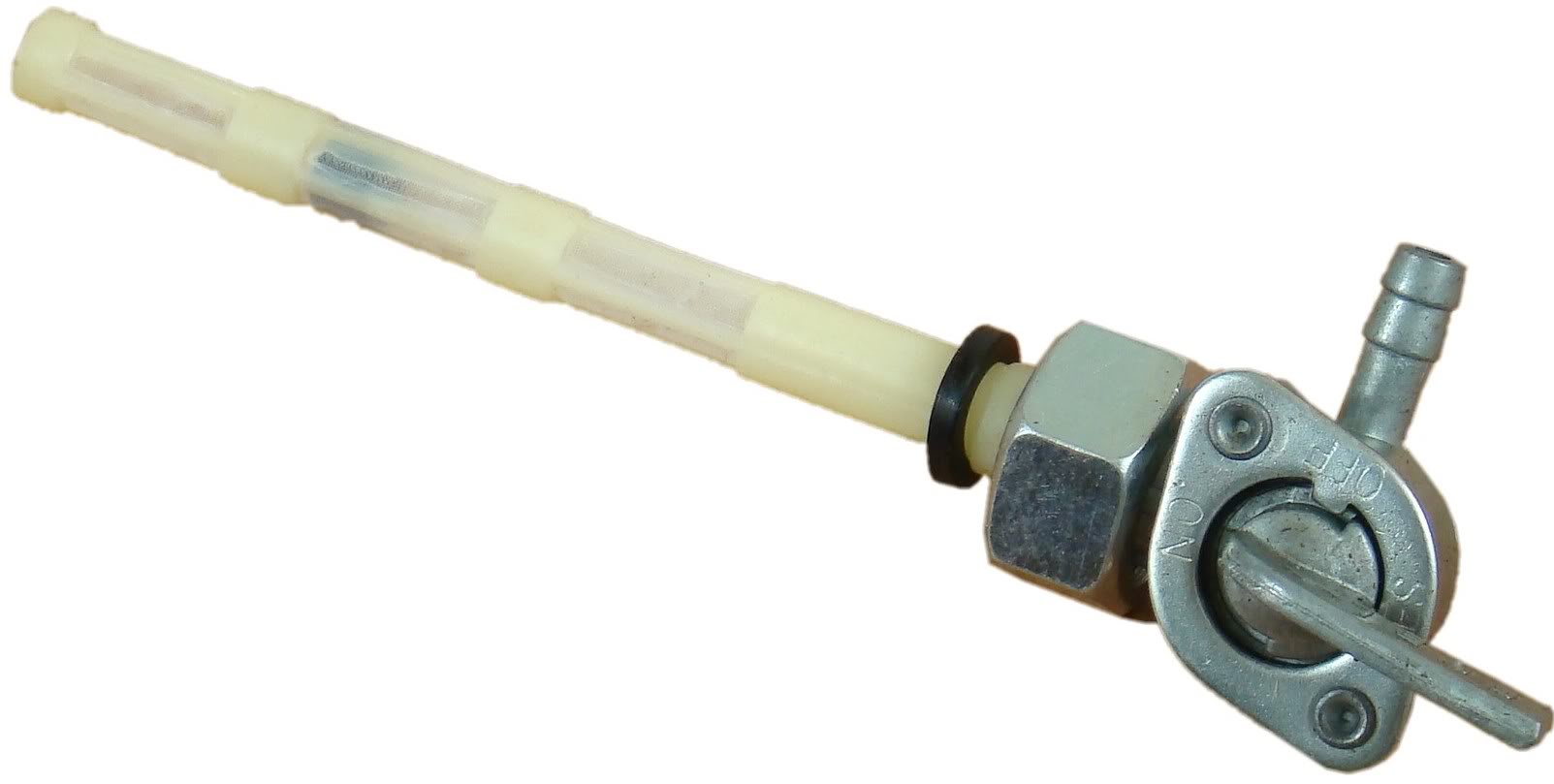

Photo above/right shows white nylon screening used on
newer model petcock. Older model uses this brass screen,
found above removable lower bowl (crud always there):

petcock screen for Honda 750 1969-1974

Note: Some earliest/first 1975 K-model gas tanks are said to have used
the 69-74 petcock and on the 'old' right side, see this blue example:

petcock on 75 Honda 750 on 'wrong' side


Insider tip: Older-style petcock has both 'short' and 'tall' versions.


Insider tip: The older-style petcock has two gas lines leaving it,
feeding the carburetors at their two inlets.
The newer style petcock has only one gas line leaving it, going to a fuel-line tee,
then the tee 'fuel joint' feeding the carburetors at their two inlets.


Insider tip: On newer style petcocks, watch for which direction the single outlet is pointing.
Some point down, some point right, some point left, etc.


Insider tip: Some early/first 1975 K model gas tanks are said to have
used the 69-74 petcock and have it on the 'old' right side.


Some US 750 K-model petcock part numbers to Google:
1969-1974, two brass outlets: 16950-300-020
1975-1976, single brass outlet: 16950-341-671
1977-1978, single brass outlet: 16950-393-015

'Tee' fuel joint: 16235-657-000

Insider tip: fuel tee 16235-657-000 is also used on some older Honda Civic and Accord cars,

so it can often be purchased in the Honda 750 fuel joint 16235-657-000  parts department of Honda car dealerships
.

Note: Involves transition models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types
.

Entire site and content © Honda750Expert.com


Honda 750 red 1972


  Honda 750 quick tip 10
10. Which US
K-model ignition switch to use?
Check the wiring harness plug.


ignition switch Honda 750 1969-1971 round plug      ignition switch Honda 750 70-76     ignition switch Honda 750 1977-1978
Round plug, under tank: 1969, some 1970/1971.

Square plug, under tank: some 1970/1971, 1972-1976.

Up between gauges, block plug behind headlight,
has the fork lock built into it: 1977-1978.



Example of a 72-76 matched replacement ignition/fork lock/seat lock set:


Honda 750 ignition switch with matching fork lock and seat lock



Insider tip:
Some aftermarket ignition switches are very inferior to OEM switches.


Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com

gas tank blue Honda 1969 750


   11 Honda 750 quick tip

11. Standard sprockets used, all US
Honda 750 models 1969-1978
K/F/A

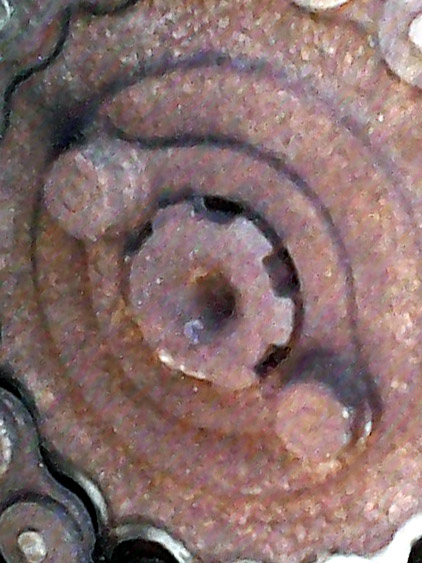

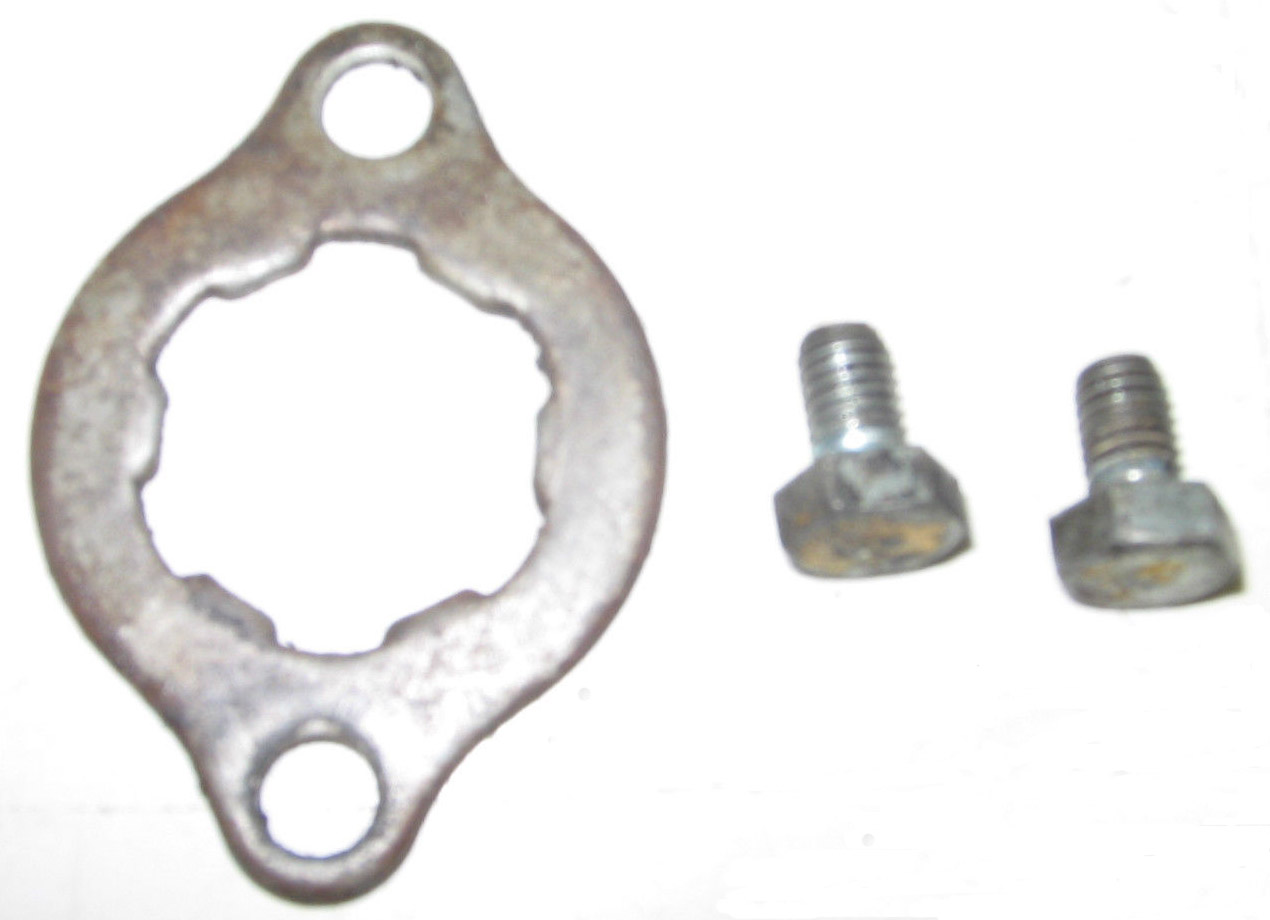

Honda 750 front sprocket boths Honda750ExperDotCom (69-76 type shown here)Honda 750 front sprocket Honda750ExpertDotCom          Honda 750 rear sprocket Honda750ExprtDotCom


1. Standard sprockets used, US 750K models 1969-1978

1969-1970  #530 chain, 17 front / 45 rear           1971  #530 chain, 17 front / 48 rear

1972-1976  #530 chain, 18 front / 48 rear           1977-1978  #630 chain, 15 front / 41 rear


- - - - - - - - - -

2. Standard sprockets used, US 750F Super Sport models 1975-1978

1975-1976  #530 chain, 17 front / 48 rear           1977-78  #630 chain, 14 front / 43 rear

Note: 1976 F-models use a 'peppier' one-tooth-smaller front sprocket than same year K-models.

Note: 1977-1978 F-models use 'peppier' both front & rear sprockets than same year K-models.


- - - - - - - - - -

3. Standard sprockets used, US 750A Automatic models 1976-1978

1976  #530 chain, 17 front / 48 rear           1977-78  #630 chain, 15 front / 42 rear

Note: 1976 A-models use a 'peppier' one-tooth-smaller front rear sprocket than same year K-models.



Insider tip:
Some past owners of 69-76 530-equipped sprockets and chain have
purposely changed them 'up-size' to the bigger but less-popular 630 replacement kits.
More common though-- some past owners of 77-78 630-equipped sprockets and
chain have purposely changed 'down-size' to the smaller but more popular 530 replacement kits.

Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com

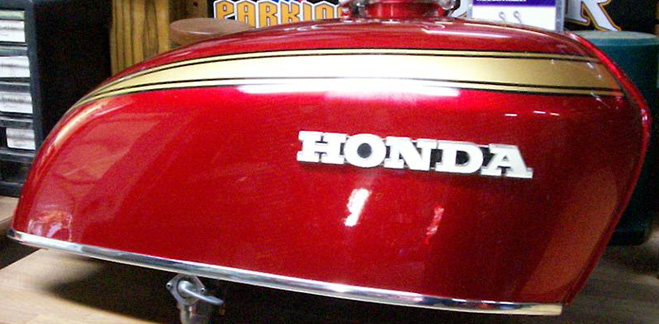

red Honda 750 gas tank 1969-1970


  Honda 750 quick tip 12
12. US
K-model 1969-1978 general seat styles
-older-to-newer
from top-left to bottom-right-

(seat hinges and seat hinge pins too)

--K-model seats followed below by seats for 75-78 SuperSport F models and 76-78 Automatic A models--

seat Honda 750 1969-1970          Honda 750 seat 1972         Honda 750 seat 1975-1976

1. 1969-1970 K (ducktail): 77200-300-020A          2. 1971 K: 77200-300-030A        3. 1972-1976 K: 77200-341-701


seat 1977 Honda 750 K           Honda 750 seat 1978

4. 1977 K: 77200-405-000      5. 1978 K (stitching on side near rear, & taller rear-portion than 77K): 77200-405-770

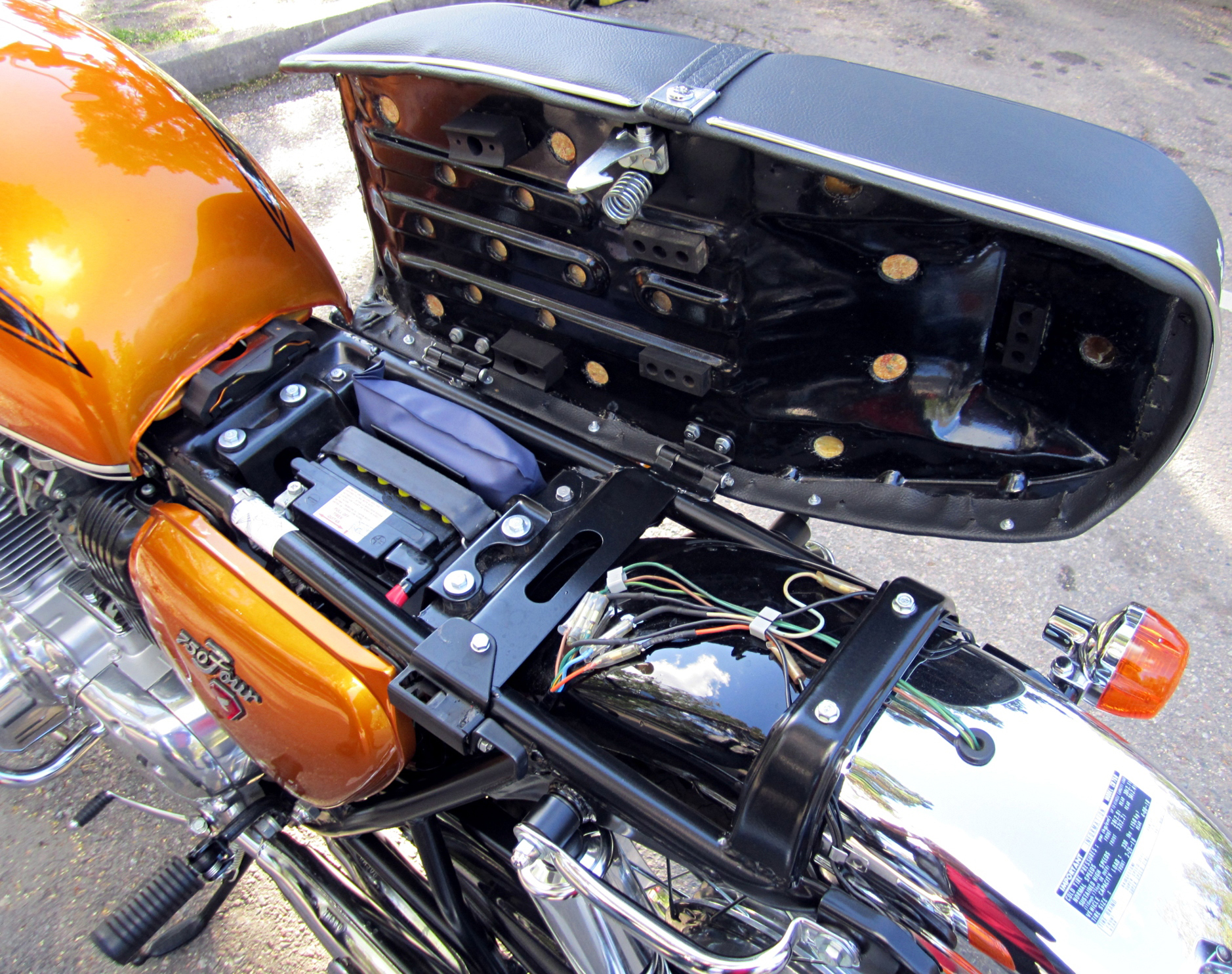

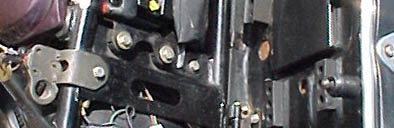

              Seat key lock and plastic document door under seat began 1972. Also different cover patterns throughout the years.

Above photos, while chronological, can not show all possible variations of: inner seat foam type and color,
seat pan changes, vent holes in seat pans, upholstery trim and cover changes. Ducktail variants have been observed too.


Note
:
new original seats are still available for some years.
And seat covers, with the silver word HONDA dyed on correctly, are available.

And reproduction seats are available, some with a plastic seat pan instead of metal.

Honda parts fische indicates that the 'ducktail' seat, 77200-300-020A, was only used through frame #1044649.
That was the last frame number of the 1969-1970 K0 model. Same parts fische indicates that seat #77200-300-030A
was used beginning with frame #1044650, which was the very first frame number of the 1971 year-model K1.



Seat hinge pins!

77203-300-000 Honda 750 seat hinge pin

1969-1976 K models: 77203-300-000 (uses two)
1977-1978 K models: 77203-405-000 (uses two)




Seats for Honda 750 SuperSport F-models
1975-1976: 77100-392-000
(add ZA at end of part number if for Flake Orange Sunrise rear-of-seat plastic cover cowl)
(add ZB at end of part number if for Candy Sapphire Blue rear-of-seat plastic cover cowl)
(add ZD at end of part number if for Sulphur Yellow rear-of-seat plastic cover cowl)
(add ZE at end of part number if for Candy Antares Red rear-of-seat plastic cover cowl)
1977-1978: 77100-410-770
(add ZA at end of part number if for Candy Presto Red rear-of-seat plastic cover cowl)
(add ZB at end of part number if for Black rear-of-seat plastic cover cowl)

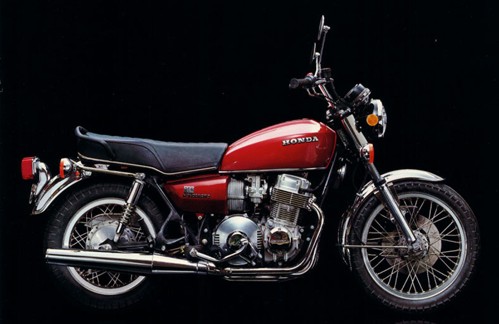

Seats for Honda 750 Automatic A-models
1976: 77200-393-670
1977: 77200-393-772
1978: 77200-393-781

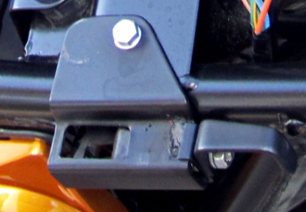

SEAT HINGES
USA K0-K6 has seat hinges on the right (brake lever) side
USA K7-K8 has seat hinges on the left (clutch lever) side

USA K0-K1 both hinges are the same
77201-300-010
USA K2-K6 used two different hinges
77201-341-000 (Hinge A, closest to front)
77201-300-010
USA K7-K8 used two different hinges
Hinge A, 77201-405-000
Hinge B, 77202-405-000




Under-seat rubber blocks information is at Section 79!
Custom seat information is at Section 155!


Note: Involves transition models. Additional minor variations, part number changes,
changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Yes, you are getting closer to the actual Honda CB750 Restoration Guidebelow!

( But this entire webpage is also a visual Honda 750 Honda 750 Restoration Guide 1969-1978 )


red 1975 Honda 750 from Honda750Expert.com


   13 Honda 750 quick tip

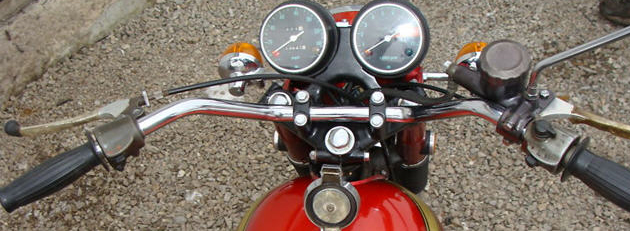

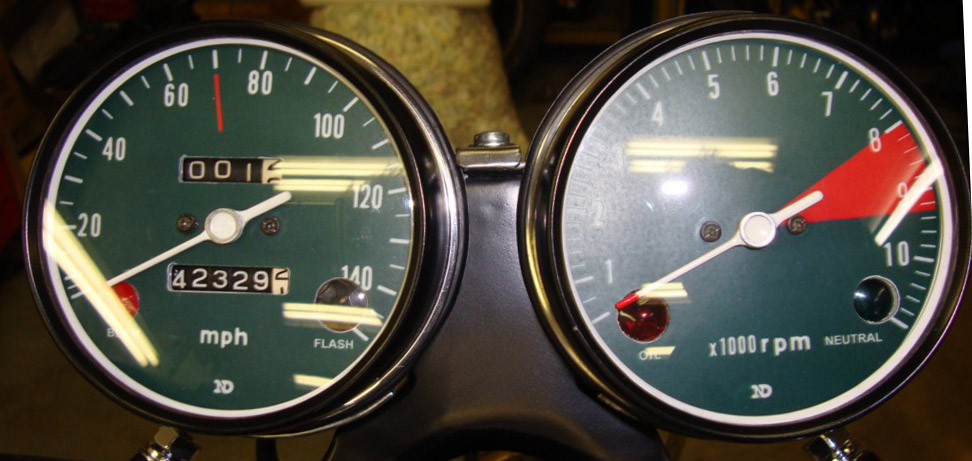

13. Honda 750 gauges: 1969-1978 US speedometers and tachometers

speedometer Honda 750 1969 plastic     Honda 750 speedometer old    speedometer Honda 750 1972

gauges CB750 1970  gauges CB750 Honda 1972  gauges CB750 Honda 78




1969-1970
: plastic cases with acrylic lenses, with warning light jewels in gauges.
Gauges held on by chrome 'meter bracket' bands to 'unicorn'-style top fork bridge.

1971: glass lenses, with warning light jewels in gauges.
Gauges held on by chrome 'meter bracket' bands to 'unicorn'-style top fork bridge.
(note: it is reported that in Europe and some other counties outside of the US,
the 'unicorn' style was used through the 1975 K-model year)

1972-1978: metal cases with glass lenses, with NO warning light jewels in gauges.
Transition model--
some US 1972 gauges held on by chrome 'meter bracket' bands to 'unicorn'-style top fork bridge.
(note: it is reported that in Europe and some other counties outside of the US,
the 'unicorn' style was used through the 1975 K-model year)
A gold transition 1972 K2
model with 'unicorn' and CB750 K2 guauges unicorn with jewels
with warning lights panel.
Note it has K1-type tachometer with the earlier jewel indicators.


1973-1978 gauges bolted to small black meter plates, then that bolts to top fork bridge.
(note: it is reported that in Europe and some other counties outside of the US,
the 'unicorn' style was used through the 1975 K-model year)


Insider tip: Over the years, there were many US-model changes to increments,
face colors (greens, blues) and shades of those, redline areas, etc.



K0>Honda 750 speedometer gauge gace K0 1969-1970    K1>Honda 750 speedometer gauge face K1 1971

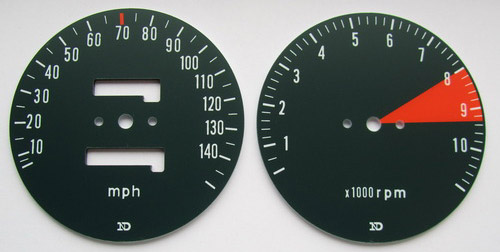

K2-K3>Honda 750 speedometer gauge face 1972-1973   K4-K5>Honda 750 speedometer gauge face 1974-1975

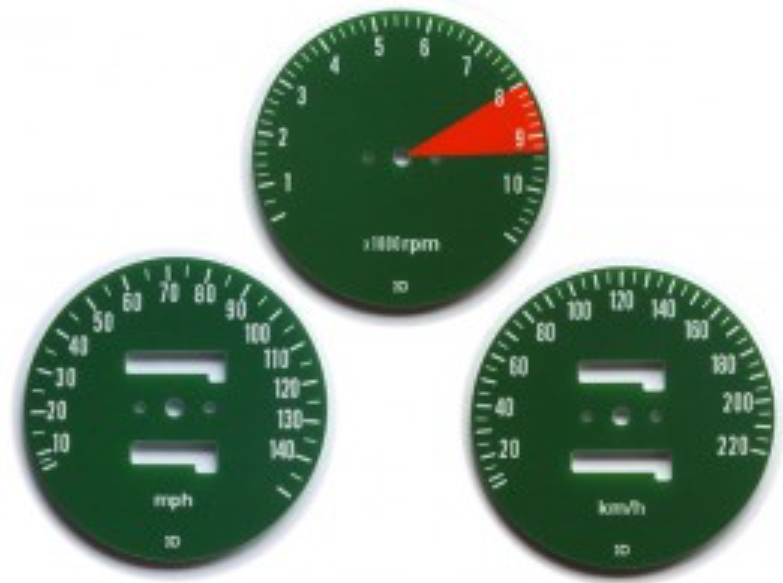

K6>K6 Honda 750 speedometer face   K7-K8> K7-K8 Honda 750 gauge faces


Gauge face photos above are courtesy of Marcel at www.CB750faces.com,
who does gauge restorations and supplies gauge parts.
Larger versions of these gauge face photos are way below at Quick Tip #113.

Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


side cover red Honda 750 1971


  Honda 750 quick tip 14 Honda750Expert

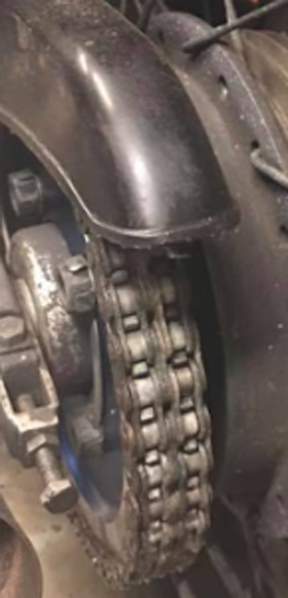

14. Standard chains used, all US Honda 750 models 1969-1978


530 X 100 chain Honda 750 1969-1976
   1. Standard chains used, US 750 K-models 69-78:
                           1969-76:  #530 chain, 100 links         1977-78:  #630 o-ring chain, 88 links


530 X 100 chain Honda 750 1969-1976   2. Standard chains used, US 750 F Super Sport models 75-78:
                           1975-76:  #530 chain, 102 links        1977-78:  #630 o-ring chain, 88 links


530 X 100 chain Honda 750 1969-1976   3. Standard chains used, US 750 A Automatic models 76-78:
                           1976:  #530 chain, 104 links        1977-78:  #630 o-ring chain, 88 links

Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occured within some shown or listed types.
Entire site and content © Honda750Expert.com

 lower front Honda 750


  Honda 750 Quick Tip 15
15. Honda 750
K-model general warning light types US 1969-1978

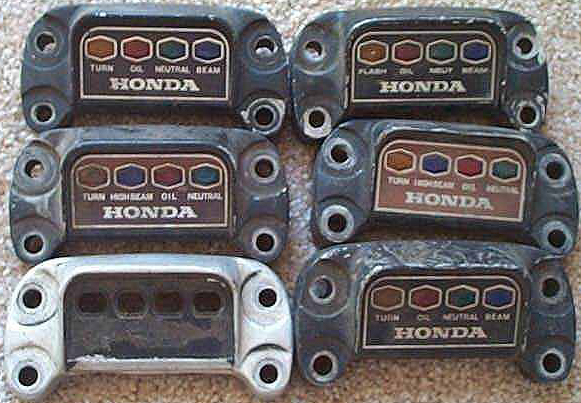

Honda 750 warning lights 1969-1971          warning lights Honda 750 1972-1976          warning lights Honda 750 1977-1978
                 1969-1971                             1972-1976           1977-1978


Insider Tip: there were 3 different versions of the 1972-1976 style warning light panel.


Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com

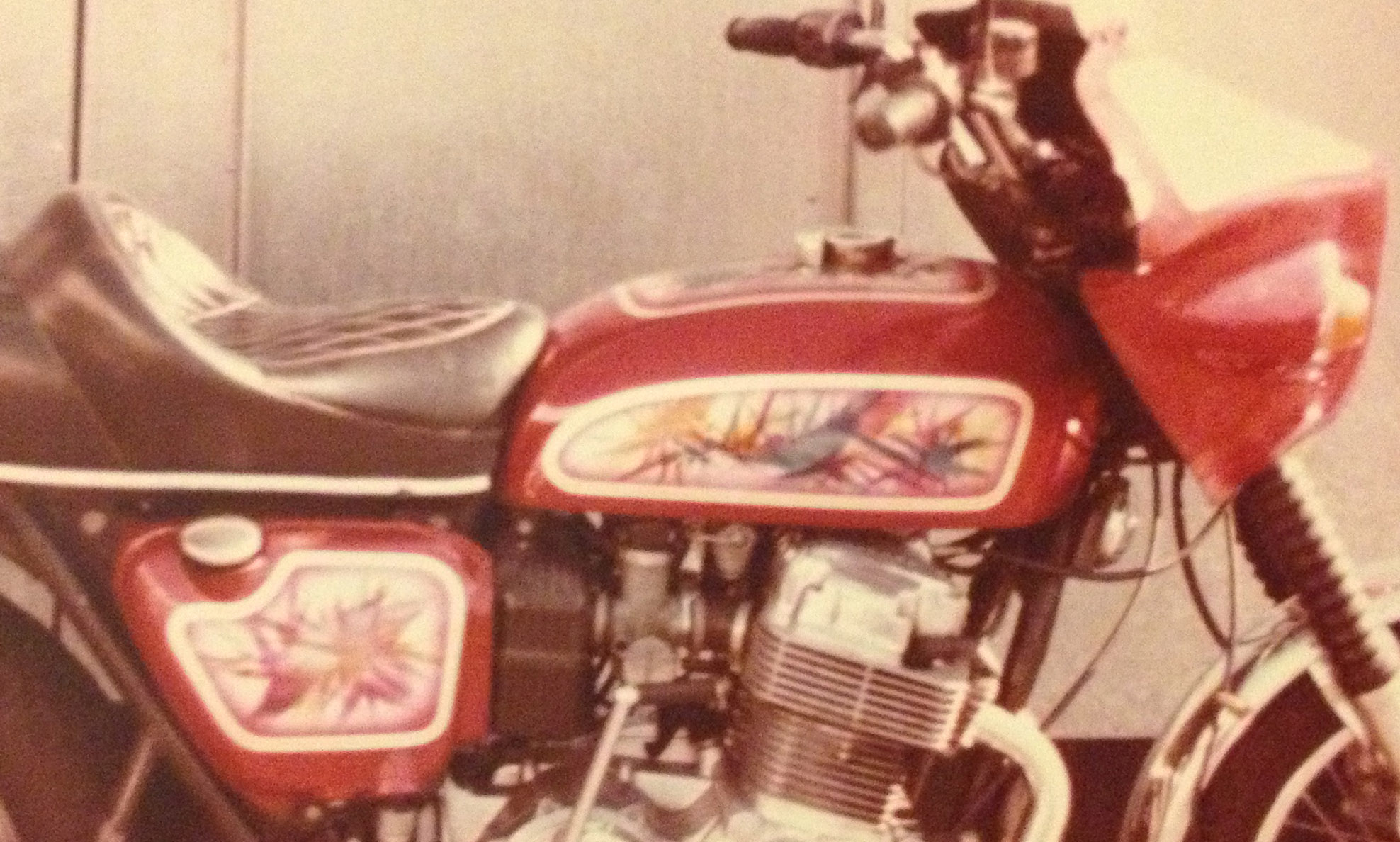

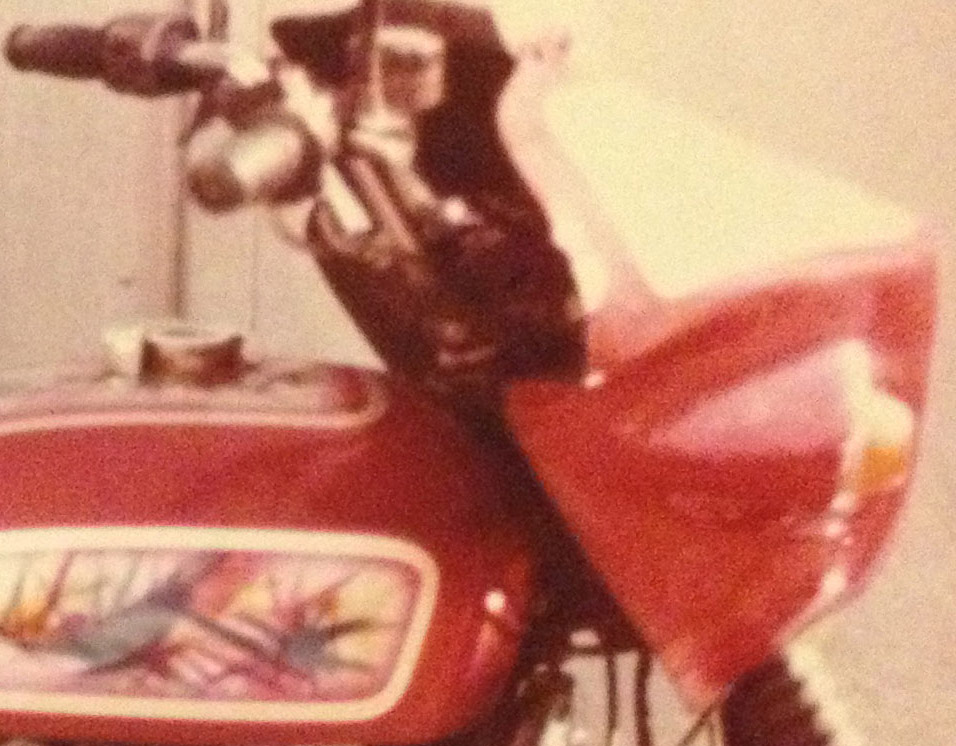

old Honda 750 custom paint

  16 Honda 750 Quick Tip
16. Honda 750
K-model
A: turn signal lenses and B: turn signals
US 1969-1978

Note: Honda refers to turn signals as 'winkers'.


A:
Only 2 main Honda 750
K-model US turn signal lens types:

Honda 750 turn signal lens 1969-1974         turn signal lens Honda 750 1975-1978
1969-1974                            1975-1978
It's small and tall!            It's wide and almost flat!


1969-1974 turn signal lens: 33402-268-672         1975-1978 turn signal lens: 33402-377-671
1969-1974 needs two lens cross screws: 93700-030250B         1975-1978 needs two lens pan screws: 93500-040250A
1969-1974 lens gasket: 33443-268-671         1975-1978 lens gasket: 33406-377-671


The tiny letters on lenses can reveal some origin & other information.




red lenses Honda 750 turn signal lenses  Special note:     red turn signal lenses Honda 750

Should you run across a red turn signal lens
on a US 1969-78 K-model:

In America,
red was not issued on 69-78 US-sold Honda 750s.
It was in some other countries and it was/is available here after-market.

One available 1975-1978 (larger type) red turn signal lens is 33402-377-810.
NOTE: some states do not allow red lenses facing front.


B:
K-model US turn signals
(chrome body
& lens & lens gasket/screws portion):

1970-1971:
left front: 33450-292-670
right front: 33400-292-672
left rear: 33650-300-000
right rear: 33600-300-000

1973:
left front: 33450-341-702
right front: 33400-341-702
left rear: 33650-300-000
right rear: 33600-300-000

1978:

left front: 33450-377-671
right front: 33400-377-671
left rear: 33650-374-671
right rear: 33600-374-671



Turn signal information at Quick Tips:
5 (headlight area photos),
7 (rear turn signal mounts),
16 (turn signal lenses and turn signals),
65 (chrome grab bars) and
110 (front turn signal mounts)!



Note: Involves transition models. Additional minor variations, replacement part numbers,
changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda 750 engine rebuild   Honda 750 1969 K0 emblems


  Honda 750 Quick Tip 17

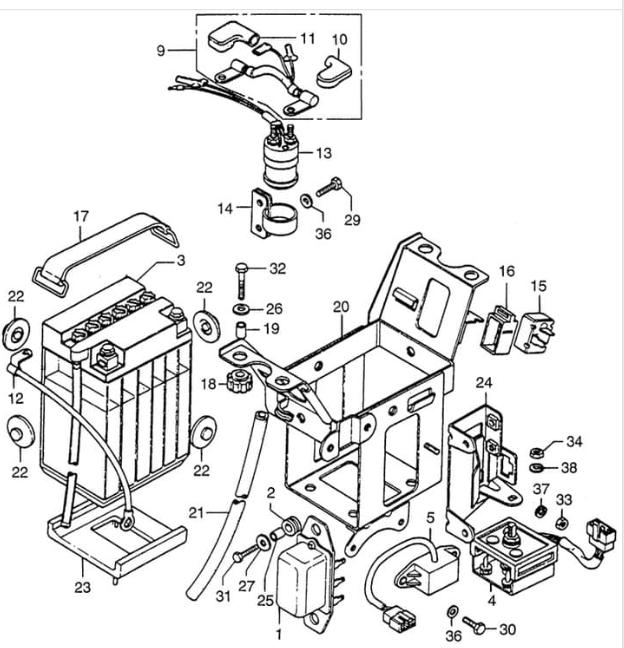

Standard batteries used, all US Honda 750 models 1969-1978

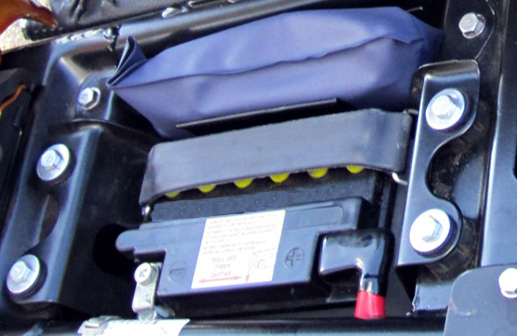

1. The standard Honda 750 batterystandard battery Honda 750 1969-1978 for K-models 69-78:
Yuasa 12N14-3A, installed via opening the K-model seat and removing
retainer strap and two post/cable bolts. Disconnect breather tube by
pulling it down a half inch. Battery lifts straight up & then out.

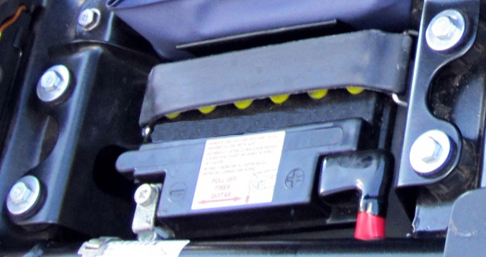

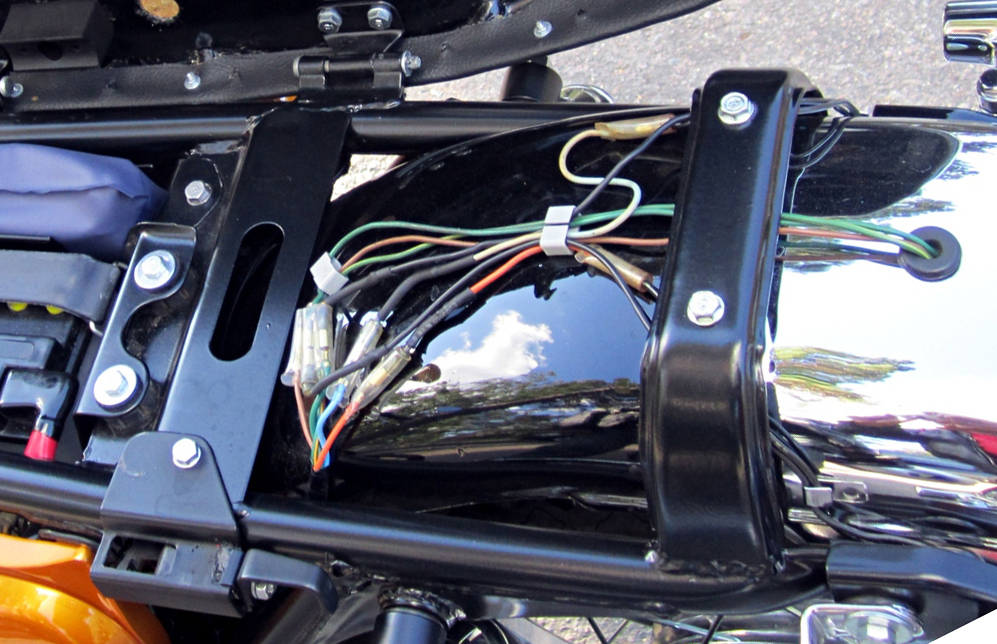

batter under seat of Honda 750 seat

WARNING:
positive cable should have a boot covering its ends and the positive battery post.


- - - - - - - - - - - - - - - - - - - -
2. The standard Honda 750 batterystandard battery Honda 750 1969-1978 for F-models 75-78:
Honda 750 Super Sports use Yuasa 12N14-3A,
same as all K-models do.

- - - - - - - - - - - - - - - - - - - -
3. The standard Honda 750 battery Y50-N18L-A Honda 750A Automatic battery 1976-1978for A-models 76-78:
Honda 750 Automatics use Yuasa Y50-N18L-A,
which was known in the 70s as 'the Gold Wing battery'.



Insider tip: often overlooked- on all models, when installing the new long clear battery
vent/overflow hose, make sure it is inserted in/through all proper guides top to bottom;
if not, you will lose paint or chrome due to battery acid fumes or acid spittle.


Insider tip: acid spittle can also ruin chains.

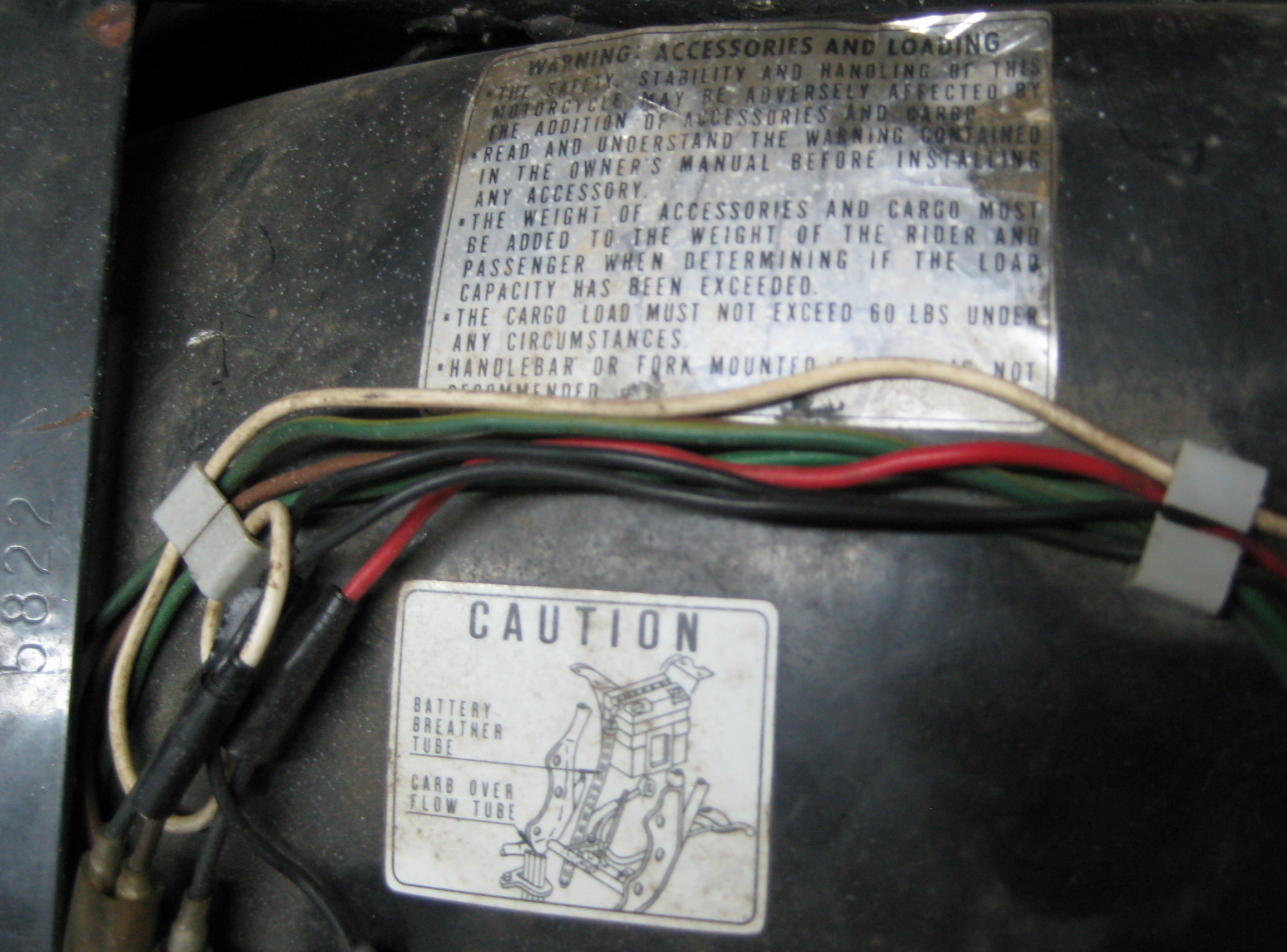

Below decal is from 1976 K-model inner fender:
battery warning sticker Honda 750 rear fender


Note: Involves transition models. Other part numbers, additional minor variations,
changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com

Honda 750 red 1978Honda jewel emblemHonda 750 gas tank redHonda 750 turquoise


  Honda 750 quick tip 18 Honda750ExpertDotCom
The two US 1969-1978 Honda 750
tail light shapes:

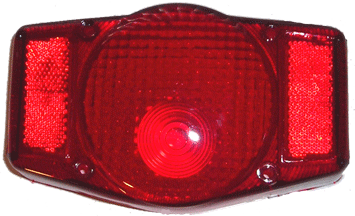

tail light lens Honda 750 tail light lens 1969-1971               tail light lens Honda 750 1972-1978

1969-1971                                       1972-1978
gasket &                                         gasket &
2 screws                                          4 screws


Red, with clear at bottom to illuminate license plate;
some replacements had amber portions on sides.
Very small letters & numbers on the lenses can reveal some origin information
.

Smaller red and clear lens, US 1969-1971: 33702-077-611
1969-1971 lens gasket: 33709-077-671
69-71 lens screws, needs two of these 4x50 cross-screws: 93500-040-504J


Larger red and clear lens, US 1972-1978: 33702-341-671
1972-1978 lens gasket: 33709-341-671
72-78 lens screws, needs four of these 4x55 pan screws: 93500-040-554J

Note: Involves transition models. Other part numbers, additional minor variations,
changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


 Honda 750 1969 K0 emblems Honda 500 gauges Honda 1972 750 gold Honda 750 gauges 1978


You are almost to theHonda CB750 Restoration Guide


Honda 750 quick tip 19

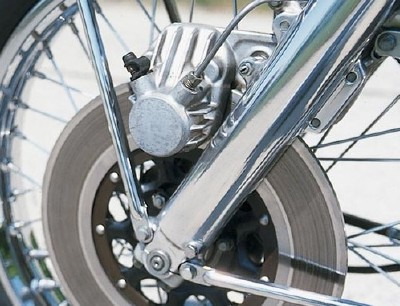

Disk brake calipers for US K-model Honda 750s 1969-1978


caliper Honda 750 1969-1970                     Honda 750 black caliper 1971-1976                     brake caliper for Honda 750 K 1977-178 Honda 750 K-model caliper 1977-1978 45100-392-003

Calipers were silver 1969-1970, were black 1971-1976,
and new-style 1977-1978 caliper was black.

Part numbers for US K-model complete caliper assemblies:
K0, up to final frame 1044649, a silver caliper: 45100-300-023
K1, from fra
me 1044650 (the first K1 model), late 1970, the first black caliper: 45100-300-023B
K2-K6, a black caliper: 45100-341-003

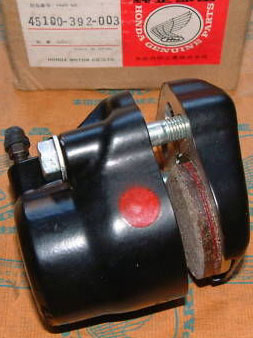

K7-K8, a black caliper: 45100-392-003



There were two main K-model caliper 'pivot'
joint (mounting arm) design styles used 1969-1978:

caliper pivot old Honda 750
<C bracket style>Honda 750 caliper pivot 1969-1971         Honda 750 caliper t-pivot<T
style>caliper mount Honda 750 T-style

1969-1971: C-shaped bracket style 45104-300-040B
1972: C-shaped bracket style 4510
4-300-040
1973-1976: T-shaped style 45104-317-700

1977-1978: T-shaped style 45104-405-000

Example of a 1971 caliper caliper black 1971 Honda 750 bracket style Honda 750 C-bracket-style mount

Watch for sticky/binding pivots.

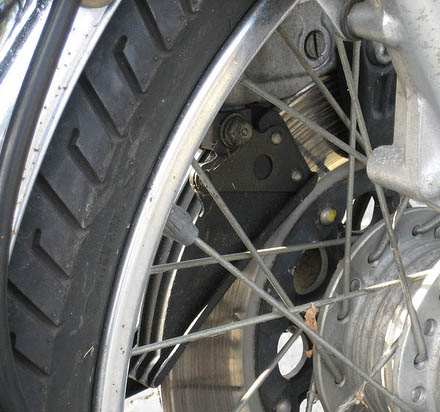

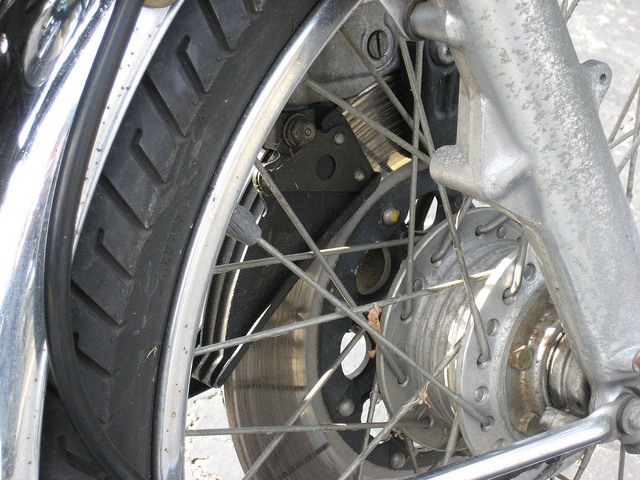

A disk s
plash-guard began with 1973 model.  disk splash guard Honda 750 1973


Replacement brake pads for 19
69-1976 K-models are the same (see below);
they ar
e round and use male --protruding-- locators.
disk brake pads Honda 750 1969-1976

1977-1978 K-model brake pads are
slightly different than the earlier model's pads,
and they have female (notch-only) locators
.

Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Kerker Honda
I can also evaluate proper period-correct
after-market exhaust systems of that era

(Kerker, Winning Performance, Jardine, Strader, etc)


  Quick Tip 20 Honda 750
20. Maintenance specificationsHonda 750 tune-up specifications 1969-1978for Honda 750K 1969-1978

Points gap: .012-.016 inch

Points: 30203-300-154 and 30204-300-154  (left and right are different)

   Complete points plate with points and condensors: 30200-300-154

Spark plugs, standard: NGK D8EA     Spark plug gap: .024-.028 inch

Spark plug caps: outers- NGK XD05F   inners- NGK SD05F

Valve clearance adjustment, cold engine:
intake .002 inch / exhaust .003 inch

Oil Filter (internal paper cartridge with 2 seals):
Honda 15410-426-010     K&N KN-401     Fram CH6009

Chain:  1969-1976 530 X 100     1977-1978 630 X 88

Battery: 12N14-3A

Note: Involves transition models. Additional part numbers, minor variations,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com

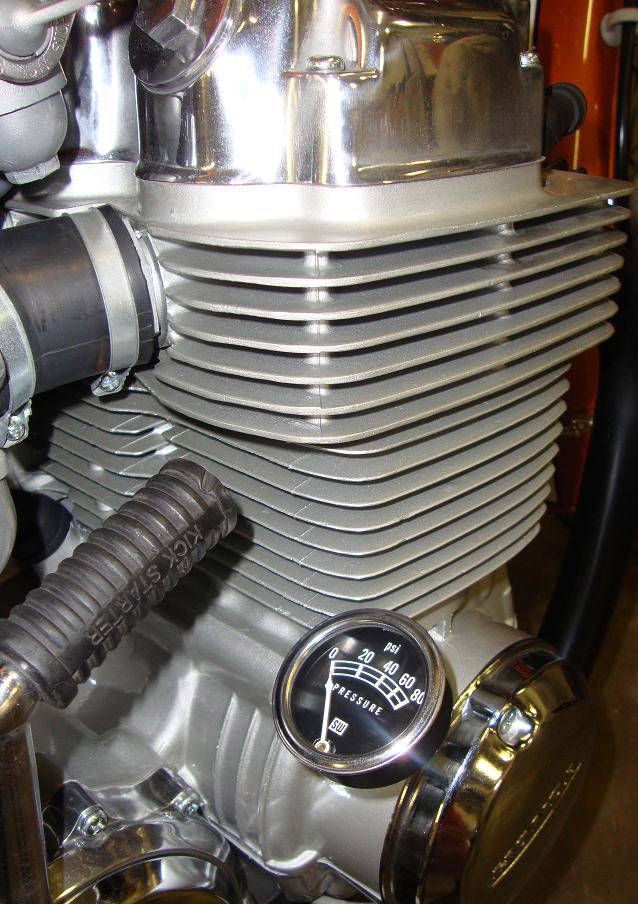

Honda 750 gas gaugeHonda rack 750Honda 750 seatHonda 750 oil gauge
I can also evaluate proper period-correct accessories of
that era
(gas gauges, chain enclosures, racks, seats, oil gauges, etc)


Quick Tip 21 Honda 750
  Honda 750 oil change
21. K-model oil change tips and some visual cues

You need to drain the dirty oil at 3 spots:

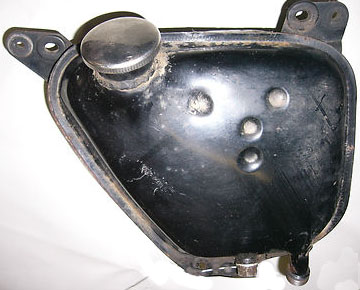

the oil tank, its bolt (92800-12000) and washer (94109-12000) peeking from under a plastic side cover; the oil filter housing at the front of the engine,
bolt (15420-300-020); and from the crankcase oilpan drain plug (92800-12000) and washer (94109-12000) at the bottom of the engine.


oil tank drain bolt Honda 750     Honda 750 drain bolt    Honda drain bolt washer 750   Honda 750 oil filter housing 1969-1978  oil filter bolt stock Honda 750 1969-1978  Honda 750 oil filter housing inside 1969-1978

Honda 750 oil pan
    Honda 750 drain bolt    Honda drain bolt washer 750


Oil Filter
(internal paper cartridge with 2 added seals:
large seal for filter housing to engine case, small seal for filter bolt):
Honda 15410-426-010     K&N KN-401     Fram CH6009

NAPA PS4940    Purolator ML16809   WIX 24940

 Honda 750 oil filter 1969-1978  Oil lilter Honda 750 1969-1978  Honda 750 oil filter spring    Honda 750 oil spring washer   Honda 750 filter bolt 1969-1978

Insider tip:
The original oil filter bolt uses a small 12mm head that often gets rounded.
There is an after-market bolt that uses a larger 17mm head instead.


However, this larger bolt-head can more easily lead to overtightening,
that leading to disasterous crankcase-threads strippage.


Whichever bolt is used, use anti-seizure on its threads, and torque to proper setting.
Using the proper 12mm-head bolt with the proper wrench & torque is the correct method.


Insider note: in 1969, Honda 750s used an oil filter bolt that required
a 14mm wrench. In January 1970, Honda changed it to a bolt that used a
12mm wrench, to reduce overtightening damage. Honda Service Bulletin CB750 #13.

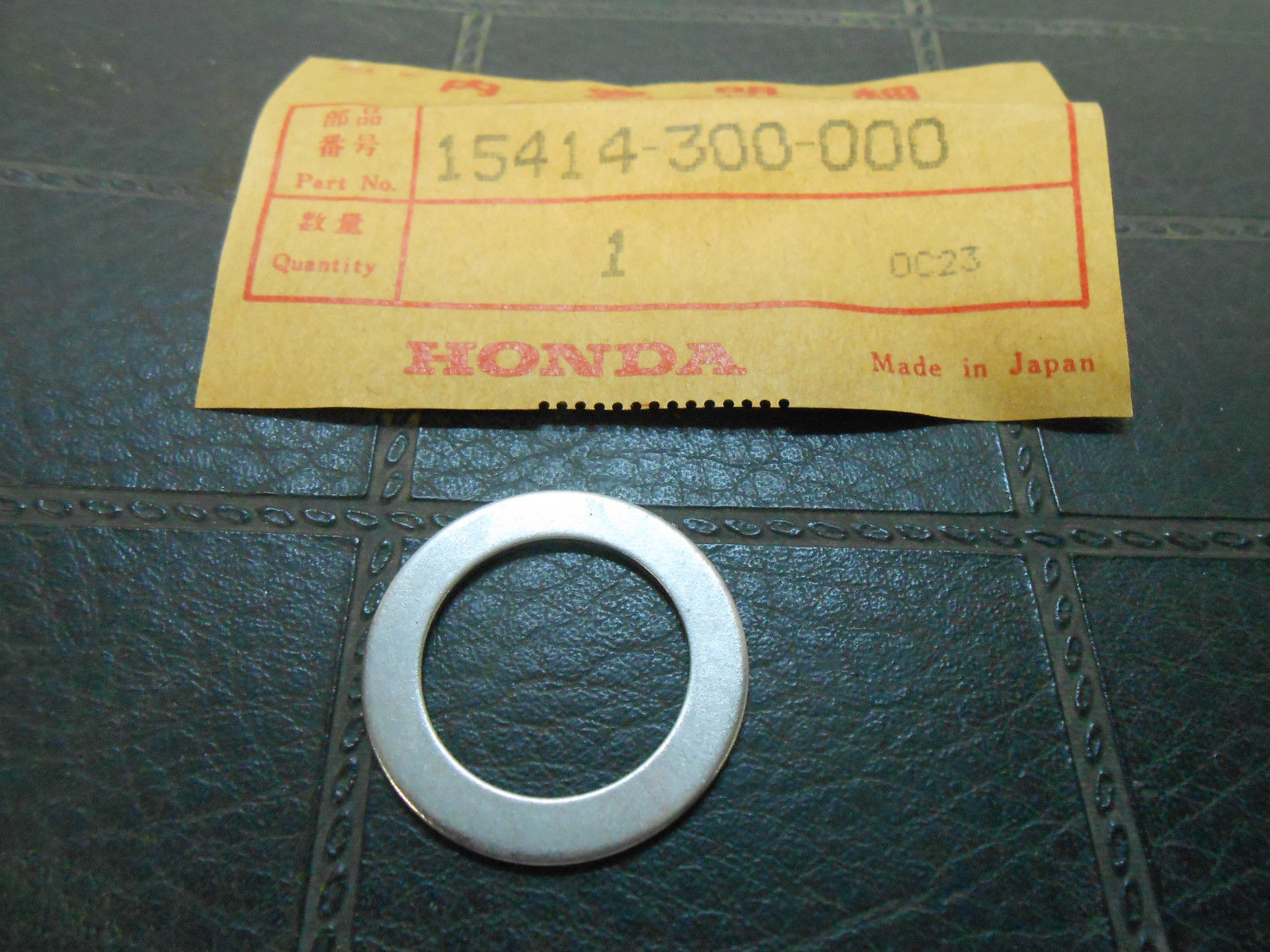

Many forget the correct assembly order:
The filter spring (15415-300-000) around the filter bolt (15420-300-020) goes on
the inserted filter bolt (15420-300-020) BEFORE the washer (15414-300-000) does,
with filter (15410-426-010) put on the bolt last.


Insider tip: That washer might be stuck to the old filter if you don't see it, hidden in a layer of oil.
Filter housing > then bolt > then spring > then washer > then filter > then bolt threads into engine.

Insider tip:
If you strip-out the threads of the crankcase drainplug hole at the bottom of the engine,
the crankcase itself is not damaged-- it's a headache, but you can replace the oil pan.


Insider tip:
Don't use oil that says 'Conserves Energy' or 'Resource Conserving' or 'Energy Conserving'.
Those oils are meant for a car engine that doesn't have a clutch sitting in the same oil as the engine.
They have anti-friction additives that could make the Honda's wet clutch slip.


Insider tip:
Many owners use 10-40 oil, or use 20-50 oil in hotter temperatures.


Note:
There are also 'spin on' external oil filters (like a car uses) available.



Note: Involves transition models. Other part numbers, additional minor variations,
changes and/or crossovers may have occurred within some shown types
.

Entire site and content © Honda750Expert.com


Honda Windjammer white Honda Wixom Honda Windjammer black Honda wixom 750 brown

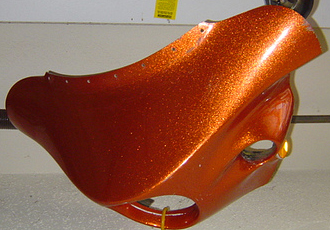

I can also evaluate proper period-correct accessory windshield
systems
of that era (Windjammer, Wixom, Jackal, etc)



 Honda 750 Quick Tip 22
The 3 different US K-model original grip styles used 1969-1978!

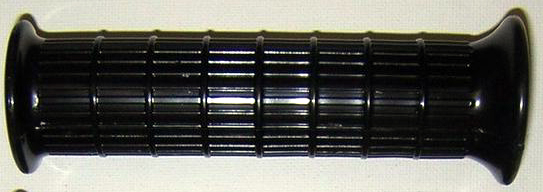

handlebar grip Honda 750 1969-1971     handlebar grip Honda 750 1972-1976     Handlebar grip Honda 750 1977-1978

1969-1971                      1972-1976                       1977-1978


Left (clutch-lever side): 1969-71  95011-14200; 1972-76  53166-342-670; 1977-78  53166-390-780.
Right (throttle side): 1969-71  95011-14100; 1972-76  53165-342-670; 1977-78  53165-390-780.

Note: Involves transition models. Other part numbers, additional minor variations,
changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com
.


gauges CB750 1970 gauges CB750 Honda 1972 gauges CB750 Honda 78

I can also evaluate if gauges are exact proper year (not just close).


Honda 750 Quick Tip 23

Points cover, 1969-1978 US Honda 750 all models K, F, and A


points cover Honda 750 1969-1978        points cover screws Honda 750 1969-1978        points cover gasket Honda 750 1969-1978

Cover: 30370-300-020             Screws: 93700-06032             Gasket: 30372-300-300

Note: other part numbers, additional minor variations, changes and/or crossovers may have occured within some shown or listed types.

Entire site and content © Honda750Expert.com

lower orange 750 Honda rear


Honda 750 Quick Tip 24

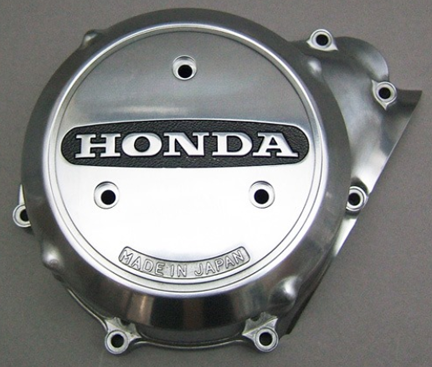

24. Dynamo cover for Honda US 750 K-models 1969-1978


Honda 750 dynamo cover 1969-1978 K-models    screws for 750 Honda dynamo   Honda 750 dynamo washers   Honda 750 dynamo gasket 1969-1978

Sometimes also called an 'alternator' cover or an 'AC generator' cover.

cover: 11631-300-040    gasket: 11397-300-040
the 3 center face
(to field coil inside) screws: 93500-06020     the 3 center face washers: 90425-300-000




Note:

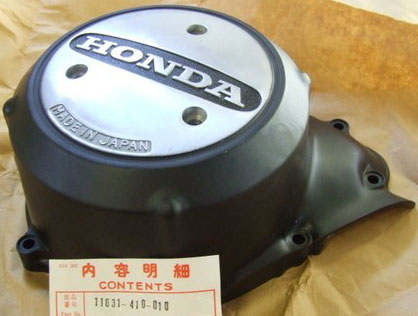

1977-1978 F-model SuperSports used a black cover:

dyno cover 1977-1978 Honda 750F Super Sport

Note: other part numbers, additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.

Entire site and content ©Honda750Expert.com

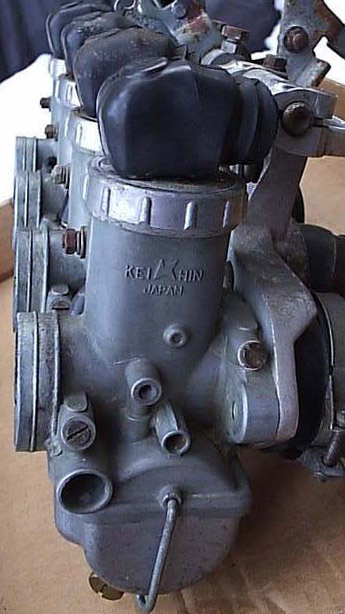

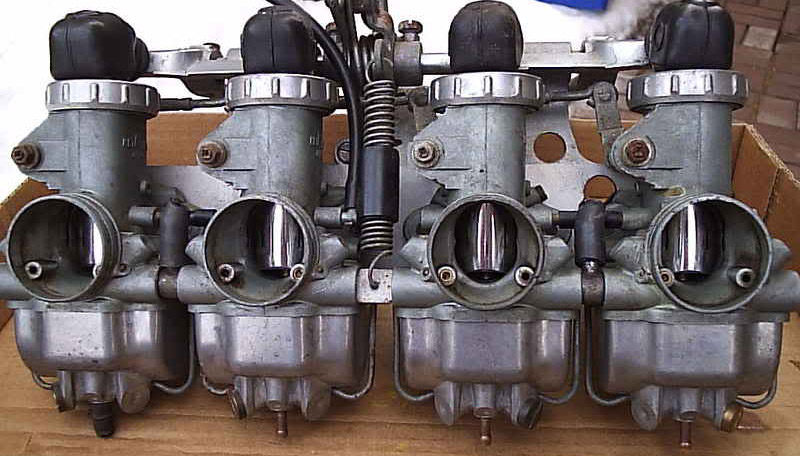

Honda 750 carb Honda 750 carbs
I can also evaluate if carburetion is proper year (not just close).


Honda 750 Quick Tip 25

The 3 chrome tail-light mount shapes, US Honda 750K 1969-78


tail light bracket Honda 750 1969-1971 rear view of Honda 750 brake light bracket 1969-1971                 tail light bracket Honda 750 1972-1976 rear view of Honda 750 tail light bracket                 Tail light bracket Honda 750 1977-1978 side view of Honda 750 1977-1978

1969-1971 pod            1972-1976 bracket            1977-1978 pod

Honda refers to both pod and bracket types as 'Bracket, Number Plate'.

69-71 chrome pod only: 84701-300-671XW       72-76 chrome bracket only: 84701-341-670XW
      77-78 chrome pod onl:y 84700-393-670, superseded by 84700-425-870


Note: Involves transition models. Additional minor variations, part number changes,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com

Honda 750 red 1972  Honda 750 handlebars red


  Honda 750 Quick Test 26

The three Honda 750 horn types US all-models 1969-1978 K/F/A

(older-to-newer from left-to-right)

  horn chrome Honda 750  horn 1975 Honda 750F                    horn Honda 750K 1977-1978  horn Honda 750 A  1977 Honda 750A horn  7  horn 77A Honda 750

  horn 1977-1978 Honda 750 Super Sport F  horn Honda 750F Super sport dual-horn

Top lefts above: chrome-cover type, all 1969-1976 K&F models.
Top rights above: flat silver, 1977-1978 K & A models.

Bottom row photos above: dual-horns a few inches apart from the other,
silver edges with black centers, 1977-1978 Super Sport F-models.



Insider Tip:
The horn used for the first 3,850 US K0-models was gray with a chrome cover.
The next 49,000 US K0-models used black horns with a chrome cover.


horn for Honda 750 K models were gray and black   Honda 750 horns K0 gray and later black
Then horns for all K1 through K6 models were black with a chrome cover.



K-model horn part numbers

K0 (up to frame 1003850): 38100-300-013
K0 (from frame 1003851): 38100-300-023
K1 through K6: 38100-300-023
K7-K8: 38110-392-6213



Insider Tip:
The two horns used together on the dual-horn
77-78 Honda 750-F Super Sport models
were not identical to each other-- one was 'high' note, one was 'low' note.


Insider Tip:
The horn used for the first 3,949 US K0-models was mounted on left side.



Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com

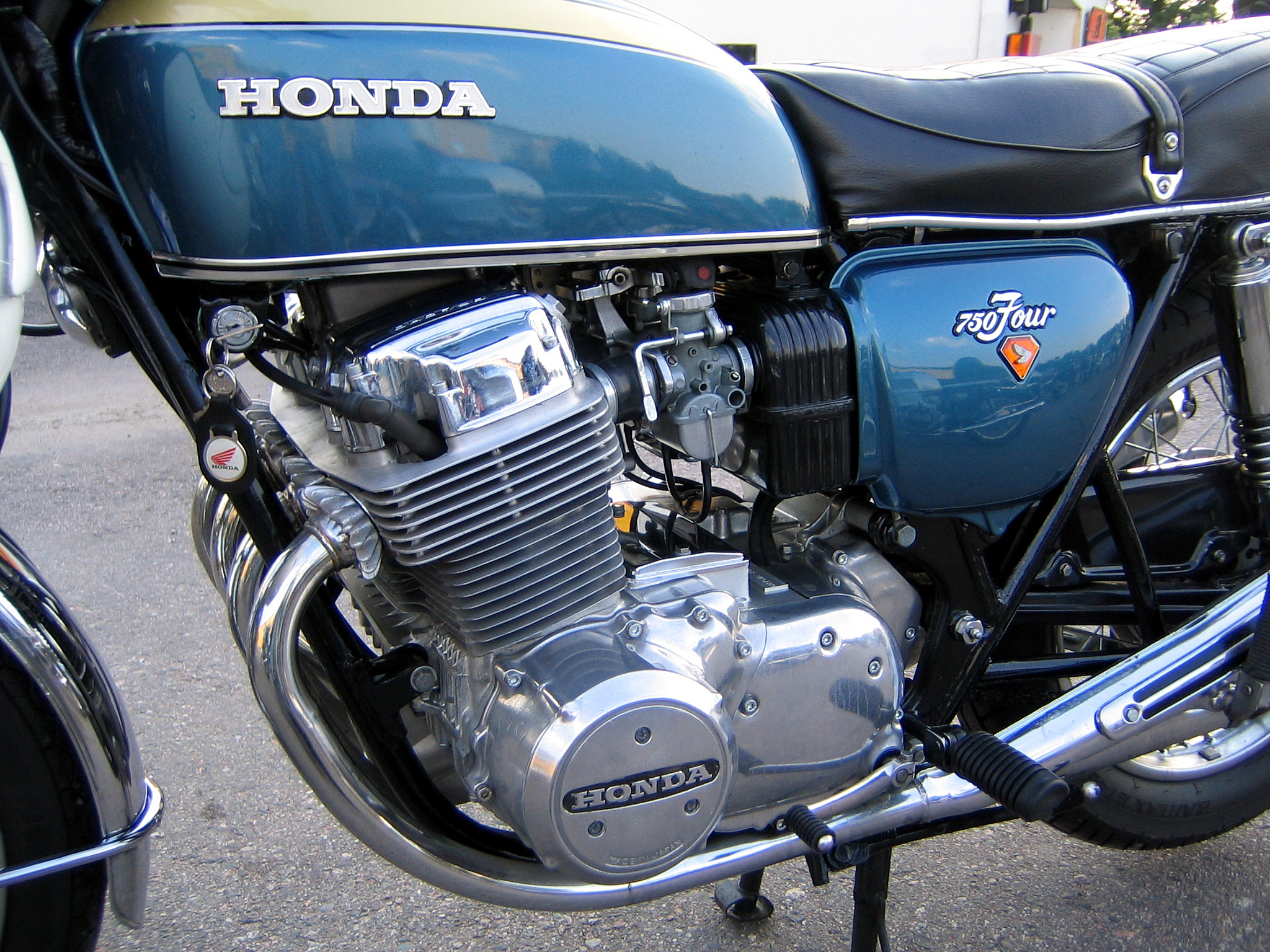

blue Honda 750 pre-73



27 Honda 750 Quick Tip

The 2 carb choke-activation types, Honda 750 K-models 1969-1978

choke lever Honda 750 1969                  choke pull 1978 Honda 750 choke cable Honda 750 1977-1978 choke knob honda 750k

1969-1976: metal lift-up lever, below gas tank, lever pivots on outer carb left (clutch lever) side.

1977-1978: cable 17950-404-670 to new-style carbs, pull-knob is up next to speedometer.



Insider tip: the mount under the choke cable pull-knob for all 1977-1978 models is often
found broke off at its mounting bolt, leaving the choke cable found swinging loose.
This mount is known as 'Stay, Choke Cable', and is part #17951-404-670.

Fits all US models of Honda 750 1977-1978: K,F, and A.

choke cable stay for a Honda 750 K 1977-1978 and 1977-1978 F and A models  choke cable stay for Honda 750 1977-1978 K,A,F



Choke cable, 1977-1978 Honda 750 K and F models: 17950-404-670


Note: other part numbers, additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


Honda 750 1971 gas tank brown rear of 1973 Honda 750 1973

  Honda 750 Quick Tip 28

Which years of 750 K-model handlebars use internal (hidden) switch wiring?


handlebar Honda 750 1969-1976 upper wiring hole    handlebar Honda 750 onternal wiring hole 1969-1976    switch wiring Honda 750 internal wiring Honda 750 bars    1969-1976 Honda 750 handlebar center wiring hole

1969 through 1976 do.


Upper portions of these bars use bar-bottom oval holes to fish switch wiring through the
bars and out the lower center bigger oval and then into the rear opening of headlight case.


Correct bars for 69-76 also have a small hole near each upper oval,
used for switch internal locator pins to lock switches from turning.


Warning: the wiring holes can slice and short wiring if any have sharp edges.

Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


handlebar wiring Honda 750 1977-1978
Bar switch wiring that came from factory fully exposed and black
zip-tied along the outside of the bars is the 1977-1978 K-models.


More handlebar information at Quick Tip 31!


rear fender Honda 750 1970-1971   rear fender Honda 750 1970-1971


  Honda 750 Quick Tip 29 from Honda750ExpertDotCom

"I found 4 different chain guards supposedly for Honda 750.
Which is correct for my US
K-model?"


Black plastic: K-models 1969-1971
Watch for different lengths, hardware, metal stiffener collars under bolt/washers, collared washers, and a
metal stiffener near underside center. Possible different mounting types on the 69-71 K-models on a
year-by-year basis so be sure that separation measurements between all mounting bolt
holes on the replacement chain guard are same as those of mounts on bike.

   plastic chain guard for Honda 750 1969-1971  plastic chainguard stiffener Honda 750

Black metal:
K-models 1972-1976
Watch for different lengths.
Will not directly replace 69-71 plastic as different mounting tabs separation.

Black metal: K-models 1977-1978
Watch for different lengths.

Chrome metal: none came from Honda on 69-78 K-models these years in chrome:
but they did come ONLY in chrome on 76-78 A Automatic and 75-78 F Super Sport models!

chain guard chrome 1978 Honda 750F << (1978 Honda 750F)

However, a K-model chrome chain guard was a then-popular aftermarket accessory model.

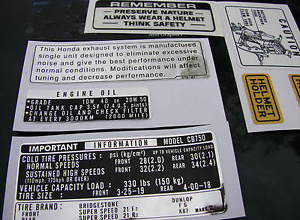

Insider tip: Watch for any correct factory instructional stickers on most model chain guards.
Honda 750 chainguard sticker

Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com

Purple is purple 1974 Honda 750 is Boss Maroon Metallic Boss Maroon Metallic!


  Honda 750 centerstand changes, 1969-1978, honda750expertDotCom

30. The 3 different center stands used

Honda 750 centerstand 1969-1978
for US Honda 750 K-models 1969-1978

(followed by F-model SuperSport and A-model Hondamatic center stand listings)

These are also known as a 'main-stand' and a 'step-stand'
.


1969-1973 US K-models: 50500-300-020
1974-1976 US K-models
: 50500-300-020B
1977-1978 US K-models
: 50500-405-000



Improvements that occured included adding a strengthening portion, and also making a
slightly-larger (10mm) welded metal sheet ground base, both for more stability when using stand.

Many 750s with no center stand had them removed because it was
required to do so to use certain aftermarket exhaust pipes.



Note: if you are replacing a missing K-model centerstand,
there are also several special Honda 750 centerstand 1969-1978 hardware pieces you must use:

'Main stand plate' 50523-300-010 (the crescent-shaped piece)
centerstand curved plate cb750 Honda
'Main stand pipe' 50526-300-000 (the pivot pipe)
50526-300-000 centerstand pivot pipe
2.5mm cotter pin 94201-25300 (at end of the pivot pipe)
Shouldered 8x40 hex bolts 92000-080-400A (pinches mounts around the pivot pipe; needs two)
(bolts superceded by 92101-080-400A)
8mm hex nuts 94001-800-00S (need two)
(nuts superceded by 94030-08000)
Flat 8mm washers 94101-08000 (needs four)

Main spring K0-K5 50522-300-010
(spring superceded by 95014-71700)
Main spring K6 95014-71700
Main spring K7-K8 95014-71702

--and possibly a stopper for when centerstand is in the 'up' position

Spring goes from centerstand to main stand plate; main stand plate hooks to frame.

Insider tip: when the K-model centerstand is 'up' (while riding), it requires a 'stopper', usually found on the left side.
Originally it was a black rubber block on a lower left exhaust muffler.
With custom exhausts it was usually a L-shaped bent piece of metal. Without, the chain often touches the centerstand.



F-model SuperSport center stands
1975: 50500-392-000, superceded by 50500-392-010
1976: up to serial number 2021927- 50500-392-000, superceded by 50500-392-010
1976: after serial number 2021927- 50500-392-010
1977 and 1978: 50500-410-000


A-model Hondamatic center stands
1976: 50500-392-010
1977 and 1978: 50500-393-770


Note: Involves transition models. Additional part numbers, minor variations,
changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


I do appraisals for factory-stock condition;
ratings, assessments, and evaluations only for

Honda 750 exhaust Honda 750 turquoise
1969-1978 Honda 750s: models A, F, and K


  Honda 750 handlebars differences

31. The 4 different factory handlebars used
for US Honda 750 K-models 1969-1978


Honda sometimes calls them 'steering handle pipes'!


(followed by F-model SuperSport and A-model Hondamatic handlebar listings)

Honda 750 handlebar differences 1969-1978

All are 7/8".

(Holes for internal switch wiring 1969-1976; external switch wiring used 1977-1978)


1969-1971 K-model: 53100-300-000
Width- 32 inches     Rise- 5 inches     Pullback- 5.5 inches

       1972 K-model: 53100-341-000
Width- 28.25 inches    Rise- 3 inches     Pullback- 4 inches

1973-1976 K-model
: 53100-341-700
Width- 31 inches     Rise- 4.5 inches     Pullback- 6 inches

      1977-1978 K-model: 53100-405-010
Width- 31.5 inches


Measuring handlebars

(All measurements are made in normal riding position)

Width: Total overall tip to tip width, no grips or bar end weights.

Rise:
Total height measured in a level plane.

Pull Back: Vertical lines from the furthest forward to rear in a level plane.


F-model SuperSport handlebars
1975-1976: 53100-341-700 <same as 73-76 K-models
1977-1978: 53100-410-000

A-model HondaMatic handlebars
1976: 53100-393-000
1977-1978: 53100-393-770

Insider tip: all years used small holes nearly a foot from bar ends for locator pins from the switches.

More handlebar information at Quick Tip 28!

Note: Involves transition models. Additional part numbers, minor variations, changes
and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com

Honda 750 blue 1975 red Honda 750 1975 Honda 750K 77


 Honda 750 insider secret 32

32. Insider Secret:
What the center number in a part number typically
reveals in many US Honda 750 K/F/A model part numbers

300 = generally, this part began or was modified to during 750 K-model years 1969 to 1971
323 = generally, this part began or was modified to during 500 K-model year 1973
333 = generally, this part began or was modified to during 350-Four model year 1973
341 = generally, this part began or was modified to during 750 K-model years 1972 to 1976
392 = generally, this part began or was modified to during 750 F-model years 1975 to 1976
393 = generally, this part began or was modified to during 750 A-model years 1976 to 1978
405 = generally, this part began or was modified to during 750 K-model years 1977 to 1978
410 = generally, this part began or was modified to during 750 F-model years 1977 to 1978


Example:
CB750 1973-1975 left-side mirror: 88120-333-000
This 73-75 750 mirror's 333 center number indicates that this mirror was
first designed for or used on the smaller Honda 350-F four-cylinder model.



Insider tip: 'model year' often starts many months before 'calendar year' starts.

Insider tip: In some states, on the ownership titles of many Honda 750s,
the year of first sale is often used as the bike's year,
not necessarily the same as its true model year.




Note: Involves transition models. Additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types
.
Entire site and content © Honda750Expert.com

 Tip 33 Honda 750 Expert dotcom

33. Seat-latch types US Honda 750 K 1969-1978

They used from simple latching types at first, then seat key lock
types that matched the fork lock key and ignition switch key.


(Generally older-to-newer
pieces from left-to-right; numbered to assist with describing by phone)

1.seat latch chrome Honda 750 chrome early    2.seat latch Honda 750 1971    3.seat latch Honda 750 1971    4.honda 750 seat latch with label 72-76    5. seat latch 1972-1972 Honda 750    6.honda 750 seat latch plunger with label

Earliest models: look for different levers, catches, springs, hooks, pull directions, latches.
1971 was considered a 'transition' model, from latch style into key style.
Most seat key models match the fork lock key and ignition switch key unless past singular replacement. Often available as a matching set.
Minor continual small changes caused many year-to-year part numbers to be 'superseded by' one or more new part numbers.
Simple non-key latch models were 1969 into 1971. All 1972-1978 K-models were seat key-lock models.
Terminology: the newer-style 'spring plunger' is known to Honda as a 'seat lock bar assembly', the key portion known as 'lock assembly'.


Upper and lower latches on seat latch on frame of 1971 gold Honda 750   seat latch 1971 Honda 750 gold an early 1971 Honda 750


Some past used seat latch/lock part numbers:
69-70 77230-300-000    70-71 'transition' 77230-300-010
72 'plunger' 77220-340-011 but later superseded by 77220-340-010
72 lock assembly 77230-340-013 but later superseded by 77230-347-003
73-76 'plunger' 77220-340-003 but later superseded by 77220-340-010
73-76 lock assembly 77230-107-711 but later superseded by 77230-107-711
77-78 'plunger' 77220-340-003 but later superseded by 77220-340-010
77-78 lock assembly 77230-399-007P



Lower and upper latches on a seat lock Honda 750 72-78 1972-1976 Honda 750


 Note:
On 69-76 K-models, the seat latch is on the left (clutch lever) side.
On 77-78 K-models, the seat latch is on the right (brake lever) side.


Note: Involves transition models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types
.
Entire site and content © Honda750Expert.com


 Honda 750 brake pedal insider 34

34. The 3 brake pedal differences
US Honda 750 K-models 1969-1978

later model Honda 750 brake pedal wirg adjust ment stop, 72-76

(followed by F-model SuperSport and
A-model Hondamatic brake pedal listings)


QUESTION: "After right-side crash damage, I replaced the brake pedal with a used one.
I now find it doesn't have the horizontal piece used for the pedal adjustment/stop-screw.
Weren't all-year K brake pedals the same as my US 1974 Honda 750K?"


ANSWER: No- your replacement is lacking the tab pointing most-upward in this photo: break pedal stop on Honda 750 brake lever
(the tab points horizontally inward toward the bike when pedal is installed;
see actual tab wear-spot from adjuster stop-bolt on this photo looking down from above it).

Stop-bolt and locknut is Honda 750 brake pedal stopper seen in background.

All years had a vertical (upright when on bike) piece with a hole for the pedal return spring.
But until into the K-1 model towards K-2, there was no brake pedal adjuster or stop screw, so no horizontal tab.
Summary: there were three different types 69 through 78. 1977-1978 pedals were different in multiple ways.

brake pedal, early Honda 750, no adjuster
   later model Honda 750 brake pedal wirg adjust ment stop, 72-76    brake pedal Honda 750 77-78

K 1969-1971  46500-341-000         K 1972-1976  46500-341-670         K 1977-1978   46500-405-010


F-model SuperSport brake pedals
1975-1976: 46500-392-000
1977-1978: 46500-410-000

A-model HondaMatic brake pedals
1976: 46500-393-000
1977-1978: 46500-393-771


Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


honda 750 seat open battery 1971


 Honda 750 quick tip 35 Honda750Expert

35. Of the 16 paint color choices,
which was the most-often available paint color choice
for US Honda 750 K-models 1969-1978 when they were new?


While 11 colors were issued as a choice
in the US for one K-model year each
(Candy Blue Green 1969/70 color codes AZ and PB2C; Valley Green Metallic 1971 color code EF;
Candy Garnet Brown 1971 color code EE; Briar Brown Metallic 1972 color code LU;
Candy Buccus Olive 1973 color code LY; Maxim Brown Metallic 1973 color code QQ;
Freedom Green Metallic 1974 color code TC; Boss Maroon Metallic 1974 color code TD;
Flake Apricot Red 1975 color code UE; Planet Blue Metallic 1975 color code MV;
and Antares Red 1976 color code R-6C-S).

and 4 colors were available in the US for two K-model years each
(Candy Gold 69/70-71 color codes CQ and Y2C; Candy Ruby Red 69/70-71 color codes CM and R4C;
Excel Black 77-78 color code NH-57 or ZB; and Candy Alpha Red 77-78 color code R-9C-S or ZA),

only one color was offered as a choice for three full model years:



Flake Sunrise Orange  side cover Honda 750 flake sunrise orange  1972, 1973, and 1974.

Color code LV.

Perhaps it was popular because it had 'bigger sparkles' than all the color choices available before it.
Flake Sunrise Orange used a Candy Orange topcoat color over a FLAKE Silver basecoat;
the other 'metallic' colors instead used the 'smaller sparkle' METALLIC Silver basecoats.

flake orange gas tank Honda 750 1972 <1972   Flake Sunrise Orange  1973-1974> flake orange Honda 750 gas tank 1973 1974

In this entire 10-year K-series, only one other US-available color choice offered
when new used the bigger FLAKE basecoat under the color- 1975's Flake Apricot Red (below):


flake apricot red Honda 750 1975 gas tank

Both of these 'Flake' colors seemed extra sensitive to sun-fading damage on the tank-top.



More paint/color information at Quick Tip 46 and Quick Tip 146!

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com

  Honda 750 tip 36

36. Only two different swingarm grease fittings/nipple types and
locations were used on Honda 1969-1978 US 750 K-models
. . . and that helps eliminate some of the wrong
choices when buying a used K-model swingarm.


(followed by F-model SuperSport and
A-model Hondamatic swingarm listings)

swingarm grease fitting 1969-1975 grease nipple Honda 69-75 Honda 750 with label              grease nipple Honda 750 76-78 swingarm grease nipple Honda 750 1978 swingarm

Above/Left:
1969-1975 US K-model swingarms used two straight push-in 4.5 grease fittings,

one at the each end of the swingarm pivot bolt ends
(see above left, to rear of rear brake light foot switch).
Some choose to instead thread the holes and then use automotive fittings.
No grease fitting was actually on the black swingarm itself.
A push-in grease fitting is 96201-30001
.

Above/Right:
1976-1978 US K-model swingarms used one bent-angle screw-in
grease fitting,
threaded into the bottom side center of the swingarm (see above right).
This threaded bent-angle grease fitting is 96201-80001
.


Before you change a swingarm,

usually you'll find that the old  Bushing Honda 750 swingarm 1973  brone bushings Honda 750 swingarm only needs bushings.


But sometimes you will need a swingarm.


Honda 750 swingarm 1971

However, there were 5 different K-model swingarms used
to measure & compare during those 10 years!


1969-1970 K-model swingarm: 52100-300-030B
1971 K-model swingarm: (a 'transition' model) 52100-300-050B
1972-1975 K-model swingarm: 52100-341-0000B (last of the dual push-in grease nipples)
1976 K-model: 52110-341-900ZA (a single threaded grease nipple on swingarm)
1977-1978 K-model: 52100-405-000ZA
 (a single threaded grease nipple on swingarm)


F-model Supersport swingarms:
75-76F 52110-392-000ZA
77-78F 52100-410-000ZA

A-model Hondamatic swingarms:
76A 52110-393-000ZA
77-78A 52100-405-000ZA



Note: Involves transition models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com



 Honda 750 kickstand differeces 37 Honda750Expert

37. Salvage-yard and Internet searchers:
there were 4 different kickstands
used on US K-model 750s 1969-1978!

(followed by F-model SuperSport and A-model Hondamatic kickstand listings)

1969-1972 K-models: 50530-294-000
(was superseded by 50530-341-670, the 73-74 750 kickstand)
  1973-1974 K-models: 50530-341-670 (kickstand below in red block)


   kicksnd Honda 750 1973

(Based on part numbers and supercede numbers, it appears that one kickstand,
50530-341-670, can be used by Honda 750 K-models
1969-1974).

1975-1976 K-models
: 50540-341-670 has a rubber kick-up extension
1977-1978 K-models
: 50540-405-010 also has rubber kick-up extension (kickstand below in photo)


kickstand Honda 750 197701978



The 'rubber kick-up block' used 1975-1978 is the
same part-number each of those years: 50548-356-700
.

kickstand rubber 1975-1978 Honda 750   Honda 750 kickstand rubber for 1975-1978



Even better, the same kickstand ('sidestand bar') 10mm x 1.25 pivot
shoulder bolt and its 10mm-thread nut can be used the entire series:


kickstand pivot bolt Honda 750          kickstand nut Honda 750

kickstand (side-stand bar) 'screw' (kickstand pivot bolt): 90108-283-000
,
and its side-stand nut: 94031-10000 or 94031-110000
.



Springs: 1969 through 1978 used at least 4 different Honda 750 kickstand spring 1969-1974 K-model kickstand (sidestand) spring part numbers:

Spring K 1969-1974 is usually 95014-72400, and that spring is usually superseded by 95014-72401;
about 1975 is spring usually 95014-72401 and that is usually superseded by spring 95014-72402, and
spring K 1977-1978 is usually 95014-72402. Older numbers were also used on many other different Honda motorcycles.
Compare all lengths and designs. Used springs might be stretched a bit over years of use.




F-model Supersport kickstands:
75-78F 50540-390-000

A-model Hondamatic kickstands:
76A 50531-393-000
77-78A 50531-393-770ZA



   Insider tip: some older 750K kickstand part numbers were
also the same used on some smaller Honda motorcycles.


 Insider tip: a suspected-bent kickstand sometimes isn't bent;
the landing of the kickstand can also be affected by
1) fork tube length different from stock, 2) rear shocks different length from stock,
3) tire height different from stock, and 4) rear wheel change from stock.


Insider tip: the kickstand pivot bolt threads into 2 things--
the kickstand's threads, and into the nut.


Insider tip
: if you find a used kickstand marked Honda 750 but it has a top hole or pivot link
or it has unusual notch or hardware at its top, it likely has come from a 'Hondamatic' model--
that kickstand going down also puts the 'automatic' transmission in neutral!
(below in green blocks)

Honda 750 Hondamatic kickstand   Hondamatic kickstand Honda 750

Note: Involves transition models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com

 Honda 750 quick tip 38 mirror differences

38. Follow the history of the 5 main different mirror models
used on US K-model 750s 1969-1978!

(followed by F-model SuperSport and A-model Hondamatic mirror listings)

Almost any set, original or a 10mm x 1.25 -threads upstalk aftermarket, will work
for almost any 750K year (except for the first 302 K0 models, which used 11mm).
Year by year, watch for changes to length of stems
(7", 8", etc) and to diameter of round portions (4", 4 1/2", etc).
Some look like the mirror glass is glued in, others look
like a rubber lipseal is holding in the mirror glass.
Watch for frozen pivot areas.

But for collectors and restorers, here is a good general guide.


#1. The 69-70 750K 'acorn-nut clamp' model, AKA:

'the first design', or mirror Honda 750 1969 acorn 88110-300-000   mirror acorn Honda 750 1969-1970 the 'K-0 type'.

1969-1970 right-side acorn-nut clamp model, 88110-300-000
1969-1970 left-side acorn-nut clamp mirror, 88120-300-000


The smallest mirror glass diameter.
Watch for different words, logos and other by acorn nut on backside of original mirrors.
Several changes. Watch for replicas. Watch for different upstalk lengths and glass diameters.

Soon later, Honda stopped offering the 69-70 left acorn-nut mirror,
superceding (replacing it) with the 69-70 right-side mirror's part number.
This only worked because you can loosen the clamp-nut and then
flip the mirror around, making a right-side mirror also become a left side mirror!

Known as a 'transition model'.


Insider Tip:
The first 302 bikes used 11mm thread; after that, 10mm.



#2. Next came the 1971-1972 750K mirrors. No more 'acorn nuts'.

1971-1972 right-side mirror: 88110-074-000, it later superseded by 88110-329-730.
1971-1972 left-side mirror: 88120-074-000, it later superseded by 88120-329-730.


Insider tip:
This model mirror was used new on many other models,
including Mini-Trails and small-cc trail bikes!



#3. The 1973 through 1975 750K mirrors.
Bigger mirror glass diameter.

1973-1975 right-side mirror: 88100-333-004, it later superseded by 88110-333-611.
1973-1975 left-side mirror: 88120-333-004, it later superseded by 88120-333-610.


 Insider tip:
The 73-75's 333 center number indicates this one was
first designed for a smaller Honda (350-F) four-cylinder model.
And its 333-610 superseding number is to the 1976-1977 750 mirror!



#4. The 1976-1977 750K mirrors.

1976-1977 K-model right-side mirror:
3 part numbers, final superseding to 88100-333-611.
1976-1977 K-model left-side mirror:
3 part numbers, final superseding to 88120-333-611.



#5. End of the era: the 1978 750K mirrors.

Honda 750 mirror 1978

1978 K-model right-side mirror: 88110-333-611.
1978 K-model left-side mirror: 88120-333-611.



F-model Supersport mirrors:
75-78F right-side mirror 88110-333-611

75-78F left-side mirror 88120-333-611

A-model Hondamatic mirrors:
76A right-side mirror 88100/88110-375-770

76A left-side mirror 88110/88120-375-770
77/78A right-side mirror 88110-333-611
77/78A left-side mirror 88120-333-611

Note: Involves transition models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 39 Honda 750 quick tips

39. Watch when buying used front sprockets:
there were two completely different methods used
to retain Honda US 750K
front sprockets to the shaft;
530 sprockets from 1969-1976 sprockets use one way,
630 sprockets from 1977-1978 use the other.


1969-1976 530 front sprocket type front sprocket Honda 750 1969-1976  front sprocket fixing plate Honda 750 1969-1976Honda 750

(above and below photos chosen for ease of showing sprocket-trapping comparison only, as 1969-1975
automatic chain oiler Honda 750 was used 1969-1975   chain oiler Honda 750 1969-1975
models also had some automatic chain-oiling hardware similar to this above at/in this end of shaft)


1977-1978 630 front sprocket type front sprocket Honda 750 1977-1978  8mm washer  front sprocket bolt  Honda 750 1977-1978 Honda 750


1969-1976 front sprockets were trapped on the shaft by a retainer known as a 'fixing plate' using two 6mm hex bolts.
The fixing plate matched a grove on the shaft; then slightly turned like a key; the two 6mm hex bolts into the sprocket locked it in place.
This same front sprocket retainer, 23811-292-000, was used on many other older Honda street & dirt bikes.
However, at least three different length 6mm hex bolts were used through the years, including:
some 1976 models used 12mm long, 920000-6012, superseded by 92101060120A, and some 1972 models used 12 mm or 16mm long.

1977-1978 front sprockets were trapped on the shaft by a flat washer bearing an 8mm hole
and an 8mm bolt (possible different lengths) with lock washer, the bolt threaded into the center of the end of the shaft
(possible now because past automatic chain-oiling parts stopped using these threads since 1976).
The 8mm flat washer is 90401-405-000, the 8mm X 20mm bolt used at least one year was 93402-0802000.

Both types will actually slide onto any year shaft.


Note: Involves transition models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


1978 Honda 750F clean


Quick Tip Honda 750 1969-1978 Honda 750 tip 40

40. "A previous owner moved the ignition key on my US 1974 Honda 750K up to the handlebar.
What
ignition switch bracket is needed to move it back to the correct under-tank location?"


After-market mounts can stretch wires
Honda 750 ignition switch relocator  aftermarket key relocator for Honda 750
and keys then often cause paint damage.




All K-models 1969 through 1976 ignition switch bracket Honda 750 1969-1976 used bracket 50375-300-000A.

50375-300-000A bracket above is shown upside-down of its installation position under left side of tank.


ignition switch location Honda 750 1969-1976K

It also needs hardware pieces including: a barrel-shaped spacer 'collar' 50377-300-000; an 8mm x 40mm hex shouldered bolt 92000-080-400A,
superceded by 92101-080-400A; and 8mm flat washer 94101-08000. Nut is part of the black bracket. Remove tank to install.


ignition switch hardware Honda 750

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com

Quick Tip Honda 750 1969-1978 Honda 750 muffler exhaust tip 40

41. Looking at some used stock exhaust pipes for a US Honda
750K somewhere between 1969 and 1978?
Knowing these three
Honda exhaust code numbers
will help eliminate some wrong choices.


1.Honda 750 exhaust 300 Honda 750 300 baffles          2. Honda 750 exhaust 341 Honda 750 exhaust 341 baffles        3. Honda 750 exhaust 405 Honda 750 exhaust 405 baffles 1977-1978

1. 300 series, Honda 750K 1969-1971
--Clamps on at engine--
Some of the earlier ones had
removable baffles and no 300 marking

Said to have the best chroming
Said to be less restrictive than 341 series
Said to need carb rejetting if used to replace 341s
Heat shields on upper pipes
300s are rarest and most valuable to collectors
Can use a full set of 341s instead on 69-71
but will lower value to a sharp collector

Other minor variations
A transition year

2. 341 series, Honda 750K 1972-1976
--Clamps on at engine--
Quieter than the 300 series
Reproductions available
Said to be more restrictive than 300 series
Said to need carb rejetting if used to replace 300s
Watch for clogged drain holes and rusted areas
Heat shields on upper pipes
Various baffle changes

3. 405 series, Honda 750K 1977-1978
--Clamps in at engine--
No heat shields
Reproductions available
If wanted to be used to replace 300s or 341s
(to use these later model pipes on an older bike),
see Quick Tip 92
for some of the hardware differences used to connect to engine head;
and custom mounting would be needed at muffler end.





The end-caps seen at exhaust rear are known as 'exhaust diffusers':

Honda 75o diffuser 1969-1971    diffuser Honda 750 1969-1971                        Honda 750 diffusers   Honda 750 diffuser 1972-1975

Most 1969-1971 US Honda 750K models use diffuser 18311-300-320 (above left).

1971/1972 was a transition period.
Most 1972-1975 US Honda 750K models use diffuser 18311-341-900 (above right).


If you do not require stock exhaust, there are many
4-into-2 and 4-into-1 exhaust systems available.

More exhaust information at Quick Tip 50, Quick Tip 92 and Quick Tip 143!



Note: Involves transition models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 carburetor identification differences 1969-1978

42. Buying a used set of carburetors to replace
those on a 1969-1978 Honda 750 US K-model?
This section is not all-inclusive, but will help eliminate some wrong choices.


1. Honda 750 carburetor 1969     2. Honda 750 carb Honda 750 carbs     3. carburetor Honda 750 1978 K

Three main types:

1. 'round-top'-type carburetors that use one handlebar throttle cable into
4-separate cables to operate the carburetors (earliest, 1969/70),

2. 'round-top'-type carburetors that uses a somewhat push-pull dual-cable system using
a bar system with metal lifters to raise the carbs together (most common type, 1971/1976), and

3. new 'PD' shape, they use an accelerator pump (newest, 1977-1978).

Then there are differences within those types themselves.



Type 1:
--1969/1970
--uses a choke lever mounted at the left-most carburetor
--float bowls clamp on/tight with a large spring clip
--ID casting numbers on a flat upper horiontal area
--ID casting numbers have included 7A
--different jets sizes and needle settings used to match
exhaust pipes used and engine parts/settings used
--some earliest castings may have no number

Type 2:
--1971/1976
--uses a choke lever mounted at the left-most carburetor
--float bowls clamp on/tight with a large spring clip
--ID casting numbers on a flat upper horizontal area
--ID casting numbers include 657A (usually 1971?), 657B
(most common, usually 1972-1975?), and 086A (1976?)
--Beginning 1976, concessions to EPA (smog/pollution)
include a tiny cap to limit a previously adjustable portion
--different jets sizes and needle settings used to match
exhaust pipes used and engine changes/parts/settings used each year

Type 3:
--1977/1978 750 K-models
--uses a choke cable mounted with pull-knob near speedometer
--float bowls use screws to secure to carbs
--accelerator pump on the #2 float bowl
--ID casting numbers on a vertical flat spot above float bowl
--ID casting numbers include 41A, PD41, PD42 and PD42B
--Concessions to EPA (smog/pollution) include leanness and some previously
user-changeable portions are now no longer removable or adjustable

--needle clip in 77 carb is adjustable but not in 78 carb
--have a '77F with PD42B carbs
--PD41 carbs most often from K7 models; PD42 carbs most often from K8 models.


Compare for different linkages, return springs, and locations of gas inlets and springs.

1969-1974, the gas tank fed the carbs from right side. The petcock had two fuel lines to the carburetors.

Beginning 1975, the gas tank fed the carbs from left side.

This newer petcock had one fuel line, that went to a fuel-line tee, then two fuel lines to the carburetors.


Some castings have different number
but are the same except for original jetting.


Different float types such as brass and plastic.
Inspect them for damage or pinholes.



 Insider tip: while carbs marked 'PD43A' and 'PD44A' look like the 'Type 3' carbs listed above,
they really are only for the Hondamatic models, are smaller, and are lower-performance.


carb set

| Insider tip: Some owners of A-model Hondamatic 750s replaced
their carbs with the 77-78 K's slightly larger PD carbs,
but not necessarily for better performance!
They often do this change only
because NO factory replacement
rubber carb boots (connecting the
carbs and the engine head)
are available for Hondamatic carb sets.

VINTAGE CB750 has remanufactured these
A-model rubber boots and sells a set for about $100.

The original Hondamatic carb boots become
hardened and allow intake air leaks.

(QuickTip 53 has more info about carb boots)
Also, some A-model owners have changed over
to older round-top K-model carbs and boots.





Honda part numbers for some complete
K-model 4-carb carburetor assemblies:
K6 16100-300-671
K5 16100-300-670
K4 16100-300-034
K3 16100-300-034

Insider Tip: Honda lists the same part number for complete 4-carb
carburetor assemblies for K3 and K4 models: 16100-300-034.
Complete carb assemblies from all other years
each had its own assembly part number.

Insider Tip: part numbers for complete 4-carb carburetor
assemblies for K7-K8 models have a -405- center number.



Note: This section is not all-inclusive to carb variations. Additional minor variations, internal variations,
different part numbers, changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 rear fenders 1969-1978

43. Looking for a chrome rear fender to replace
one on a 1969-1978 Honda 750 US K-model?

Honda had 4 different variations. Many for sale, new and used, on the Internet.


rear fender Honda 750 1970-1971      rear fender Honda 750 1970-1971

Honda calls the chrome fender 'Rear Fender A';
'rear fender B' is the inner black plastic mud guard.

These are the chrome rear fenders:

1969-1970: (up to serial 1044649) 80100-300-020XW (but this 69-70 rear fender was
superseded by 80100-300-020XW, which is the 1971 rear fender),
 uses 69-71 small pod taillight.


--rear fender, Honda 750 rear fender 1969-1971 1969-1971--

1971:
(from serial 1044650) 80100-300-030XW, uses 69-71 small pod taillight.

1972-1976
: 80100-341-000, uses 72-76 large bracket taillight.

--rear fender,  Honda 750 rear fender 1976 1972-1976--

1977-1978:
80100-405-000, uses 77-78 large pod taillight.


--rear fender, Honda 750 rear fender 1977-1978 1977-1978--

Note: rear fenders use hardware and various rubber/plastic grommets/guides.

Note: Involves 'transition' models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 front fenders 1969-1978

44. Looking for a chrome front fender to replace
one on a 1969-1978 Honda 750 US K-model?

Honda had at least 4 different variations.
Many for sale, new and used, on the Internet.




1969: (up to serial 1015592) 61100-300-030XW earliest model. with at least one sharp non-rolled edge
(superceded by 61100-300-030XW, which is the 1970-through-early-1972 front fender),
earliest had no hole for grommet, uses a forward hoop and a rear hoop.


1969 Honda 750 front fender

1970 through early 1972:
(some through serial 2093730) 80100-300-030XW, uses a forward hoop and a rear hoop.


Late 1972 through final 1976
: 61100-341-700XW, uses a forward hoop and a rear hoop.

(Late 1972 through final 1976  Honda 750 front fender 1973-1976 K-model front fender)

  --Late 1972 through final 1976 Honda 750  Honda 750 K front fender 1972-1976 K-model front fender--


1977-1978:
61100-405-000, uses only a rear hoop (77-78 are the only K years with no forward hoop).


(1977-1978 Honda 750  Honda 750 K 1977-1978 front fender K-model front fender)

Note: front fenders use various hardware changes and rubber/plastic grommets, hose routing,
solid mount vs rubber mount, spacers and speedo cable guides. Measure and compare mount holes.
Some used isolators. Different fork leg years have different front fender mount patterns.


Note: Honda refers to the chrome mounting hoops as fender 'stays'.

Insider tip:
No US F-model SuperSport or A-model Automatic
Honda 750 used a forward hoop on its front fender.


Note: This is a general guide. Involves 'transition' models. Additional minor variations, different part
numbers, changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com

Quick Tip Honda 750 1969-1978 Honda 750 rear brake shows 1969-1978 tip 45

45. Which rear brake shoe part number can work for any US 750 K-model 1969-1978?

Honda 750 rear brake panel         Honda 750 K 1969-1978 rear brake shoe         Honda 750 rear brake panel inside

43120-393-006. You need two of them.

While various years first used different rear brake shoe part numbers
(1969 through 1976: 43120-300-010, 1978: 43120-393-003),
all eventually were superseded to 43120-393-006.

Note: Involves transition models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


top view of Honda 750 engine


Quick Tip Honda 750 1969-1978 Honda 750 color codes

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

46.
"I'm trying to buy a used original-paint gas tank or side covers on the Internet,
but instead of telling the colors, some only show
'color code' letters after the part number.

What are the US Honda 750 'color codes' for factory-painted parts?"


Honda 750 color codes

Here are our most-often searched color codes for US K, F, and A model parts:


1969-1970 US K-models
Candy Blue Green: color codes AZ and PB2C
(example of a Candy Blue Green part Honda 750 color code AZ showing 'AZ' color code)
Candy Ruby Red: color codes CM and R4C
(example of a Candy Ruby Red part Honda 750 color code CM red showing 'CM' color code)
Candy Gold: color codes CQ and Y2C
1971 US K-models
Valley Green Metallic: color codes EF and G21M
Candy Garnet Brown: color codes EE and YR2C
Candy Gold: color codes CQ and Y2C
Candy Ruby Red: color codes CM and R4C
1972 US K-models
Brier Brown Metallic: color codes LU and YR15MC
Flake Sunrise Orange: color codes LV and R2CF
1973 US K-models
Flake Sunrise Orange: color codes LV and R2CF
Candy Bacchus Olive: color codes LY and G5WC
Maxim Brown Metallic: color codes QQ and YR20MC
1974 US K-models
Freedom Green Metallic: color codes TC and BG1M
Flake Sunrise Orange: color codes LV and R2CF
Boss Maroon Metallic: color codes TD and RP9M

1975 US K-models
Planet Blue Metallic: color codes MV and PB27MC
Flake Apricot Red: color codes UE and R5CF
1975 F-model SuperSports
Flake Sunrise Orange: color code R2CF
Candy Sapphire Blue: color code PB3CC

1976 US K-models
Candy Antares Red: color code R-6C-S
1976 US F-model SuperSports
Sulphur Yellow: color code Y34
Candy Antares Red: color code R6CS
1976 US Automatic A-models
Muscat Green Metallic: color code G38MS
Candy Antares Red: color code R6CS

1977 US K-models
Excel Black: color code NH-57
Candy Alpha Red: color code R-9C-S
1977 US F-model SuperSports
Black: color code NH1
Candy Presto Red: color code R8CS
1977 US Automatic A-models
Candy Sword Blue: color code PB7C
Candy Presto Red: color code R8CS

1978 US K-models
Excel Black: color code NH-57
Candy Alpha Red: color code R-9C-S
1978 US F-model SuperSports
Black: color code NH1
Candy Presto Red: color code R8CS
1978 US Automatic A-models
Candy Polaris Blue: color code PB100CS
Candy Alpha Red: color code R9CS


Note: Most of these internal Honda color-codes are not
matchable to numbers used by current paint manufacturers,
but there are some paint manufacturers that now have
paint ready to match the original colors.


More paint/color information at Quick Tip 35 and Quick Tip 146!

Note: Involves transition models. Additional minor variations, different part numbers,
changes and/or crossovers may have occurred within some shown or listed types.

Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 ID plates
47. US year model is identified by a metal tag on the frame
head in front of the gas tank on the right side.

Top-right corner of tag on examples below
has the month & year of manufacture.


Honda 750 VIN plate location

Honda 750 1971 VIN   Honda 750 VIN 1971
Honda 750 VIN 1973   Honda 750 vin 1975

Note: in some states, state ownership titles used the year of sale as the bike's year model.
So, for example, some 1972 Honda 750 ownership papers list it as a 1973 model.


Note: involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.

Quick Tip Honda 750 1969-1978 48 Honda 750 insider tips

(This is a question we occasionally receive)

48. "I know that sometime in 1972, Honda made little-known restriction
changes to the bottom half of the US 750 air-filter case 'cover' (bottom half).
It made the air intake reduced, via baffling, this restriction to
supposedly to reduce the audible sound of air suction 'intake roar'.
Besides less power, my '74 750 does not have the clean 'intake sound' that my older 750s did.
So, I want to know the part number for the bottom half
of a 1971 air-filter case so I can compare and/or modify.
It would be ribbed black. Not a '69 or '70 bottom half, those are color-matched and different.
And not a '341' part-number case, that is the late '72 and newer restricted model."


Honda 750 1971 air filter bottom

Seems that the 1971 K1 part number might be 17231-300-030B.
However, many used '300' parts for sale used on the Internet are really '341' parts--
the sellers
sometimes used quick or weak research to help list their parts for sale,
sometimes using wrong part numbers.



Here is a general list of K-model air filter housing bottoms: (known as 'covers')
K0 1969-1970 year models, housing is often the same color as gas tank and side covers,
through frame #10444649 which is the last K0 frame: 17231-300-020-(color code here).
K1 1971 year model, black only, beginning with frame 1044650 which is the first K1 frame: 17231-300-030B.
K2-K6 1972-1976 year models, black only: 17231-341-010.
K7-K8 1977-1978 year models, black only: 17231-392-000.


 Insider tip: the baffling in your own air-filter case bottom can be modified.
Baffling can be removed (back to old intake roar)
or have holes drilled in baffling (a little more intake roar).
Sound is more noticeable on bikes with fairings or windshields, or when opening the throttle wide.

Insider tip: drilling at the wrong place will allow water in.


For convenience, here is a general list of K-model air filter housing cases (top halves):
K0 1969-1970 year models, housing is same color as gas tank and side covers,
through frame #10444649 which is the last K0 frame: 17214-300-040-(color code here).
17214-300-040AZ: Candy Blue Green

17214-300-040CM: Candy Red

17214-300-040CQ: Candy Gold
K1 1971 year model, black only, beginning with frame
1044650 which is the first K1 frame: 17212-300-030B.
K2-K6 1972-1976 year models, black only: 17212-341-000.
K7 1977 year model, through frame 2731019, black only: 17240-405-305.
K7 1977 year model, beginning frame 2731020, black only: 17240-405-315.
K7-K8 1977-1978 year models, black only: 17240-405-315.


F-model SuperSport air-filter housing bottoms (known as 'covers'):
1975-1978F: 17231-392-000 (same as K7-K8)


F-model SuperSport air-filter housing cases (top halves):
1975-1976F: 17240-392-000, superseded by 17240-392-305

1977-1978F: 17240-405-315 (same as K8 and late K7)

A-model Hondamatic air-filter housing bottoms (known as 'covers'):
1976-1978A: 17231-392-000 (same as 76-78F and K7-K8)


A-model Hondamatic air-filter housing cases (top halves):
1976A: 17240-393-305 (same as 76F supercede)

1977A: 17240-393-770
1978A: 17240-393-771

More air filter information at Quick Tips 2 and 114!

Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


Quick Tip Honda 750 1969-1978Honda 750 gas tank trim

49. There was chrome plastic trim/molding along the bottom edge
of the gas tank
of every 750 K-model 1969-1978.
They are NOT all the same. Below are the three main differences.


1969-1970: chrome plastic trim, all silver chrome (no stripe)
gas tank trim molding Honda 750 1969-1970
gas tank trim gold Honda 750 1969-1970
gas tank molding trim Honda 750 1969-1970 red tank
Trim part number R 17521-300-000 / Trim part number L 17522-300-000
Uses no clips.



1971-1976 K: chrome plastic trim, silver chrome with a full-length black horizontal stripe
gas tank trim Honda 750 1971-1976 blue
Trim part number R 17521-300 (and 341)-010 / Trim part number L 17522-300 (and 341)-010
Uses no clips.



1977-1978 K: chrome plastic trim, all silver chrome (no stripe)

gas tank trim 1977-1978 Honda 750
Trim part number R 17541-405-000 / Trim part number L 17542-405-000
Uses clips 17544-323-000 and 17545-323-010.



Usually, original and reproduction tank trim are both available.

A-model 750 Automatics also used bottom-edge chrome trim on their gas tanks.
But F-model 750 SuperSports did NOT use bottom-edge chrome trim on their gas tanks.


Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.

Quick Tip Honda 750 1969-1978 Honda 750 exhaust heat shield differences

50. There is one muffler heat shield that fits all US Honda 750
K-models 1969-1976 (1977-1978 used no heat shields):


Honda 750 exhaust heat shield 1975 blue Honda 750 1976 red heat shield

18315-300-020 Honda 750 exhaust heat shields

Insider tip: Honda used these polished-with-black heat shields above starting
with
frame #1044650 in September 1970, which was the first US 1971 K1 Honda 750.
But for the earlier 1969/1970 K0 US 750 models,
up to frame #1044649 (the final 1970 US K0 750),
the heatshield used was 18315-300-010: a dull silver finish with black (see examples below):

Honda 750 exhaust heat shield sandcast 1969   Honda 750 heatshield sandcast
This dull 69/70 part was superseded by the 71-76 polished part 18315-300-020.

Note: Honda refers to all US 750 K-model heat shields as 'muffler protectors'.

More exhaust information at Quick Tip 41, Quick Tip 92 and Quick Tip 143!


Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.

Quick Tip Honda 750 1969-1978 Honda 750 uses 5.5 ID fuel line
(This is a question we often receive)

Honda 750 fuel line bad
 fuel line Honda 750
51. "I bought an old US 750K and the
rubber fuel lines from the petcock to the carbs
are destroyed.
My local auto parts store had hose sizes and
clips that didn't feel right. What do I need?"


Using the wrong parts looks bad and can cause trouble. All correct parts are available.

There have been two sizes of fuel line during 1969-1978 US K-models.


SIZE 1, original small fuel line, 5mm, all 69-70 K0 models,
and also for about the first third of the K1 1971 year-model:


The 1969/1970 'K-0" model, and also about a third into the
K1 1971 year model production, used a smaller 5mm size fuel line,
used until frame #1071335 (which was about 1/3 through the K1 model year).
Examples of this smaller fuel line are 95001-50160 and 95001-50280.
A smaller (5mm) retaining clip was used,
'Fuel Tube Clip 5mm' #95002-250000.

Explanation: There were about 77,000 750 K-1 models made.
The first K1 (1971 year model) was frame #1044650.
The smaller 5mm fuel line was continued to be used through
frame #1071335, which means it was used on the first almost 27,000 K1s.
The following next almost 50,000 K1s used the bigger 5.5 fuel line and clips instead--
but the same petcock was used both before and after the change.



SIZE 2, improved larger fuel line,
used for the last two-thirds of the 71 K1 year-models through to the end of 1978 model:


Fuel line: Not the SAE similar-sizes at the auto parts store.
Correct Honda 750 fuel line from gas tank is 5.5 ID   Honda 750 gas line 5.5mm 95001-5500160M
For US Honda 750 models since frame 1071336
(one-third through the K1-model year),
used the 5.5mm ID 95001-5500160M black fuel line,
fresh and pliable, available online and at Honda
dealerships in bulk or by the foot or in pieces.

5.5mm is correct for the 750's brass ports and for the factory clips.
--Not 'clear' fuel line that will quickly harden and split.
--Not wrong size fuel line that might
leak, split, slip off, or collapse at a bend.

--Not 'vacuum' line that isn't fuel-resistant.
--Not hose unrated for heat.



Clips: All 71-78 US K-models since 1971 frame 1071336 (one-third through
the K-1 model year) use clip #9500202100 at the hose piece ends.

Honda 750 petcock clips  Honda 750 fuel line clamps  Honda 750 hose clip
Known as 'Tube Clip B10".
They work with the catch-rises on the petcock and
with the catch-rises on the other connection points.

Get a few extra clips as they are easy to lose during installation.
Don't use Honda motorcycle fuel line hose clamps!


Tee: 1975 and 1976 US 750 Ks use an under-tank fuel-line 'tee' splitter
in between their single-hose petcock and the two carburetor feeds.
Honda 750 fuel joint 16235-657-000
Honda calls this tee a 'fuel joint': its part number is 16235-657-000.
Be sure to replace all 3 hoses connected to this tee.

This tee was also used on some older Honda cars.


Insider tip:
Slit the end inch of old hardened hose Honda motorcycle fuel line
Honda 750 petcock brass press-in portat the petcock end before pulling the hose off.
Otherwise you might accidentally pull out a pressed-in brass port from the petcock body.



Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.

engine top view Honda 750

Quick Tip Honda 750 1969-1978 Honda 750 handlebar clamps idiot lights

52. From 1972 through 1976, US Honda 750
K-models used handlebar-clamp assemblies

that had built-in indicator lights
in their center.
There were 3 different versions:

72 >1972 Honda 750 handlebar clamps warning lights  73-74 >1973-1974 Honda 750 warning lights in handlebar clamps  75-76 >1975-1976 Hondlebar clamps with indicator lightsa 750 hand

K2 1972 year model:

says 'FLASH' for turn signals,
says 'NEUT' instead of spelling out NEUTRAL.
53133-323-000, superceded by 53133-323-010

K3-K4 1973-1974 year models:
same left-to-right lighting order as 1972 but
FLASH is now 'TURN', and NEUT is now 'NEUTRAL'.
53133-323-010

K5-K6 1975-1976 year models:
new left-to-right lighting order,
and BEAM is now 'HIGH BEAM'.
53133-374-670


Honda refers to this part as a handlebar 'Upper Holder'.

Honda 750 handlebar clamp indicator lights
Same part is used by some other size Honda models, not just 750s.
As they age, they fade and discolor.

Reproductions are also available.

Hardware needed by bolts for Honda 750 handlebar clamps this assembly,
1972-1975:
8X40 hex bolt, part number 93101-080-400B;
washer, part number 90518-921-000.


For 1976, Honda combined this bolt and washer into one part,
making
an 8X36 'Flange Bolt', part number 90111-362-000.
Honda upper holder flange bolts 1976  flange bolt Honda 750 handlebar clamps

Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


Quick Tip Honda 750 1969-1978 Honda 750 carburetor intake insulation boots

53. Often a cause of poor performance is intake air leaks. Now no longer sealing 'air-tight',
leaking are the old cracked & hardened carburetor 'insulator' rubber boots which
originally were also meant to keep carburetors cool and reduce vibrations from the engine.
Equivalent to an intake manifold on a car, but rubber instead of metal, and four instead of one.

carbutetor intake insulator Honda 750   carb insulator band Honda 750   carb insulators Honda 750   Honda 750 carburetor insulators

For US K-models 1969-1978, there have been 3 versions of the rubber carburetor insulators.

1969-1970 year K-models (K0)
Insulator A, needs two: 16211-300-305
Insulator B, needs two: 16212-300-305
Metal insulator band: 17255-300-000
Insulator band's 4X22 cross-screw: 93500-040220A
Used these parts above through engine #1044805,
which was the last K0 1970 model year engine.


1971-1976 year K-models (K1-K6)
Insulator A, needs two: 16211-300-030
Insulator B, needs two: 16212-300-030
Metal insulator band: 17255-300-010
Insulator band's 4X22 cross-screw: 93500-040220A
Used these parts above beginning with engine #1044806,
which was the first K1 1971 model year engine.


1977-1978 year K-models (K7-K8)
Insulator 1: 16211-405-000
Insulator 2: 16212-405-000
Insulator 3: 16213-405-000
Insulator 4: 16214-405-000
Metal insulator band: 17255-405-000
Insulator band's 4X22 cross-screw: 93500-040220A


69-70>carb intake boot Honda 750 1969-1970        71-76>carb intake boot Honda 750 1971-1976         77-78> carb intake boot Honda 750 K 1977-1978



Insider Tip: don't use hoseclamps. Use the correct bands.





For US Super Sport F-models 1975-1978,
there have been 2 versions of the rubber carburetor insulators.

1975-1976 Super Sport:
Insulator A- 16211-300-030 (same as K-model of same years)
Insulator B- 16212-300-030
(same as K-model of same years)
1977-1978 Super Sport:
77-78 Honda 750F Super Sport carb insulators
Insulator 1- 16211-410-000
Insulator 2- 16212-410-000
Insulator 3- 16213-410-000
Insulator 4- 16214-410-000





For US Hondamatic A-models 1976-1978,
there have been 2 versions of the rubber carburetor insulators.


1976 Hondamatic:
Insulator A- 16211-393-000, uses two.
Insulator B- 16212-393-000, uses two.

1977-1978 Hondamatic:
Insulator 1- 16211-393-020
Insulator 2- 16212-393-020
Insulator 3- 16213-393-010
Insulator 4- 16214-393-010
These '393s' are the least-available of all US 750 insulators.
77-77A insulators are smaller diameter than K/F insulators due to
the A's smaller carburetors. Their curves/shapes are different too.
So, some 750 Hondamatic owners end up replacing their carbs with K-model carbs of the
same year when they can not obtain original Honda 750A carb insulators when they get too stiff/leaky.
However, VINTAGE CB750 has remanufactured these and sells a set for about $100.


Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.



Quick Tip Honda 750 1969-1978 Is my Honda 750 a sandcast?

(This is a question we occasionally receive)

54. "I have a K-0 model Honda 750.
I believe that makes it a valuable 'sandcast' engine model.
How can I verify this?"


'Sandcast'-molded engine cases have a rough surface, like sandpaper.
Used only for the first 7414 Honda 750 engines made,
then a stronger (and smoother) casting system replaced it.

Not all K-0 Honda 750s had engines that used the 'sandcast' engine cases.
Easiest way to verify is with your engine number.
Sandcast engine cases were #1000001 through #1007414.
The last 750 engine that used sandcast cases was #1007414.
If numerically yours is higher than 1007414, then not sandcast.


Original sandcast engines used Honda 750 sandcast oil filter housing case Honda 750 sandcast oil filter case this smooth oil filter case,
but many were later replaced with the newer 'finned' oil filter case.

Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


Quick Tip Honda 750 1969-1978 Honda 750 top fork bridge differences

55. Salvage-yard and Internet searchers:
Looking to replace a cracked top bridge?
There were 3 main different top bridge styles
used on US K-model 750s 1969-1978!


The 3 top fork bridge differences US Honda 750 K-models 1969-1978:

1>Honda 750 top fork bridge 1969-1972   2>Honda 750 top fork bridge 1973-1976

3>Honda 750 top fork crown 1977-1978

1.
US K0-K2
Nicknamed 'unicorn' style.
Use
s chrome 'meter bracket bands' Honda 750 triple tree speedo band 69-72 around gauges.
Do not install top bridge without two special notched
D-shaped spacer-washers 53235-300-000 Honda 750 top bridge spacer washer 53235-300-000, one each,
at center in Honda triple tree top bridge washereach center gap area,
or top bridge can crack when tightening around fork tubes.

Top fork bridge part number:
up to frame #1003433 (sandcast 1 to 3433), 53230-300-010,
superseded by 53230-300-315;
after frame #1003434 (sandcast 3434 to 7414), 53230-300-020,
superceded by 53230-300-673, later superseded by 53230-300-315.
After sandcasts, 53230-300-315 through end of K2.

(NOTE: it has been reported that in Europe and some other countries outside of the US,
the 'unicorn' style was used through the 1975 K model)

Insider Tip: measure the width of the 'tip of the unicorn horn'
if you are buying a used part-- that was one difference.

2. US K3-K6
Uses a small black meter bracket to connect gauges.
Do not install top bridge without two special notched
D-shaped spacer-washers 53235-300-000 Honda 750 top bridge spacer washer 53235-300-000, one each,
at center in Honda triple tree top bridge washereach center gap area,
or top bridge can crack when tightening around fork tubes.

Top fork bridge part number:
53230-341-305


3. US K7-K8
Uses a small black meter bracket to connect gauges.
Has a mount for choke cable pull knob.
Top fork bridge part number
:
53230-405-000

Insider Tip: each fork tube top is tightened to with a bolt in the fork bridge.
1969 through 1975 used an 8mm bolt, but 1976 through 1978 used a thinner 7mm bolt.
1969-1975: 90155-369-000. 1976-1978: 92101-805-60B.



Here's what the three fork bridges look like installed and with gauges etc on them:

gauges CB750 1970        gauges CB750 Honda 1972        gauges CB750 Honda 78


Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


Quick Tip Honda 750 1969-1978 Honda 750 fork ears headlight holders

56. Salvage-yard and Internet searchers:
Looking to replace a damaged 750K headlight holder?
Some call them Honda 750 headlight 'brackets' or 'ears';
Honda calls them 'fork covers'.
This visual guide section shows the 4 general
designs used by Honda 750 US K-models K0 to K8.

Honda 750 headlight ear fork cover 1969-1970 red   K0-K1  Honda 750 fork cover headlight ears 1969-1970  K0-K1  Honda 750 headlight 1971

1972 Honda 750 fork covers chrome   K2  1972 Honda 750 fork covers headlight ears chrome  K2  fork ears Honda 750 1972 K2 chrome

Honda 750 1973-1976 chrome fork covers headlight ears  K3-K6  fork cover Honda 750 1973-1976   K3-K6  Honda 750 73-76 turn signal

Headlight ear 1977-1978 Honda 750 K7-K8  77-78 Honda 750 K headlight ear  K7-K8  front turn signals Honda 750 1977-1978


K0-K1 Fork Covers

Painted same color as gas tank and side covers.
On bottom-half of vertical portion are threads for a small reflector.
On horizontal portion, one hole at its end for a turn
signal stalk to go through and then into headlight shell.
Part number, right: 51602-300-672-(color code letters here)
Part number, left: 51606-300-672-(color code letters here)

K2 Fork Covers
Chrome.
On bottom-half of vertical portion are threads for a large reflector.
On horizontal portion, one hole is at its end for a turn
signal stalk to go through and then into headlight shell.
Looks like K0-K1 shape, but in chrome and with bigger reflector.
Part number, right: 51602-341-670XW
Part number, left: 51606-341-670XW

K3-K6 Fork Covers
Chrome.
On bottom-half of vertical portion are threads for a large reflector.
On horizontal portion, one hole is at its end for a headlight shell bolt,
and one hole inward of that for a turn signal mount.
Left fork cover has a square mounting hole for turn signal buzzer.
Part number, right: 51602-341-701XW
Part number, left: 51606-341-701XW

K7-K8 Fork Covers

Chrome.
Low on vertical portion is a built-in mount for a large turn signal.
On horizontal portion, one hole is at end for a headlight shell bolt.
Part number, right: 51602-405-000
Part number, left: 51606-405-000



Note: there can be variation, transition and cross-over issues
with the earliest models of these. Bring old part to compare.



Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


Quick Tip Honda 750 1969-1978 Honda 750 oil lines 1969-1978

57. Keep just five threaded oil tank lines in stock,
and you can replace any one used on any US Honda 750 K-models 1969-1978!

Honda 750 oil tank with hosesoil tank hone Honda 750

The oil tanks on these Honda 750 K-models all have two oil lines thread-connectored to the bottom of the oil tank.

Honda calls the hose with an angled threaded metal fitting at the tank end 'Oil Hose A'.
It threads on to the back half of the oil tank.
The hose with a straight-on threaded metal fitting (see photo above at right) at the tank end is 'Oil Hose B'.
It threads on to the front half of the oil tank, next to the tank drain bolt.
Both hoses have angled bolt-on fittings at their engine ends.

Hose A>oil hose A Honda 750               Hose B> Oil hose B Honda 750

1969-1972 Hose A: part number 15510-300-007
1969-1972 Hose B: part number 15520-300-007
1973-1978 Hose A: part number 15510-300-017
1973-1976 Hose B: part number 15520-300-007
1977-1978 Hose B: part number 15520-392-020



Some early-model hoses were gray instead of black. Not to be confused with aftermarket hoses that used stainless-steel braiding.

On sandcast engines,
the earliest type hoses were smooth fabric, not webbed, and the metal ferrule was not crimped.
Honda 750 oil hose sandcast
The next hoses used were webbed fabric, but still used smooth metal ferrules.

Ultimately, all 750 hoses became webbed fabric with crimped metal ferrules.



Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.

Quick Tip Honda 750 1969-1978 Honda 750 front brake disk rotor differences

58. After a few early front disk brake rotor improvements,
US Honda 750 K-models used 3 different part numbers for the factory rotors.

(Part numbers below for A-model and F-model rotors too!)

Honda 750 1969 disk brake <1969      1976 Honda 750 disk brake 1976 <1976

1.1969-1971 Honda 75- disk brake rotor 45120-300-040       2. Honda 750 disk brake rotor 1972-1975 45120-341-000        3. Honda 750 disk brake 1976-1978 K rotor

1.  1969-1971 K-models   disk brake rotor 45120-300-040
2.  1972-1975 K-models   disk brake rotor 45120-341-000
3.  1976-1978 K-models   disk brake rotor 45120-392-000


Note: K-model disk rotors were 295mm.

Some disk-to-hub hardware differences:
All K-model disks used 6 nuts and bolts. But 1969 through 1975 also used 3 flat lockstrips called 'tongued washers' that connected across
two bolts each; each flat strip had 'fingers' that were bent up to prevent the 8mm hex nuts 94001-080000S from vibrating loose/off.
Honda 750 front brake tongued washers 90522-300-010   tongued washers Honda 750 front wheel
The tongued washer (lockstrips) used were 90522-300-010 from 1969-1973, later superseded to 94108-18000.
1974-1975 K-models used tongued washer (lockstrips) 94108-18000.

1976 through 1978 K-models did not use the flat lockstrips; instead they used 8mm 'flanged' nuts 90309-357-000 for vibration security.
Honda 750 disk hardware


F-model SuperSport rotors:
1975-1976  front disk brake rotor 45120-392-000

1977-1978  front disk brake rotor 45251-410-000, superceded by 45251-410-305

1975-1978  rear disk brake rotor 43120-371-000


A-model Hondamatic rotors:
1976-1977  front disk brake rotor 45120-392-000

1978  front disk brake rotor 45120-393-780


Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


Quick Tip Honda 750 1969-1978 Honda 750 turn signal buzzer

59. Turn signal buzzers appeared beginning with 1972 K2 models.
Honda 750 turn signal buzzr 1972  Honda 750 winkr buzzr buzzer rear Honda 750  Honda 750 fork ears buzzer mount  buzzer Honda 750

Part Numbers
1972: Buzzer 38400-341-671
(1972 also used a short wiring harness adapter 'Wire Sub Cord B' 32121-300-750)
1973-1978: Buzzer 38400-341-674

Honda calls it a 'winker buzzer'.
It mounts into a square hole inside the left headlight bracket.

Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.

Quick Tip Honda 750 1969-1978 Honda 750 trivia Buyer's Guide

60. Honda 750 Honda 750 trivia!

*More than 553,000 1969-1978 Honda 750
(K, F, and A combined) motorcycles were made*

*Nearly 450,000 1969-1978 K-model 750s were made*

*A Honda 750 is made up of about 2500 parts*

*A Honda 750 weighs about 500 pounds*

*A Honda 750 engine weighs about 200 pounds*

*A Honda 750 engine is removed out the right side*

*If a part number ends in (color code) 'XW', that is chrome,
but not all chrome parts use XW in the part number*

*The best-selling K-model year was the 1971 750 K1*

*The least-selling K-model year was the 1975 750 K5*


Quick Tip Honda 750 1969-1978 Honda 750 master cylinder differences

61. Salvage-yard and Internet searchers:
there were several variations of front brake master cylinders

used on US K-model 750s 1969-1978!


Honda 750 master cylinder sandcast  Honda 750 master cylinder

Bring your old master cylinder, and compare for different: colors, caps, cap styles, levers, mirror mount heights,
switches, adjustment hardware, labeling, lever coating, fill-line inside, brake line connection end lengths, and more.
Some part numbers are shared below in case you would also like to research by Google.



Master cylinder assembly part numbers

K0 45500-300-030, had an adjustable lever stop (later superseded by 45500-341-771).
K1 had two variations:
--K1 early, from frame 1044650 to frame 1071335, was 45500-300-040
(later superseded by 45500-341-771)
--K1 later, almost halfway through the K1 year model, from frame 1071336,
was 45500-300-050 (later superseded by 45500-341-771).
K2 45500-341-671.
K3 through K6: 45500-341-771.
K7 45500-405-671.
K8 45500-393-771, has brake light switch 35340-393-771 on it


This part number was either the original or the replacementHonda 750 master cylinder 45500-341-771 master cylinder for K0 through K6 750 models.



This 45513 part number was either the Honda 750 master cylinder cap 45513-341-771 original or replacement master cylinder cap for K2 through K8 750 models.
KO bikes and some K1 bikes originally used silver concave cap 45513-300-020 > Honda 750 silver master cylinder cap
Honda 750 black master cylinder cap < Starting within K1 and continuing through K8 models, various black flat-top variants > Honda 750 master cylinder cap 45513-341-771


Master cylinder cap part numbers
(Honda refers to it as an 'oil cup cap')
K0 through into K1: 45513-300-020 (a silver concave),
superseded by 45513-341-010 (a black flat).
Mid-K1 through K2: 45513-341-671 (a black flat).
K3: 45513-341-770 (a black flat).
superseded by 45513-341-771 (a black flat).
K4 through K8: 45513-341-771 (a black flat)
.



The mystery of the adjustable front brake lever stop
that disappeared from US K-models after only one year!

For only one full US model year, K0, Honda used an adjustable lever stop for the front brake lever.
It was made up of the three little parts below-- 1) lever adjustment bolt 45518-300-003;
2) tanged washer 45525-300-000; and 3) 8mm hex nut 94002-080-000S:

1>Honda K0 750 master cylinder lever adjustment bolt      2> tanged washer Honda 750 K0 master cylinder      3> K0 Honda 750 master cylinder hex nut
But beginning with frame #1044650 (the first K1 750),
the lever stop was never again a listed part of the master cylinder for US K-model 750s.
Instead, the hole used was capped off with three different parts involved in photo below, for models K1 through K6:

A) right handle bush stop (a short rubber tube, shown below already installed in master cylinder) 45526-300-000,
| superceded by 45526-341-000; B) lever bush plate (sheet metal with a locator nub and a bolt hole) 45527-300-000;
and C) thin 6mm nut 94002-06000, superceded by 94002-06000S.
Honda 750 master cylinder underneath






Honda 750 silver master cylinder   rebuild kit Honda 750 master cylinder


Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 starter motor

Salvage-yard and Internet searchers: on all US 750 K, F and A models,
starter motors use the same part number 1969 through 1978!

Honda 750 starter motor   end of a Honda 750 starter motor

Part number is 'Starting Motor 31200-300-030'

The starter is under a chromed rectangle-shaped cover under the two left
carburetors.
It is accessed via the Honda 750 starter cover left side of the bike.
Two cover bolts and a gasket.


Note: disconnect your battery before working on the starter!


US K3 through K5 models, had 'Starter Motor Safety Unit' 31800-341-701
under the left side cover, bolted near the bottom edge of the battery cage.
Honda 750 K3-K5 starter motor safety unit 31800-341-701
With this, the 750 starter would only work if the bike
was in neutral or if the clutch lever was pulled in.

US K3 through K8 Honda 750 models used clutch lever starter safety switch
35360-341-000, Honda 750 clutch lever safety switch 35360-341-000 superseded by 35340-329-003


Insider Tip: to remove the starter motor, you must first remove the cam-chain tensioner holder.

Note: Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 battery box

Salvage-yard and Internet searchers:
There were 5 different battery boxes used on 1969-1978 Honda 750 US K-models.

Honda 750 battery box   750 Honda K battery box   1970s Honda 750 battery cage

Each year is similar but with different mount holes, etc.

Mount holes were used for various brackets, flashers, solenoids,
Honda 750 battery box electronics   electronics on 1978 Honda 750K battery box
starter safety switches, various charging items, and fuses.


Commonly referred to as a battery 'cage', the box itself is rubber cushion-mounted.
Honda 750 battery installed
Inside the box, the battery is surrounded by bottom & side anti-vibration rubber cushioning.


Battery bottom cushioning:
under the bottom of the battery, 1969 through 1976
used a large rubber pad 'Battery Rubber 50329-300-010',

Honda 750 battery box bottom rubber
whereas 1977-1978 instead used two round rubber pieces
bottom of battery box 1978 Honda 750K
'Battery Rubber B 50327-300-000'
Honda 750 battery rubber B
under the battery instead.


Battery side cushioning:
all years used round rubber pieces
Honda 750 battery rubber B
'Battery Rubber B 50327-300-000'.


Battery top:
batteries of all K-model years were secured down by a rubber strap with metal ends
Honda 750 battery band
'Battery Band A 50322-3000010', superseded by 95012-17000.




Battery box part numbers

1969-1972 models (K0-K2): 50325-300-020
1973-1975 models (K3-K5): 50325-341-700
1976 models (K6): 50325-341-701
1977 model (K7): 50325-405-000
1978 model (K8): 50325-405-770

Note: this part is often dirty with rust and battery acid residue. Protect clothes, skin and eyes.

Note: no K-model year came from the factory with a chromed battery box. That would be an aftermarket change.


Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 wiring harnesses Honda 750 1969-1978

Salvage-yard searchers:
There were 9 different wiring harnesses used on US Honda 750 K-models during 1969-1978.

Honda 750 wire harness

K0, up to frame #1003479: 32100-300-040
(superseded by 32100-300-050)
K0, beginning with frame #103480: 32100-300-050

K1: 32100-300-050       K2: 32100-341-000       K3: 32100-341-702

K4, up to frame #2346793: 32100-341-702
K4, beginning with frame #2346794: 32100-341-703

K5: 32100-341-703      K6: 32100-341-900      K7: 32100-405-670      K8: 32100405-611

Note: Involves transition models. Additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed type.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 65 Honda 750 rear bumper

Salvage-yard and Internet searchers:
4 different US 750 K-model chrome grab-bar
'Rear Bumpers'
1969 through 1978!


grab handle Honda 750 1969                     rear signal 74 honda 750                     rear signal 77-78 honda 750
    K0-K1: on left-side only    K2-K6: full grab rail     K7-K8: longer full grab rail


Some call it a 'grab rail' or a 'turn signal rail', Honda calls it a 'Rear Bumper'. All were chrome.



Part numbers:
K0-K1 side grip 50316-300-030
K0/K1>side grip Honda 750 1969-1971  Honda 750 1970 grab rail signal<K0/K1
(known as a 'Side Grip'; on left-side of bike only)

Note: there is no flat mounting tab because K0-K1
rear signals mount to the frame, not to the grab handle,

Honda 750 69-71 rear turn signal mounts 33607-292-000B
using 'Stay' 33607-292-000B.

Insider Tip: some K0-K1 owners buy a matching
additional side grip and install it on the right side.


K2 84101-341-671 (has a flat turn signal mounting tab with two small holes)

K3 84101-341-700 (has a flat turn signal mounting tab with two small holes)
K3/K4> rear bumber Honda 750K 1973-1974
   Honda 750 1973 rear bumper with signal<K3/K4
K4 84101-341-700
(has a flat turn signal mounting tab with two small holes)

K5 84101-341-770 (has a flat turn signal mounting tab with a large horizontal slot)
K5/K6> rear bumper Honda 750 1975-1976  Honda 750 1976 K rearm bumper signal<K5/K6
K6 84101-341-770
(has a flat turn signal mounting tab with a large horizontal slot)

K7 84101-405-000 (no flat turn signal mounting tab)
K7/K8>rear bumper Honda 750 1977-1978rear bumper Honda 750 1977-1978  Honda 750K 1977-1978 grab bar rear turn signals <K7/K8
K8 84101-405-000
(no flat mounting tab)
Note: There is no flat turn signal mounting tab on this because K7-K8 rear signals mount to the frame instead,
Honda 750K 77-78 rear turn signal stay
not to the grab rail, using 'Stays' 33606-405-000 (R) and 33607-405-000 (L).




Turn signal information at Quick Tips:
5 (headlight area photos),
7 (rear turn signal mounts),
16 (turn signal lenses and turn signals),
65 (chrome grab bars) and
110 (front turn signal mounts)!


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com



Quick Tip Honda 750 1969-1978 Honda 750 cylinder head 1969 to 1976


Honda 750 cylinder head uses 1976
Honda uses the US 1976 Honda 750 K-model cylinder head 12200-300-405, the 1976 head,
as the superseded replacement part number
for all US 1969 (K0) through 1976 (K6) 750 heads!

Honda 750 cylinder head empty  Honda 750 cylinder head replacement  rear of Honda 750 cylinder head  side view of Honda 750 cylinder head

Original US Honda 750 K-model cylinder head part numbers
K0: (up to engine 1026143) 12200-300-040, superseded by 12200-300-405
K0: (from engine 1026144 through engine 1044805)
12200-300-060, superseded by 12200-300-405
K1: 12200-300-070, superseded by 12200-300-405
K2: 12200-300-070, superseded by 12200-300-405
K3: (up to engine 222869) 12200-300-090, superseded by 12200-300-405
K4: 12200-300-100, superseded by 12200-300-405
K5: 12200-300-100, superseded by 12200-300-405
K6: 12200-300-405

The 1977-1978 Honda 750 K-model used a different head:
12200-392-000
1977-1978 Honda 750 K cylinder head  Honda 750 K cylinder head 1977-1978 12200-392-000



Insider Tip:
K0 through K3 heads had four vertical bracings at the ends;
K4 through K8 heads had three vertical bracings at the ends.


Honda 750 head with 4 vertical bracings    Honda 750 cyl head with 3 bracings

69-73 year models: 4 vertical bracings     74-78 year models: 3 vertical bracings



Insider Tip: Some K7/K8 cylinder heads have a '392' casting mark.

Insider Tip: Some 77/78F cylinder heads have a '410' casting mark.



Do you have an oil leak or seepage ABOVE the head?
Usually, this is the one-piece 'valve cover gasket' aka 'cylinder head cover gasket' .

Good news-- many don't know that it can be changed with the engine in the frame!
There is a YouTube video that shows the steps.
Be careful-- it is easy to put the gasket on backwards.

See section #106.


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 cylinder rubber inserts

(This is a question we occasionally receive)

"What are the gray rubber plugs stuck in between some of my US K-model's cylinder fins?
There are about 15 of them. I see little holes in the fins where some are missing from."


Honda 1970s 750 cylinder fin rubber inserts  Honda 750 cylinder fin rubber insert

Honda installed these anti-vibration supressor/dampeners on some years of twins and fours.
Part number 12195-300-000, they were later superseded by part number 12620-286-000.
Known as 'Rubber Inserts', most were a gray color, but the superseded part is black.

They are rounded, and on one end is a locator nipple to insert into the fin hole.

  rubber inserts Honda 750 cylinder <Inserts in                     Inserts removed> cylinder fin holes Honda 750 <holes in cylinder fins

K0, up to engine 1026143, used 20 rubber inserts.
K0, from engine 1026144, used 21 rubber inserts.
K1 used 21 rubber inserts.  K2 used 21 rubber inserts.
K3 through K8 can use 20 rubber inserts.
Beginning with K3, most did not use rubber inserts.

Insider Tip: lube the locator nipple when installing new rubber inserts.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 fuel tank rubber front and rear

68. Is your gas tank no longer firmly secured while being cushioned?

All US Honda 750 models used gas tank rubber mounts at both ends of the fuel tank.
40 year old rubber mounts harden, tear, shrink, stiffen, disintegrate and/or fall out.

Honda used these same rubber front cushion mounts
for all model years-- and for all models K, F, and A:
Honda 750 front fuel tank rubbers

Honda 750 1969 through 1978, front, all front fuel tank mounts Honda 750K 1969-1978 models, part number 17611-283-010.



But for the rear fuel tank rubber cushion, US K0-K8 had two versions:
K0 through K6> Honda 750 fuel tank rubber 1969-1976 17613-292-000                       K7 and K8> fuel tank rear rubber mount Honda 750 1977-1978<(and 75F through 78F too)
17613-292-000                                                    17613-399-000



Note
: parts 17611-283-010 and 17613-292-000 were used on MANY other Honda motorcycle models too.



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 fork boots gaitors 1969-1976 51611-300-000

69. Fork boots aka fork gaiters or accordion boots:
US Honda 750 K-models 1969-1976 all used the same boots!

Honda 750 fork boots 51611-300-000 same 1969 through 1976
  fork boots Honda 750 K-models

51611-300-000

They protect the fork tubes from getting nicked up by road debris, which then would damage fork seals.

They fade, deteriorate, split and tear.

Must remove fork tubes away from top bridge and steering stem to install the boots.

One end of the boot connects at bottom of the headlight mounts,
the other end connects at the top of the fork legs.

Left and right are identical. Same boot is also used on several other Honda models.

Insider Tip: if you find milky or oily fluid inside boots, fork seals and fluid should be replaced.



Note: US 1977-1978 750Ks are with no-boots Honda 750 fork tubes 1977-1978 bare fork tubes instead.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 70 Honda 750 fork legs

70. Fork legs aka
fork cases:
There were 8 different cases for US K-model 750s 1969-1978;
two were the same as Honda 450!


Honda 750 fork case or fork leg
(pictured above is 51421-341-701, US Honda 750K 1973-1976 right side)

K0 (up to frame 1039119):
left, 51520-300-040; right, 51420-300-040

K0 (from frame 1039120 through frame 1044649):
left, 51520-319-000, right, 51420-319-000
K1: left, 51520-319-010; right, 51420-319-010
K2: left, 51520-319-010; right, 51420-319-010

fork leg case Honda 750 K1 Honda 450 K3-K4
(same part numbers as Honda 450 twin '70-'71 K3/K4,
as revealed by the 319 center part number!)


K3-K6: left, 51521-341-701; right, 51421-341-701

K7-K8: left, 51521-393-003; right, 51421-393-003

Honda 750 fork case leg   fork cases Honda 750 K 1977-1978



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 fork tubes

71. Fork tubes

Only 5 different tubes were used during the entire US Honda 750K 1969-1978 series!

Honda 750 front fork tubes

Honda refers to these 35mm chrome tubes as 'Front Fork Pipes'.


1. K0: (up to frame 1039119) 51410-300-010

2. K0: (from frame 1039120) 5141-300-020, superseded by 51410-300-405
and
K1-K2: 51410-300-020 superseded by 51410-300-405

3. K3-K6: 51410-341-702

4. K7: (up to frame 2707507) 51410-405-003

5. K7: (from frame 2707508) 51410-393-003
and
K8: 51410-393-003



fork tube ends Honda 750

Note: some owners installed longer aftermarker fork tubes for a 'chopper' look.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 steering stem triple trees

72. Steering stems


Only 3 different steering stems were used Honda 750 steering stem on 1969-1978 US 750 K-models!

1. K0: 53020-300-020B
and
K1, up to frame 1048862: 53020-300-020B
(has a provision for a fork lock)

2. K1, from frame 1048863: 53200-300-030B
and
K2-K6: 53200-300-030B
(has a provision for a fork lock)

3. K7-K8: 53200-392-000ZA (no provision for a fork lock)


Note: K0 through K6 steering stems used fork locks at their bottom.


If you find a 750 steering stem with two Honda 750F steering stem 1978 studs pointing forward (or holes for them),
it won't work: it's for the Honda 77/78 750 F-model Super Sport.


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 oil tank differences

73. Salvage-yard searchers, bring the old one to compare:
There were 4 different
oil tanks that came
with US Honda 750 K-models 1969-1978!


K0 1969-1970 Honda 750 oil tank 1969 K0   oil tank for Honda 750 1969-1970 55100-300-050B

K1-K5 1971-1975 Honda 750 oil tank   Honda oil tank Honda 750   Honda oil tank rear 1973 750 55100-300-060B

K6 1976 1976 Honda 750 oil tank K6   rear of oil tank, Honda 750 K 197655100-341-000

K7-K8 1977-1978 oil tank for Honda 750K 1977-1978 K7 K8   Honda 750 oil tank K7-K8 1977-1978 Honda 750 55100-392-000


K1-K6 has 4 large 'dimples' on its outer side.
K0-K6 polished dipstick cap is exposed even when side cover in place.

K7-K8 dipstick is hidden by side cover.
Watch for rear venting and rear hose differences.
Watch for different side cover mounting.



And two different 'dipsticks' were used:

K0-K6 750s used exposed dipstick 'Oil Tank Cap' dipstick Honda 750 1969-1976 55105-300-010,
with gasket 17631-253-000 or 010 Honda 750 dipstick gasket

K7-K8 750s used hidden dipstick 'Oil Level Gauge' 55105-392-000,
with 23mm o-ring 91354-371-000
Honda 750 dipstick o-ring

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 damper rear hub rubber cushions

74. Forgotten, yet they help protect your bike every mile:

Honda 750 rear wheel rubber insert cushion pieces
the rubber dampers inside the rear wheel hub.



It's probably time to damper set Honda 750 1977-1978 rear hub replace them!


Honda 750 US K-models 1969-1978 hard-cushion damper part numbers below.


K0
: Honda 750 K0 1969 rear hum damper R (small, not shown here) 41241-300-030, L (big) 41242-300-010

K1 through K5, and early K6: rear hub rubber Honda 750   Honda 750 K rear hub rubber damper cushions R (small) 41241-300-040, L (big) 41242-300-020

late K6 through K8: Honda 750 rear wheel hub damper 77-78 41241-300-050 (two pieces are instead now a joined single piece)


K6 up to frame 2560085 uses the K1 through early K6 2-piece set.
K6 from frame 2560086 uses the late K-6 through K8 1-piece set.


Here is a complete set for damper set Honda 750 K 1971-1976 a K1 through early K6.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 frame 1969-1978 differences

75. Salvage-yard and Internet searchers:
Did frames change?
Three times was the same frame
part number used for a second model-year
on a '69-'78 US Honda 750 K-model.

Honda 750 frame K-model

K-model frame part numbers

K0: (up to frame 1003950) 50100-300-365B
K0: (from frame 1003951) 50100-300-060B
K1: 50100-300-060B
K2: 50010-341-000B
K3: 50010-341-010B
K4: 50010-341-010B
K5: 50100-341-670ZA
K6: 50100-341-670ZA
K7: 50100-405-671ZA
K8: (up to frame 2801783) 50100-405-770ZA
K8: (up to frame 2850000) 50100-405-771ZA
K8: 50100-405-790ZA

A-model Hondamatic frame part numbers
76A: 50100-393-670ZA
77A: 50100-393-771ZA
78A: 50100-393-772ZA

F-model SuperSport frame part numbers
75F: 50100-392-670ZA
76F: 50100-392-670ZA
77F: 50100-401-670ZA
78F: (up to frame serial 2214075) 50100-410-670ZA
78F: (after frame serial 2214075) 50100-410-790ZA




Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 speedometer speedo drive

76. Salvage-yard and Internet searchers:
Only two different speedometer drives
were used on K-model 750s 1969-1978!


Honda calls this part a 'Meter Gear Box'

Honda 750 1970 speedo drive   speedometer drive Honda 750 1969  Honda 750 speedometer drive

 Honda 750 speedo drive 1969 rear   speedo drive Honda 750 1974

 speedometer drive rear Honda 750 1974   front of 1974 Honda 750 1974 spedo drive   speedometer drive Honda 750 1974 front

Honda 750 K-model speedometer drive part numbers
K0 speedometer drive: 44800-300-020
K1 through K8 speedometer drive: 44800-300-030

Note: Dual-disc converters often seek the K0 speedometer drive.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 speedometer cable

77. Cables that one-fits-all-years US Honda 750 K-models


Speedometer cable, 1969-1978 Honda 750 speedometer cable 44830-426-830 44830-426-830

Tachometer cable, 1969-1976 tachometer cable Honda 750 44830-426-830end of tach cable Honda 750 37260-449-840

Engine tachometer cable seal, 1969-1976 Honda 750 tachometer seal 91256-096-651

Clutch cable, K8 cable that fits all K0-K8 Honda 750 clutch cable 22870-410-000 69-78, 22870-410-010

(Throttle cables, there is no one-fits-all, see 'Quick Tip 83' for throttle cable list)


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 reflector

78. Only two different reflectors were used with
US Honda 750 K-models 1969-1978.


Replace them if missing, scratched, broken, faded, dull, or not glossy!


Small orange reflector 33741-286-670 is used on fork covers K0 and K1:

Honda 750 headlight 1971   Honda 750 reflector 1969-1971 33741-286-670   Honda 750 reflector 1969-1971


Large orange reflector 33741-340-670 is used on fork covers K2 through K8:

reflector Honda 750K   Honda 750 reflector 1972-1978 33741-340-670   reflector for Honda 750 headlight holders K2-K8   77-78 Honda 750K reflector



Note: Honda refers to this part as a 'Reflex Reflector'.

Note: these reflectors were used on many other Hondas.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 seat rubber cushions

79. Does your 750K seat feel looser than it used to?
Maybe it's time to change the under-seat rubbers!

1>seat rubber Honda 750  1> seat rubber for Honda 750 77204-292-000

2>seat rubber Honda 750 small  2> seat rubber Honda 750 77205-286-000 77205-286-000


Honda refers to them as 'Seat Setting Rubbers'.

K0 through K6 uses two #1s and three #2s.
K7-K8 uses five #2s.

Note: these pieces were used on many other Hondas.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 80

80. Honda 750 US K-model headlight cases and their hardware


--also known as headlight 'buckets'--

Honda 750 headlight case 61301-300-010B   Honda 750 headlight case


Honda 750 headlight case red blueHonda 750 headlight case Candy Gold 61301-300-010CQ

US headlight case part numbers
K0 headlight case, Candy Blue Green, 61301-300-010AZ
K0-K1 headlight case, Candy Ruby Red, 61301-300-010CM
K0-K1 headlight case, Candy Gold, 61301-300-010CQ
K1 headlight case, Candy Garnet Brown, 61301-300-010EE
K1 headlight case, Valley Green Metallic, 61301-300-010EF
K2-K5 headlight case, black, 61301-300-010B
(was superseded by 61301-300-020B)
K6-K8 headlight case, black, 61301-300-020B


Note: any chrome headlight case was available as a later or an aftermarket item.



Some frequently needed Honda 750 headlight case hardware:

Headlight case collar Honda 750 headlight case collar 61302-300-000 61302-300-000 (needs 2)

Headlight case screw collar Honda 750 headlight screw collar 61304-292-000 61304-292-000 (needs 3)

Headlight cross screw 5X16 Honda 750 headlight cross screw 5X16 93500-050-160B 93500-050-160B (needs 3)

Headlight spring washer 5mm headlight spring washer 5mm Honda 750 94111-05000 94111-05000 (needs 3)

Headlight case washer/nut with wire headlight case washer Honda 750 61303-336-000 61303-336-000 (needs 2)

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 original shocks

81. Honda 750 US K-model rear shock absorbers 1969-1978:
only 2 styles, but many variations.


chrome-cover used K0-K6 > rear shock Honda 750 1975           rear shock Honda 750 1978 < no cover used K7-K8

Honda refers to these as 'rear cushions'.

All had an eye rear shock eye Honda 750 at top (frame) and a clevis rear shock clevis Honda 750 at bottom (swingarm).


Rear shock absorber part numbers
K0: 52400-300-010
K1: (up to frame 1048751) 52400-300-010XW
K1: (from frame 1048752) 52400-300-020XW
K2: 52400-341-000XW
K3-K5: 52400-341-670XW
K6: 52400-341-911XW
K7: 52400-392-003
K8: 52400-405-013


Frequently needed rear shock absorber hardware

Acorn flange nut at top of shock: Honda 750 rear shock flange nut 90309-315-000
10.3mm washer Honda 750 rear shock washer behind acorn flange nut: 90521-292-000

10X32 hex bolt at bottom of shock: Honda 750 rear shock bolt
93200-100320B, superceded by 93201-100-320


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 clutch cable differences

82. Honda used 3 slightly-different clutch cables during the U
S 750 K0-K8 series.

The final K8 cable now supersede
s (replaces) all prior 750K clutch cables.

But for accurate restorations, here
are the correct part numbers!

Honda 750 clutch cable

K0-K1: 22870-300-000, superseded by 22870-410-000
K2-K7: 22870-341-010, superseded by 22870-410-000
K8, up to frame 2809209 (the first 9200 K8s):
22870-341-010, superseded by 22870-410-000

K8, from frame 2809210: 22870-410-010


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 throttle cables

83. The Honda 750 US K-model throttle cable list.


Honda 750 1969 KO throttle cable    Honda 750 throttle cable list differences

KO: 17910-300-030

K1: cable A, 17910-300-040, superseded by 17910-341-000
K1: cable B, 17920-300-020, superseded by 17920-341-000

K2-K6: cable A, 17910-341-000
K2-K6: cable B, 17920-341-000

K7-K8: cable A, 17910-393-000
K7-K8: cable B, 17920-393-000

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 battery cable

84.
Of the several positive battery cable variations
used throughout the 1969-1978 US
Honda 750 K-model
series, which one can usually be used on any model?



Honda 750 battry cable 32401-300-010
32401-300-010, the oldest cable.

Look at 32401-300-010 as 3 attached wires:
--the thick main cable,
and
--
extra lead A (round bullet connector at top in photo)
,
and
--extra lead B (flat spade connector at left in photo).


All models use the thick main cable portion.

K0-K2 also uses extra lead A and also uses extra lead B.

K3-K6 also uses extra lead A.
It does not use extra lead B.
Fold extra lead B to make it shorter,
then cover folded lead B with electrical tape to prevent its inproper use.
This was first discussed with Honda Service Bulletin #43 in 1975.

K7-K8 does not use either extra lead.
Fold both extra leads to make them shorter,
then cover the folded leads with electrical tape to prevent their improper use.



But for correct restoration standards, here are the original positive cable part numbers.
K0-K4: 32401-300-010 (has both extra leads attached)
K5, up to frame 2503719: 32401-300-010 (has both extra leads attached)
K5, after frame 2503719: 32401-341-000 (has only extra lead A attached)
K6: 32401-341-000 (has only extra lead A attached)
K7-K8: 32401-392-000 (has no extra leads attached)


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978 Honda 750 right handlebar switch

85. Right-side  Honda 750 handlebar switch starter kill switch  handlebar switches

US Honda 750 K-models had 6 different righ
t-side switches 1969-1978.

All have a starter button and a kill switch, some have
headlight functions.

Also known as 'starter/kill switches' or as 'throttle-side switches'.

Sun can fade/discolor the entire unit and also deteriorate the kill switch knob.

Some can use a spring-loaded Honda 750 throttle grip drag adjustment throttle-drag adjustment at bottom.

K0-K6 uses bar-internal wiring; K7-K8 uses bar-external wiring.


Most available new, used, and reproduction.



K0 has start, kill, and 1969 Honda 750 headlight switch headlight off/low/high controls.
Only year-model with black kill switch. Bar-internal wiring. 35300-300-672


K1-K2 has start, kill, and 1971-1972 Honda 750 right handlebar starter switch headlight off/low/high controls.
First year-model of red kill switch. Bar-internal wiring. 35300-300-674



K3-K4 has start, kill, and 1973-1974 Honda 750 headlight switch 35300-341-671 headlight off/on controls.
Example of faded coloring. Bar-internal wiring. 35300-341-671



K5 has start, kill, and 1973-1974 Honda 750 headlight switch 35300-341-671 headlight off/on controls.
Bar-internal wiring. 35150-374-671, superseded by 35300-341-671 (the K3-K4 switch)


K6 has start and kill only; 1976 Honda 750 right starter-stop switch uses bar-internal wiring.
35130-341-910, superseded by 35130-377-P00



1977-1978 right-side handlebar switch Honda 750K  K7-K8  1977-78 Honda 750 starter switch
has only the start & kill; uses bar-external wiring.
35130-404-671



Right-side switch part numbers list,
US Honda 750 K-models 1969-1978

K0: 35300-300-672 (has all headlight controls and a black kill switch)
K1-K2: 35300-300-674
K3-K4: 35300-341-671
K5: 35150-374-671, superseded by 35300-341-671
K6: 35130-341-910, superseded by 35130-377-P00
(start and kill only; last model-year of wiring running inside handlebars)
K7-K8: 35130-404-671 (start and kill only; wiring runs along outside of handlebars)


Pin inside switch bottom-half goes into hole on handlebars.


Wire bands used to secure K7-K8 external wiring along handlebars: 32161-404-000
cable ties for handlebar external wiring Honda 750 1977-1978



Insider Tip: using a headlight beam that draws more power than the original
beam can quietly overheat any light-involved switch and cause the switch to fail.


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 left-side handlebar switches

86. Left-side Honda 750 handlebar switch left clutch side K3-K4 35250-341-678 handlebar switches


US Honda 750 K-models had 6 different
left-side switches 1969-1978.

All have
turn signal and horn, some also have headlight high/low functions.

K0-K6 used handlebar-internal wiring. K7-K8 used handlebar-external wiring.

Honda refers to these as 'winker switches'.

Also known as 'clutch-side switches'. Sun can fade/discolor the entire unit.

Most available new, used, and reproduction.



K0-K1 has Honda 750 turn signal switch turn signal and horn.
Bar-internal wiring. 35250-300-033



K2 had a special switch.
It had turn signals and horn, like K0/K1-- plus one other thing.
It had an additional switch screwed to its bottom, under the horn button.
K2 was the first year of the turn signal reminder buzzer, this button was its 'silencer':

stop turn buzzer Honda 750 K2 1972
turn signal mute button 1972 Honda 750 Honda 750 buzzer mute 1972 K2left handlebar switch K2 Honda 750 with signal buzzr kill
The special bottom switch allowed you to mute off the buzzer sound while sitting at stop lights.
Bar-internal wiring. 35250-341-672. Some early K3 owners are said to have this switch too.
See Quick Tip 126 below for additional information.



K3-K4 has Honda 750 handlebar switch left clutch side K3-K4 35250-341-678 turn signal, horn, and high/low.
Bar-internal wiring. 35250-341-678



Left-side
switch part numbers list,
US Honda 750 K-models 1969-1978

K0-K1: 35250-300-033, has turn signal and horn
K2: 35250-341-672, has turn signal and horn and buzzer-sound-muter button
(see Quick Tip 126 below for additional information on this K2 switch)
K3-K4: 35250-341-678; has turn signal, horn, high/low headlight, and clutch switch
K5: 35200-374-671; has turn signal, horn, high/low headlight, and clutch switch
K6: 35200-341-910; has turn signal, horn, high/low headlight, and clutch switch
K7-K8: 35200-404-671; has turn signal, horn, and high/low headlight


Pin inside switch bottom-half honda switch pin goes into hole on handlebars.



K3-K6 uses a clutch switch Honda 750   35340-329-003 Honda 750 clutch switch clutch-lever switch
as part of a starter-safety function. 35360-341-000, superseded by 35340-329-003.



Wire bands used to secure K7-K8 external wiring along handlebars: 32161-404-000
cable ties for handlebar external wiring Honda 750 1977-1978


Insider Tip: using a headlight beam that draws more power than the original beam could
possibly quietly overheat any light-involved handlebar switch and cause the switch to fail.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 rectifier

87. Salvage-yard and Internet CHARGING SYSTEM searchers:
Rectifiers for US Honda 750 K-models 1969-1978

original style >  Honda 750 rectifier 1972 31700-341-015        Honda 750 rectififer, superceded 31700-333-008 < superseded style



Mounted on the battery box, Honda 750 rectifier mounts on battery box it changes the charging system's AC output to DC.

It gives the battery DC to stay charged. It also allows current only to flow in one direction.


These can get warm to the touch. And watch for corroded connections.


Rectifier part numbers list,
US Honda 750 K-models 1969-1978

K0-K1: 31700-300-035, superseded by 31700-333-008
K2-K8: 31700-341-015, superseded by 31700-333-008

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com

Quick Tip Honda 750 1969-1978  Honda 750 Stator K0-K8

88. Salvage-yard and Internet CHARGING SYSTEM searchers:
Need a stator for a Honda 750 US K-model 1969-1978?
There's only 2 different part numbers.
Honda 750 stator 1969-1978


Stator part numbers list,
US Honda 750 K-models 1969-1978

K0-K6: 31102-300-035
K7, through frame 2731487: 31102-300-035
K7, beginning with frame 2731488: 31102-300-045
K8
: 31102-300-045


It is found underneath these parts, on the left side:
Honda 750 dynamo cover 1969-1978 K-models    screws for 750 Honda dynamo   Honda 750 dynamo washers   Honda 750 dynamo gasket 1969-1978


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types
.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 rotor 31101-300-035

89. Salvage-yard and Internet CHARGING SYSTEM searchers:
Need a rotor for a Honda 750 US K-model 1969-1978?
There's only one part number-- but there were actually two different rotors!

31101-300-035

Honda 750 rotor 31101-300-035
(later style, no rear step/flange, but shown with the starting gear still behind it)

Earlier charging rotors had a step/flange around its rear, like a thick metal lip. 6.9 pounds.
Later charging rotors had no step/flange, saving more than a pound. 5.7 pounds.


Honda 750 charging rot05, older design with rear step/flange < with rear step/flange        no step/flange >  Honda 750 charging rotor, newer lighter model with no rear step/flange



The rotor is found underneath these parts, on the left side:
Honda 750 dynamo cover 1969-1978 K-models    screws for 750 Honda dynamo   Honda 750 dynamo washers  Honda 750 stator 1969-1978 Honda 750 dynamo gasket 1969-1978


You need a puller toHonda 750 rotor puller 20 X M1.5 right-hand threadremove the rotor from the engine.
(20mm X M1.5 right-hand thread)

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com



Quick Tip Honda 750 1969-1978
  Honda 750 field coil part numbers

Salvage-yard and Internet CHARGING SYSTEM searchers:
90. Need a field coil for a Honda 750 US K-model 1969-1978?
There are four different part numbers.

Honda 750 field coil wire   Honda 750 field coil 1969-1978   wire for Honda 750 field coil


Field coil
part numbers list,
US Honda 750 K-models 1969-1978

K0-K6: 31103-300-035, superseded by 31103-393-015
K7, through frame 2731487: 31103-300-035, superseded by 31103-393-015
K7, beginning with frame 2731488: 31103-300-045, superseded by 31103-392-731
K8: 31103-300-045, superseded by 31103-392-731


It is found underneath these parts, on the left side:
Honda 750 dynamo cover 1969-1978 K-models    screws for 750 Honda dynamo   Honda 750 dynamo washers  Honda 750 stator 1969-1978 Honda 750 dynamo gasket 1969-1978

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com



Quick Tip Honda 750 1969-1978
  Honda 750 regulator 1969-1978 31400-300-035

91. Salvage-yard and Internet CHARGING SYSTEM searchers:
Need a regulator for a Honda 750 US K-model 1969-1978?
There is only one part number.

Honda 750 regulator same 1969 through 1978
31400-300-035


Mounted on the battery box, it regulates Honda 750 regulator mounted on battery box the voltage. It is adjustable.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com



Quick Tip Honda 750 1969-1978
  Honda 750 exhaust pipe mounting hardware

92. Salvage-yard and Internet searchers:
There are two main different
exhaust-to-engine mounting-style

differences for '69-'78 US 750 K-models:

K0-K6 used a 'clamp-around'; K7-K8 used a 'clamp-in'.



1969-1976> Honda 750 exhaust clamp Honda 750 K0-K6 < K0-K6          K7-K8> Honda 750 1977-1978 exhaust pipe clamp <1977-1978



---------- Some exhaust hardware used by the earlier K0-K6 style ----------


1. Exhaust 'frange'/flange, Honda 750 exhaust frang6 1976 also known as an exhaust spigot.
Uses four, all four the same, held to engine by phillips-head cross-screws.

K0 through frame 1026143, part number 18236-300-010.
K0 beginning with frame 1026144 through K6, part number 18236-300-030.


Honda 750 exhaust spigot set 1969-1976   Honda 750 exhaust spigot in head


2. Phillips-head cross screw,Honda 750 frange cross screw 8X22, uses eight.
Part number 9360008022.



3. Exhaust gasket, Honda 750 exhaust gasket uses four.
Part number 18291-MM5-860.



4. Exhaust joint, Honda 750 exhaust joint uses 2 right and 2 left.
Part number, right: 18281-300-010.
Part number, left: 18282-300-010.



5. Exhaust joint hex bolt, Honda 750 exhaust frange bolt uses four.
Part number 92101-08032-0B.




---------- Some exhaust hardware used by the later K7-K8 style ----------
(and also used by the Super Sport F-models 1975-1978)
(and also used by the Hondamatic A-models 1976-1978)

1. Exhaust pipe joint, Honda 750 1977-1978 exhaust pipe clamp uses four.
Part number 18231-392-000.



2. Collar, Honda 750 exhaust collar K7-K8 uses eight.
Part number 18233-392-000.


3. Exhaust gasket, Honda 750 exhaust gasket uses four.
Part number 18291-MM5-860.



4. Flange nut, 8mm, Honda 750 exhaust flange nut uses eight.
Part number 94050-08000.


5. Stud, 8X32, Honda 750 exhaust stud 1977-1978 uses eight.
Part number 92900-80320E.



Older models can be changed to the newer style; many aftermarket exhausts require stud-type.

Insider Tip: old round exhaust gaskets seem to
become 'invisible', mechanics swearing a bike had none.
Actually, they just become so smashed flat and lose their color that they blend in with the head.
A dental-type pick often helps to find them and to remove them.

More exhaust information at Quick Tip 41, Quick Tip 50 and Quick Tip 143!



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 cluctch lever and Honda 750 brake lever

93. Honda 750 US K-models
clutch levers and brake levers



Clutch lever

Honda 750 clutch lever 53190-369-700
K0-K7 can all use 53190-369-700.
K0-K3: 53190-286-670,
superseded by (photo above) 53190-369-700.
K4, to 2436284: 53190-286-670,
superseded by (photo above) 53190-369-700.
K5: 53178-329-000,
superceded by 53178-369-700.
K6: 53190-369-700,
superseded by (photo above) 53190-369-700.
K7: 53178-329-000,
superseded by 53178-369-700.
K8: 53178-467-000,
superseded by 53178-401-651.


Brake lever
Honda 750 brake lever 53170-333-000
K0-K7 can all use 53175-369-003.
K0-K5: 53170-300-000,
superseded by (photo above) 53170-333-000.
K6: 53175-300-020,
superceded by 53175-369-003.
K7: 53175-369-003,
superceded by 53175-369-700.
K8: 53175-431-670.


Lever cap
Honda 750 clutch lever cap
53180-286-000, superseded by 95010-16000.


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 transmission case cover

94. Which transmission case cover is correct
for US Honda 750 K-models 1969-1978?


There were 3 different K-model part numbers-- one cover shows the shift pattern!


71-73 Honda 750 transmission case cover            Honda 750 transmission case cover shift pattern > Honda 750 transmission case cover 1974-1978
11360-300-040                                                    11360-300-050


K0 'sandcast' models, through 1007414: 11360-300-030
(superseded by 11360-300-040)
K0 models from 1007415: 11360-300-040
K1-K3 models: 11360-300-040
(superseded by 11360-300-050)
K4 models through 2348092: 11360-300-040
(superseded by 11360-300-050)
K4 models from 2348093: 11360-300-050
K5-K8 models: 11360-300-050


Note: 1977-1978 Honda 750F Super Sport models use a
black transmission case cover, part number 11360-410-010.


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 tool kit under seat

95. Salvage-yard and Internet searchers:
Which under-seat tool kit is correct
for 1969-1978 US 750 K-models?


under-seat Honda 750 tool kit

Tool kit part numbers

K0-K2
: 89010-300-000, superseded by 89010-341-010
K3-K6: 89010-341-010 (photo above)
K7: (up to frame 2732934) 89010-405-000
K7: (after frame 2732934) 89010-405-010 (photo below)
K8: (up to frame 2812425) 89010-405-000
K8: (after frame 2812425) 89010-405-010 (photo below)


Note: 1977-1978 K7-K8 tool kits under-seat Honda 750 tool kit 77-78 89010-405-010 include a 6mm hex (allen) wrench.


Insider Tip: the most valuable tool in the kits is the spark plug wrench.
K0-K6: 89216-300-000, Honda 750 spark plug wrench 99004-18002 superseded by 99004-18002.
K7-K8 spark plug wrench: 89216-323-000


Tool kit is kept in an under-seat batter under seat of Honda 750 seat tray, next to the battery.


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 tool trays, metal and plastic

96. Salvage-yard and Internet searchers:
Which under-seat tool kit TRAY is correct
for 1969-1978 US 750 K-models?
There are two types: one is metal, one is plastic.

metal Honda 750 tool tray 50341-300-010 metal 1969-1975
K0-K5

plastic plastic tool tray Honda 750 1976-1978 K6-K8

K0-K5: 50341-300-010 (metal)
K6-K8: 50341-392-000 (plastic)


Paint often is corroded off the metal batter under seat of Honda 750 seat tray because it's next to the battery.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


red 717 CB750

Quick Tip Honda 750 1969-1978  Honda 750 coil

97. Salvage-yard and Internet searchers:
Which ignition coils are correct
for US 750 K-models 1969-1978?


Honda 750 ignition coil under tank

The two coils are mounted on the frame, under the gas tank.

The left coil fires sparkplugs 1 and 4, the outer two cylinders.
The right coil (photo above)
fires sparkplugs 2 and 3, the inner two cylinders.

Honda 750 coil

Usually, the right coil (2&3) has a yellow wire.
Usually, the left coil (1&4) has a blue wire.
The sparkplug wires are permanently attached to the coils.


Coil part numbers
right coil: 30501-300-013, superseded by 30501-300-003
left coil: 30502-300-013, superseded by 30502-300-003


Insider Tip: the coil for the outside
cylinders has the longer sparkplug wires.



At the ends of these coils, there should be the
correct standard spark caps for US 69-78 750K:
Honda 750 outer sparkplug caps XDO5F                  Honda 750 spark plug NGK D8EA

Outer caps (left coil): NGK XD05F       Inner caps: (right coil) NGK SD05F



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  steering stem for Honda 750

98. Salvage-yard and Internet searchers:
Which fuse box is correct for
US 750 K-models 1969-1978?


There were two types. Both were under the left side cover.


K0-K2 Honda 750 fuse box K0-K2 1969-1972
32110-300-000


K3-K8 Honda 750 fuse box K3-K8   Honda 750 fuse box cover 1973-1978 1973-1978
32110-341-702


Insider Tip: In 1978, Honda had a recall/replacement
for defective Hondamatic 750 fuse boxes.

Insider Tip
: In 1980, Honda had a recall/replacement for defective K7-K8 750 fuse boxes.



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 tools

(This is a question we occasionally receive)
99. "Other than a basic metric tool set,
what special
tools should I obtain for
doing my own 750K maintenance and repairs?"


Clutch nut socket

Alternator rotor puller

Carburetor float gauge

Carburetor sync gauges

Ignition switch nut tool


Impact wrench

Torque wrench

Rear wheel bearing retainer tool


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 starter solenoid magnetic switch

Salvage-yard and Internet searchers:
100. Which starter solenoid is correct
for US 750 K-models 1969-1978?

All were under the left side cover, at the battery box.
There were three part numbers.
Honda calls this part a 'magnetic switch'.

Honda 750 starter solenoid


K0-K3: 35850-306-670, superseded by 35850-371-670
K4-K6: 35850-371-670
K7-K8: 35850-375-000


Insider Tip:
Match the wire colors.
Some solenoids were made to work with a starter safety switch.

Insider Tip:
Most K0-K6 solenoids use a metal mount;
Honda 750 solenoid bracket metal K0-K6   onda 750 starter solenoid rubber mount K7-K8
most K7-K8 solenoids use a rubber mount.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 gear shift pedal

Salvage-yard and Internet searchers:
101. Which gear shift pedal is correct
for US 750 K-models 1969-1978?

There were two different pedals-- the 'toe end' is the obvious difference.



K0-K6 Honda 750 gear shift pedal   Honda 750 gear shift lever early 24701-300-020
K0-K6 has a 'skinny' portion for the toe to use.



K7-K8 Honda 750 shift pedal 1977-1978   Honda 750 gear shift pedal K7-K8
K7-K8 has a wider and flatter portion for the toe to use.
  24701-405-000


Honda calls this part a 'change lever'.


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 kickstart

Salvage-yard and Internet searchers:
102. Which kickstart is correct for
US 750 K-models 1969-1978?

Honda 750 kickstart

There are two different K-model kickstarter assembly part numbers.

K0-K5 were available from Honda only as parts
(arm 28300-300-000, joint 28241-300-010, etc),
not available as complete assemblies,
but appear to use the same as K6 models.
K6: 28240-300-000.
K7-K8: 28240-392-000.


All list the replacement rubber Honda 750 kickstart rubber as part 28311-329-000.


Did you know:
Honda 750A Hondamatic models have no
kickstarter visible; kept strapped under seat,
emergency kickstart lever 28240-393-000 or
28240-393-770 is stored, used on left side of engine,
plugs on mount under cap forward of left footpeg
in exact center of right photo block below 76-78.
Honda 750 automatic kickstart lever   Honda 750 automatic kickstart location just forward of left footpeg



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 oil pan

Salvage-yard and Internet searchers:
103. Which oil pan is correct for
US 750 K-models 1969-1978?


Honda 750 oil pan

If you strip out the drain plug threads, or otherwise damage the pan,
sometimes replacing the oil pan is better than fixing it.


There are three different K-model oil pan part numbers.

K0 (up to 1007414, the final sandcast model): 11210-300-040.
K0 (from 1007415): 11210-300-050.
K1-K6: 11210-300-050, superseded by 11210-300-060.
K7: (up to 2731487) 11210-300-050.
K7: (from 2731488) 11210-300-060.
K8: 11210-300-060.



Insider Tip: The ten 6mm oil pan bolts are not all the same length.
There are three different lengths of pan bolts.
During disassembly, label/list where each bolt is to be returned to.



Insider Tip: During disassembly, note which of the pan bolts is
securing the flat cable/cord clamp ('cord cramper') 32111-300-000.




All of these pans use the same 12mm drain bolt and washer.

Honda 750 oil drain bolt 92800-12000       Honda 750 oil drain bolt washer 94109-12000
Honda 12mm drain bolt 92800-12000
12mm drain bolt washer 94109-12000



Insider Tip: Inspect the drain bolt when considering the purchase of a bike.
Some owners, after stripping out the drain plug,
have sealed it up and then try to quickly sell the bike.



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 front sprocket area case protector 11353-300-010

104. "What is this piece of metal near
my 1970 750's front sprocket?
It's hidden under the sprocket cover.
My 1973 750 doesn't have it."


Honda 750 case protector 11353-300-010

Like a mini-chainguard, it is a 'case protector'.


Part number 11353-300-010, it was used due to chains breaking and then damaging cases.
First K0 engine was 1000001. This part came on K0 engines
from 1026144 through 1044805 (the last K0 engine, mid-1970).
Some 750 owners are said to have added this to later models.


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 front sprocket cover

Salvage-yard and Internet searchers:
105. With six different versions,
which front sprocket cover is correct
for US 750 K-models 1969-1978?


Honda 750 front sprocket cover 11351-300-060

Known as a 'left crankcase cover', there are six
different K-model front sprocket cover part numbers:
K0:
(up to 1026143) 11351-300-020
K0:
(from 1026144 through 1044805) 11351-300-040
(same engines that used the inner case protector)
K1-K2:
11351-300-050
K3-K6:
11351-300-060
K7:
(up to 2720012) 11351-405-000
K7: (from 2720013) 11351-405-010
K8:
11351-405-010


Does your sprocket cover Honda 750 front sprocket cover notch for wires use this notch for wiring?



Insider Tip:
Compare the lengths of the mounting Honda 750 front sprocket cover differences 'extensions' to those on your old part.




1977-1978 Honda 750F Super Sport models use a
black front sprocket cover, part number 11351-410-010
.



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 cylinder head cover 12310-300-060

Salvage-yard and Internet searchers:
106. With four different versions,
which cylinder head cover (aka 'valve cover')
is correct for US 750 K-models 1969-1978?


12310-300-060 Honda 750 cylinder head cover


There are four different K-model
cylinder head cover part numbers:
K0-K3:
12310-300-040, superseded by 12310-300-060
K4:
(up to 2304500) 12310-300-040, superseded by 12310-300-060
K4:
(from 2304501 to 2357330) 12310-300-050, superseded by 12310-300-060
K5-K7:
12310-300-060
K8:
12310-405-600


Note: 1977-1978 Honda 750F Super Sport
models use a black cylinder head cover.
1977 F part number 12310-410-010.
1978 F part number 12310-410-600.


Do you have an oil leak or seepage ABOVE the head (below this cover)?
Usually, this is the one-piece 'valve cover gasket' aka 'cylinder head cover gasket'.

Good news-- many don't know that it can be changed with the engine in the frame!
There is a YouTube video that shows the steps.
Be careful-- it is easy to put the gasket on backwards.

Also see section #66.



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 clutch cover

Salvage-yard and Internet searchers:
107. Which chrome outer clutch cover is correct
for US 750 K-models 1969-1978?


Honda 750 clutch cover 11348-300-010

Shape is to clear the kickstart lever.

There are two different K-model
clutch cover part numbers:

K0-K5: 11348-300-010
K6 (up to 2429099): 11348-300-010
K6 (from 2429100): 11348-392-000
K7-K8:
11348-392-000


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  cylinder head cover breather Honda 750

Salvage-yard and Internet searchers:
108. With four different versions,
which head cover breather is correct
for US 750 K-models 1969-1978?


Honda 750 cylinder had cover breather   breather cover on a Honda 750 1978

There are six different K-model
head cover breather part numbers:

K0 (up to 1010337): 12321-300-010
K0 (from 1010338): 12321-300-020
K1-K2: 12321-300-020
K3-K6: 12321-300-030,
alternate 12321-300-305.
K7: (up to 12321-300-040) 12321-300-040
K8: 12321-405-600



Note: 1977-1978 Honda 750F Super Sport
models use a black head breather cover.
1977 F (up to 2612797): 12321-410-000,
superseded by 12321-410-600.
1977 F (after 2612797): 12321-410-600
1978 F: 12321-410-600.



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 with Harley 16" rear rim

(This is a question we often receive)
109. "I see old Honda 750 K-models listed for
sale that tell of having Harley rear wheels.
What model Harley were these wheels
taken from, and what is the benefit?"


   Honda 750 with lowering blocks and Harley rear rim  Honda CB750 with Harley rear rim  16" Harley rim on a Honda 750 hub

They aren't really actual wheels taken from Harleys!

First, the 40 spokes of the 1969-1976 Honda 750's 18" rear wheel are cut.
Then a wide 16" chrome rim is laced to the 750's hub using
shorter spokes (often from Buchanan's in Azusa California).
This lowers the rear end and the seat height, allowing for being
flat-footed at stoplights for many who used to be on their toes.

Note: for 1977-1978 K-models, Honda used a
shorter & wider 17" rim for the rear wheel.
This is a little shorter than the earlier models' 18",
and it is a little taller than the 16" 'Harley' conversion.
.


Insider Tip: changing to this type of wheel/tire usually causes higher
engine RPM on the highway. This can be offset some by a sprocket change.

Insider Tip: changing to this type of wheel/tire sometimes
prevents the kickstand from working properly.
Some owners report success in changing to the
slightly-shorter kickstand from a smaller model
Honda twin of the same era, such as a CB-350.

Insider Tip: changing to this type of wheel/tire usually
makes it harder to get the bike up on to its centerstand.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 front turn signal stem

Salvage-yard and Internet searchers:
110.
Four different front turn signal mountings
were used for US 750 K-models 1969-1978.


All are chromed and hollow, letting wire run through them.

Known as signal 'stems', signal 'stalks', and 'winker bolts'.

K0-K2 Honda 750 front turn signal stem 1969-1972 90154-268-670
Uses 10mm flat washer 94101-10200 and 10mm spring washer 94111-10000


K3-K4 Honda 750 front turn signal stem 1973-1974 90154-341-670
Uses 12mm spring washer 94111-112-000 and hex nut 94001-120-0002


K5-K6 Honda 750 front turn signal stem 1975-1976 90154-374-670
Uses 12mm spring washer 94111-12000 and 12mm thin nut 94002-12000


K7-K8 Honda 750 1977-1978 front turn signal mount built into headlight holders



Turn signal information at Quick Tips:
5 (headlight area photos),
7 (rear turn signal mounts),
16 (turn signal lenses and turn signals),
65 (chrome grab bars) and
110 (front turn signal mounts)!


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 oil pump

Salvage-yard and Internet searchers:
111.
Honda shows the same oil pump part
number for all US 750 K-models 1969-1978.


15100-300-000 Honda 750 oil pump oil pump Honda 750 1969-1978

All list 15100-300-000.


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 rear fender rubber plug

112.
Why is there a rubber plug near the end of the rear fender?

What is 90899-283-000 rubber cone plug it for?            Honda 750 rear fender rubber cone

cone plug Honda 750 rear fender

In some areas, it is said to be a license plate stopper.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 gauge faces

113.
Gauge faces, US Honda 750 K-models


K0>Honda 750 speedometer gauge gace K0 1969-1970
K1>Honda 750 speedometer gauge face K1 1971
K2-K3>Honda 750 speedometer gauge face 1972-1973
K4-K5>Honda 750 speedometer gauge face 1974-1975
K6>1976 Honda 750 K6 gauge faces

K7-K8> Honda 750 K7-K8 1977-1978 gauge faces

Gauge face photos above are courtesy of Marcel at www.CB750faces.com,
who does gauge restorations and supplies gauge parts.
Smaller/sharper versions of these gauge face photos are way above at Quick Tip #13.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 air filter case

114.
Air cleaner cases, US Honda 750 models
('cases' are the upper half of the assembly;
the bottom half is known as the air filter cover)


Honda 750 red air filter case 17214-300-040CM  Honda 750 air filter case black 17212-341-000  Honda 750 air filter case blue 17214-300-040AZ


Here is a general list of air filter housing cases (top halves):
K0 1969-1970 year models, housing is often same color as gas tank and side covers,
through frame #10444649 which is the last K0 frame: 17214-300-040-(color code here).
17214-300-040AZ: Candy Blue Green
17214-300-040CM: Candy Red
17214-300-040CQ: Candy Gold
K1 1971 year model, black only, beginning with frame
1044650 which is the first K1 frame: 17212-300-030B.
K2-K6 1972-1976 year models, black only: 17212-341-000.
K7 1977 year model, through frame 2731019,
black only, with top hose port: 17240-405-305.
K7 1977 year model, beginning frame 2731020,
black only, with top hose port: 17240-405-315.
K7-K8 1977-1978 year models, black only, with top hose port: 17240-405-315.


SuperSport F 1975 year model, black only: 17240-392-000,
superceded by 17240-392-305 (same as early K7 model).
SuperSport F 1976 year model, black only: 17240-392-305.
SuperSport F 1977-1978 year models, black only:
17240-405-315 (same as late 77 and 78 K models).

Insider Tip:
The 'smog port' was used on all years of F air filter cases above,
and also on 77-78 K air filter cases.

Need to replace the rubber gasket between the upper and lower halves?
Part #17221-341-000 air filter gasket Honda 750 for K1 through K6.
This gasket is known as 'Packing, air cleaner'.

Insider Tip:
replacing this gasket where it was missing often eliminates some poor running.



Note: there was an emissions change (an intake port added)
for 1977-1978 K,F, and A models, as well as on 1976 A models.
Honda 750 air filter top with smog 1977-1978 Honda 750 air box emissions
smog Honda 750 air filter top 77-78



For convenience, here is also a general list of air filter housing 'covers' (bottoms):
K0 1969-1970 year models, housing is same color as gas tank and side covers,
through frame #10444649 which is the last K0 frame: 17231-300-020-(color code here).
K1 1971 year model, black only, beginning with frame 1044650 which is the first K1 frame: 17231-300-030B.
K2-K6 1972-1976 year models, black only: 17231-341-010.
K7-K8 1977-1978 year models, black only: 17231-392-000.

SuperSport F 1975-1978 year models, black only: 17231-392-000 (same as 77-78K).



More air filter information at Quick Tips 2 and 48!


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 smog emissions parts

115.
Emissions 'smog' parts, US Honda 750 models

1976 to 1978, emissions-reducing parts were added.
So besides power-robbing cam and
ignition timing changes, and leaner carburetion,
there were now 'smog' parts added to the
bikes such as these examples below:


   Honda 750 emissions 17360-405-000 smog part Honda 750 1978 F SuperSport
smog part Honda 750smog parts Honda 750 1978 K


Besides related vacuum hoses, there were solenoid valves, check valves, breather chambers and more.

Note: there was also an emissions change on the top of the air filter box
(an intake port added)
for 1977-1978 K,F, and A models, as well as on 1976 A models.
smog Honda 750 air filter top 77-78


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 original tires

116.
Original factory tires, US Honda 750 K-models
(and sizes for F-models and A-models also below)

Honda 750 rear tire front tire CB750

1969-1976 K-models: 4.00 x 18 on the rear, 3.25x19 on the front.
1977-1978 K-models: 4.50 x 17 on the rear, 3.50x19 on the front.

Factory original tires were typically Bridgestone and/or Dunlop.

Typically block tread rear, ribbed tread front.


Example of tire models from a portion of a CB750 rear fender sticker:
Honda 750 original factory tires

Note: Hondamatic A-models used 4.50x17 rear, 3.50x19 front.

Note: SuperSport F-models used 4.00x18 rear, 3.25x19 front.


Insider Tip: Watch for these 3 possible markings on sidewalls of new tires:

Red dot (or a tire with both a red and a yellow dot)
--
red dot is lightest part of this tire, goes at wheel valve stem.

Yellow dot--
Yellow dot is lightest part of this tire, goes at wheel valve stem.


Directional arrow--
Usually points in direction of tire rotation
(see tire manufacturer for any exception to this).

______________________

TIRE SURVEY:
Because many ask me
"Tire sizes are different now-- which should I use nowadays?",
I asked many CB750 riders. Here is a summary of their answers.


69-76 K models:
By far most common>Rear- 110/90-18 (like a 4.00X18).
Rear: 120/90-18
(like a 4.50 X 18, feels good on straight
but less good than a 110 on turns).
Rear- 130/90X18
(like a 5.10X18,

very wide, barely fits, poor on turns).
Front- 100/90-19

77-78K models:
Rear: 120/90X17 or 130/90X17
Front: 100/90X19 or 110/90X19


Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 inner clutch cover

117.
Inner clutch cover, US Honda 750 K-models

Honda 750 inner clutch cover

Sand-cast models had 9 outer screw holes; all others after had 10 outer screw holes.
(tenth hole is under where clutch cable enters this cover)

Sandcast K0 (up to 1007414): 11342-300-040
K0 (beginning with 1007415): 11342-300-050
K1-K4: 11342-300-050 (superceded by -060)
K5-K8: 11342-300-060



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 warning stickers

118.
Some part numbers for
warning/service decals and labels
,
US Honda 750 K-models

warning sticker sheets on Ebay for Honda 750

Insider Tip: some clear-background decals had 'variants', almost like a 'reversal image';
clear letters on black backgrounds, or black letters on clear backgrounds, or clear using white.
Also, some were in different languages and/or in multiple languages.


Originals and reproductions are available for most.


K0

K0: (rear fender, from 1013419) Tire Mark Caution Label 87505-300-670

K0: (oil tank cover, up to1044649) Engine Oil 87125-300-000


K1

Honda engine oil sticker
K1:

K1:



K2


K2: (rear fender) Tire Mark Caution Label: Important/ Information/ Model CB750/ Tire Pressures/ Capacity Load 87505-341-670
tire sticker Honda 750

K2: (gas tank, from 1103001) Drive Caution Label: Remember/Preserve Nature/Always Wear A Helmet/Think Safety 87560-323-670A/ZA

Honda engine oil sticker
K2: (oil tank cover, from 1044650) Engine Oil/ Grade 10W40 or 20W 50/ 3.5 (7.4 US pints/Change oil and check filter every 3000 KM (2000 miles) 87125-300-010


K3
Honda engine oil sticker
K3:
K3:


K4
Honda engine oil sticker
K4:
K4:



K5


tire sticker Honda 750

K5: (gas tank) Drive Caution Label: Remember/Preserve Nature/Always Wear A Helmet/Think Safety 87560-323-670A/B/ZA
K5: (rear fender) Tire Mark Caution Label: Important/ Information/ Model CB750/ Tire Pressures/ Capacity Load 87505-341-670/671
K5: (oil tank cover) Engine Oil/ Grade 10W40 or 20W 50/ 3.5 (7.4 US pints/Change oil and check filter every 3000 KM (2000 miles) 87125-300-010

Honda 750 helmet sticker  Honda engine oil sticker


K6

K6: (gas tank) Drive Caution 87560-375-680A/ZA
tank warning sticker Honda 750  Honda 750 fuel tank warning
K6: (oil tank cover, 5 lines) Engine Oil/ Caution/ See owner's manual/ When change or add oil do not overfill/
Engine oil 3.5 3.7 US quarts/change oil and check oil filter every 3000 km (1500-2000 mile) 87125-392-771
Honda 750 oil caution decal
K6: (by exhaust area) 87504-028-670
Honda 750 exhaust sticker 87504-028-670
K6: (on inner rear black plastic fender, 2 decals) Warning Label Accessories and Loading 87512-371-670; and Battery Caution Mark 87506-341-670
Honda 750 accessory decal 1976  battery warning sticker Honda 750 1976
K6: (on inner rear black plastic fender, 2 decals) Warning Label Accessories and Loading 87512-371-670; and Battery Caution Mark 87506-341-670
Honda 750 warning caution stickers 1976 inner rear fender



K7

K7:
K7:



K8

K8: (gas tank) Drive Caution 87560-375-680ZA/ZB/ZE/ZF
1978 Honda 750 gas tank label
K8: (tire caution mark) 87505-405-670
K8: (oil tank) 87125-392-771
Honda 750 oil caution decal
K8: (warning accessories and loading) 87512-371-670
K8: (inner fender) 87506-405-770
K8: (exhaust) 87504-028-670
Honda 750 exhaust sticker 87504-028-670




Insider Tip: some clear-background decals had 'variants', almost like a 'reversal image';
clear letters on black backgrounds, or black letters on clear backgrounds, or clear using white.

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 supersport F-model muffler

119.
Chrome mufflers, US Honda 750F SuperSport models

The original Honda chrome muffler attached on to the Honda 4-into-1 exhaust header.

Honda 750F 1975 SuperSport muffler<75/76F  Honda 750F 1978 supersport muffler<77/78F

1975-1976 Honda 750F muffler: 18310-392-000

1977-1978 Honda 750F muffler: 18310-410-671 (-671 superceded by -677)

Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 comstar wheels 1977-1978F

120.
Comstar 5-'spoke' wheels

on 1978 A Hondamatic models
and on 1977-1978 US F 750 SuperSport models
(no US K-model 750 1969-1978 had Comstar wheels)

comstar rear wheel 1978 Honda 750A Hondamatic < 1978 A-model > front Comstar wheel 1978 Honda 750 automatic

comstar wheel Honda 750F 1978  < 1977 and 1978 F-model > comstar front wheel Honda 750F 1978 SuperSport

1978 A-model US HondaMatic 750A:
basic 17" rear drum brake wheel, no hardware
or attachments: wheel 42660-410-670.
basic 19" front wheel, no hardware or attachments,
uses one disk rotor: wheel 44660-410-670.


1977-1978 F-model US SuperSport 750F:
basic 18" rear disk brake wheel, no hardware
or attachments: wheel 42660-393-780.
basic 19" front wheel, no hardware or attachments,
uses two disk rotors: wheel 44660-410-670.


The many assembled wheel parts together appear to become 5 'spokes'.


The '77-'78 F-model Comstar rear wheel has a rear disk brake;
the '78 A-model Comstar rear wheel has a drum brake.

The '77-'78 F-model Comstar front wheel uses dual disks;
the '78 A-model Comstar front wheel uses a single disk.



Insider tip: same part number for the front wheel of all three bikes.

Front Comstar Honda 750 comstar wheel 1977-1978 A and F models



Rear Comstar rear Comstar wheel 1978 Honda 750A Hondamatic 1978 750A Automatic

Rear Comstar Honda 750F comstar rear wheel 1977-1978 SuperSport 42660-410-670 1977-1978 750F SuperSport


Insider tip: Check for any loose rivets. Check for cracks near joints.


Insider tip: Although the A and F Comstar basic front wheels are the same,
their front wheels use different disk rotors (see Quick Tip 58).




ComStar front wheel center 1978 Honda 750F <front      rear> Comstar rear wheel center 1978 Honda 750F
Center hub areas, 1978 Honda 750 F SuperSport Comstar wheels



The black plastic Comstar black plastic rivet cover 1978 Honda 750F rivet covers
Front and rear Comstar wheel rivet covers look very similar
but they are different and they will not interchange.

They are known by Honda as 'Spoke Plate Marks'.
On their inner side, each has two small nipples that insert
into these holes Honda 750 comstar rivet holes on the wheel in between the rivets.
Front: 44703-410-003 (a wheel uses ten of these)
Rear: 42703-410-003
(a wheel uses ten of these)


Comstar wheel  comstar wheel weight balancing weights
20g: 42705-410-000    30g: 42706-410-000


Insider Tip: using tire irons on these rims when changing a tire can damage the rims.
Honda offered Comstar Rim Protectors (possibly 07772-0020200 / 07772-002020),
and there are also after-market rim protectors available.



Note: Involves transition models. Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 cam 1969-1978 camshafts

121.
Camshafts, for all US Honda 750 models K, F, and A!

cam Honda 750 14101-300-020

Honda lists only 2 K-model cam part numbers:
For K0-K6 it is 14100-300-020, and for K7-K8 it is 14101-392-000

This does not mean that all cams 1969 through 1976 were the same.
They weren't. There were many changes.

As with some many other Honda parts,
whenever a cam was slightly changed for a next year model,
it used the same part number of the old part and it then completely replaced the older part.
The newest part is said to be 'backward-compatible' with all years.
And the newest part will work, but possibly causing different characteristics.

So, if you want a duplicate of your original K-model's cam original lift and duration
(exact valve open and close time), you may have to seek a verified-year
used part and/or bring lobe-measuring tools such as calipers.

cam for Honda 750K 1977-1978 14101-392-000


Honda lists 2 F-model SuperSport cam part numbers:
For 75-76F it is 14100-392-000, and for 77-78F it is 14101-410-000.


Note that according to Honda part numbers,
the K7 and K8 models use the cam from the 75-76 F model!


Different markings are observed on various used Honda 750 camshafts,
including 'R' numbers near the sprocket area.



Honda lists just one A-model Hondamatic cam part number as available:
For 76-78A it is 14101-393-000.


Note: Involves transition models. This section is not all-inclusive to cam variations.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 rear brake light switch

122.
Rear brake pedal stoplight switches
and their return springs-- and their mounting brackets,
for all US Honda 750 1969-1978 K-models


Honda 750 rear brake pedal light switch

Rear brake light pedal switches are also known as
'stop lamp switches' and a 'stop switch assemblies'
.

There were three different switches,
two different springs, and two different brackets.



K0-K1 switch: 35350-292-003, superceded by 35350-KJ9-405
(same 336/KJ9 switch is also used brake light switch Honda 750 on many other Honda models)
K2-K6 switch: 35350-336-000, superceded by 35350-KJ9-405

K7-K8 switch: 35350-086-721, superceded by 35350-GB2-505

Honda 750 rear brake light switch


K0-K6 rear brake pedal light switch spring: 35357-300-000
(same spring is also used on Honda 750 brake light spring many other Honda models)
K7-K8 rear brake pedal light switch spring: 35357-393-000




K0-K6 stop switch bracket: 50156-300-020
Honda 750 rear brakelight switch bracket
K7-K8 stop switch bracket: 50146-392-000


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 front wheel hub

123.
Front wheel hub for US
Honda 750 1969-1978 K-models


front wheel hub for Honda 750

There were three different front wheel hub
part numbers during these model years.



K0: 44601-300-030

K1-K6: 44601-300-040
(same hub is also used on a few other Honda models)

K7-K8: 44601-405-000


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 rear wheel hub

124.
Rear wheel hub for US
Honda 750 1969-1978 K-models


rear hubs Honda 750 1969-1978

There were four different rear wheel hub
part numbers for these model years.



K0: 42601-300-020

K1 up to 1073285: 42601-300-020
K1 from 1073286: 42601-300-030

K2-K5: 44601-300-030

K6: up to 2560085: 42601-300-030

K6: from 2560086: 42601-300-040

K7-K8: 42601-300-040


Every model above now uses the same
superceded part number: 42601-300-050


Insider Tip: some changed
mid-model-year,
not just at start of a new model-year.


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 spark advancer 1969-1976 30220-300-005

125.
Spark Advancers, for all US
1969-1978 Honda 750 models K, F and A

Honda 750 spark advancer front view  Honda 750 spark advancer rear view

Found under the points/condensors plate.

Honda lists only 2 K and F model spark advancer part numbers:
For 1969-1978 K&F it is 30220-300-005, and alternate/supercede is 30220-300-154.

This does not mean that all K&F spark advancers 1969 through 1978 were the same.
They weren't. There were many differences through the model years.

As with some many other Honda parts,
whenever a spark advancer was slightly changed for a next year model,
it used the same part number of the old part and it then completely replaced the older part.
The newest part is said to be 'backward-compatible' with all years.
And the newest part will work, but possibly causing different characteristics.

So, if you want a duplicate of your original K or F model's spark advancer configuration
(exact springs, exact weight of the weights, exact markings,
exact strength of springs, exact degrees of advance,

exact time when the full advance occurs, exact advance-stopping nubs, etc),
you may have to seek a verified-year used part and/or
use close inspection with measurements.

Honda 750 spark advance timing markings



Insider Tip: most old spark advancers can be
cleaned up, lubed, and have their springs rehabbed.



Three commonly-needed hardware pieces related to some Honda 750 spark advancers:

1. 'Special (recessed & slotted) Washer' 30233-300-000 Honda 750 spark advancer special washer 30233-300-000,

2. 'Advancer Shaft' 30231-300-010 Honda 750 spark advancer shaft 30231-300-010, and

3. 'Oil Felt' Honda 750 oil felt for points lubrication 30205-003-005 / 30205-300-154.



Honda lists only 2 A (Hondamatic) model spark advancer part numbers:
For 1976-1978 A it is 30220-323-004, and alternate/supercede is 30220-377-154.


Note: Involves transition models. This section is not all-inclusive to all spark advancer variations.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 left-side handlebar switch with mute button

126.
"Mystery switch button!
In a box of supposedly Honda 750 handlebar switches,
I found a really odd left-side one.
Besides the turn-signal switch and the horn button, it's got
a mystery extra button added underneath the horn button!
I have had many Honda 750s from 1969 to 1978,
and none had a switch like that".


stop turn buzzer Honda 750 K2 1972   buzzer off switch for K2 Honda 750

The K2 model was the first US CB750 with a turn-signal buzzer.
This button (above) is to mute the buzzer when sitting at a stoplight.
The switch with the special mute button was only used for the K2 model year.

Part number 35250-341-672. Some early-K3 owners report having that switch too.
See Quick Tip 86 above for more information.


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 chain adjusters 1969-1978

127.
Chain adjusters, for all US
1969-1978 Honda 750 K-models


Used to adjust the angle of the rear axle/wheel
and to adjust the slack of the drive chain.


Two main types. K0 through K6 were the same; the K7-K8 adjusters were different.
The one obvious difference on the sides helps to spot the correct set to use!


Honda 750 chain adjuster 69-78 95014-19000<K0-K6 Honda 750 chain adjuster 1977-1978 40543-405-00 40543-392-000<K7-K8

Both had a round hole on the sides of the body, for the axle.
K0-K6 also had an oblong 'window' hole on the sides of the body.

K7-K8 did not have that second hole.

Chain adjuster 'body', K0-K6: 95014-19000
Chain adjuster 'body', K7-K8: 40543-405-000, superceded by 40543-392-000

All years used the same adjuster bolt: 90119-300-000.
All years used the same 8mm adjuster bolt locknut: 94002-080000S


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  rear axles Honda 750 1969-1978

128.
Rear wheel axles, for all US
1969-1978 Honda 750 K-models


Honda 750 rear axle 42301-300-010

K0, up to 1044649: 42301-300-000
K1-K2, beginning 1044650: 42301-300-010
K3 Honda 750 rear axle 1973
K3-K5: 43201-300-020
K6: 42301-300-010 (same part number as K1-K2)

K7-K8: 42301-393-000, superceded by 42301-425-970

(part numbers are for bare axles only-- no spacers, nuts or adjusters)

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 front axle

129.
Front wheel axles, for all US
1969-1978 Honda 750 K-models


44301-300-000 Honda 750 front axle 69-76

K0-K6 front axle: 44301-300-000, superceded by 44301-425-870
K7-K8 front axle: 44301-393-870, superceded by 44301-425-870

(part numbers are for bare axles only-- no spacers or nuts)


Honda 750 front axle nut 90305-300-000Honda 750 front axle nut

K0-K6 front axle nut 90305-300-000, superceded by 90306-425-870
K7-K8 front axle nut 90306-333-000, superceded by 90306-425-870

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  motorcycle registration tubes clear

130.
License plate registration holders,
for all US 1969-1978 Honda 750 K-models


Rarely used in the last 40 years, in some states these
non-Honda-item clear plastic tubes were mounted across
two license plate bolts to hold the registration.
After the K0-K2 years, popularity faded away.

Most state vehicle codes no longer require
that motorcycles have registration displayed.


Honda 750 registration tube on license plate

Never issued by Honda, this was an after-market item.
They are still available, known as 'registration tubes',
'stash tubes' and 'motorcycle registration tubes'.


motorcycle registration in clear tube on license plate

Often sold wide, you trim tube to needed length and then put end-cap back on.

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 dipstick oil cap

131.
Oil cap / dip sticks, for all US
1969-1978 Honda 750 K-models



Honda 750 dipstick  oil cap Honda 750

K0-K6: 55105-300-010 (uses a gasket)


K7-K8: Honda 750 oil gauge level dipstick 55105-392-000
(uses a 23mm o-ring)




Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  front axle holders Honda 750

132.
Front axle holders, for all US
1969-1978 Honda 750 K-models


Honda 750 front axle holders

K0-K2 front axle holder 51634-292-000, superceded by 95014-41000.

K3-K8 front axle holder 95014-41000
.

CB750 front axle holders     front axle holders CB750


Insider Tip: markings on Honda 750 front axle holders Watch for any markings.




WARNING:

If installed improperly these can cause a dangerous situation, injury and death.



Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 rear foot peg differences

133.
Rear foot peg differences for all
US 1969-1978 Honda 750 K-models


Also known as passenger foot pegs,
there were three different rear foot-peg styles.

Honda refers to these as 'pillion (passenger seat) steps'.


K0-K4: a square-shape
(used on many Honda models of this era and even older)

Honda 750 rear footpeg 1969-1974Honda 750 rear footpeg 1969-1974
Uses replacement rubber 95011-31000


K5-K6: a rounded-shape
rear foot peg rubber Honda 750 1975-1976Honda 750 rear foot peg 1975-1976rubber for Honda 750 footpeg 50716-371-660
Uses replacement rubber 50710-377-000,
superceded by 50716-371-660



K7-K8: a rounded-shape
Honda 750 rear foot peg 1977-1978Honda 750 rear footpeg rubber 1977-1978 50710-405-000
Uses replacement rubber 50710-405-000

|


Note:
Some model-year metal peg mounting
brackets were straight, some were angled.
And for the K5-K6 model years, the metal left-side
and right-side peg mounting brackets were different.



Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com



Quick Tip Honda 750 1969-1978  Honda CB750 foot pg rubber differences

134.
Front foot peg rubber differences
for all US 1969-1978 Honda 750 K-models


Known by Honda as 'step rubbers',
there were three different front rubber types.



Honda 750 front footpeg K6 1976K8 1978 Honda 750 front foot peg




K0 (up to 1044649):
50661-110-000, superceded by 95011-23000


front foot peg rubber Honda 750 1969-1970 K0



K1-K6: 50661-310-000

K1-K6 Honda 750 footpeg rubber



K7-K8: 50661-405-000

Honda 750 K7-K8 front foot peg rubber



K7-K8 front peg rubbers had a metal nub bracket bolted through the bottom of the rubber.

Honda 750 front foot peg rubber 1977-1978 K7-K8


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com



Quick Tip Honda 750 1969-1978  Honda 750 disk splash guard

135.
The only front disk rotor water splash guard
used on US 1973-1978 Honda 750 A, F and K models


Known by Honda as front 'disk guards', there was only one
model used for all US single-front disk models 1972-1978.


Honda 750 disk guard


Part number 45140-341-670 Honda 750 front disk rotor splash cover 45140-341-670
Used for 750 K-models K3 through K8,
750 F-models 1975-1976, and A-models 1976-1978.



Insider Tip:

Do you know why the dual-front-disk 1977-1978 Honda 750F SuperSport
models didn't
use front disk rotor splash guards, yet every other 1973-1978
Honda 750 model did?
Honda 750 constar whel
Because, only for these models, Honda mounted the brake calipers behind the fork legs.


Insider Tip: K0 to K2 models did not have a disk rotor splash guard;
it was added for the K3 model as an improvement.


Insider Tip: Sometimes we find a black plastic splash guard in a parts box marked Honda 750 that is not correct.
It usually turns out to be a 43140-410-000, which is for the rear wheel brake disk on some SuperSport F models.

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  80105-341-000 Honda 750 inner rear fender B

136.
Hidden under the seat, so ignored by some restorers:
the black plastic 'Rear Fender B' used on
US 1969-1978 Honda 750 K models


80105-341-000 rear Fender B CB750Honda 750 black plastic inner fender B with stickers

Honda used four different part numbers.

K0, up to 1044649: 80105-300-000

K1, from 1044650: 80105-300-010
K2-K5: 80105-341-000
K6, up to 2557627: 80105-341-000

K6, from 2557628: 80105-341-010
K7-K8: 80105-341-010

Honda 750 black plastic inner rear fender B

Note:
different warning/caution stickers
were on this piece
depending on model year.

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 rear brake linkage parts

137.
Some of the rear brake linkage hardware
found at the rear end of the long brake arm stopper
and at the rear end of the long threaded brake rod
on US K-models K0-K8 1969-1978
(common parts we are asked for help on!)
rear brake linkage parts Honda 750

Honda 750 rear brake rod nut 95015-42000   Honda 750 rear brake barrel joint 95015-32001
Honda 750 rear brake spring 95014-73100   rear brake panel stopper arm bolt Honda 750 90133-286-000

Warning: stopper arm bolt at rear end of the arm
(shoulder bolt, bottom right photo, different during years)
requires that you also use the correct metal
and rubber washers, hex nut and cotter pin.
If not done correctly, can cause injury or death.
If not done in proper order with the correct
parts you have made a dangerous mistake.

Honda 750 rear brake arm cotter pin K0-K6 cotter pin
Above are enlarged photos of the usual cotter pins found.
Earlier K-models usually are found with shaped pins at rear such as at left above,
newer K7/K8 models usually are found with straight pins at right that were bent to secure.
If not done correctly, can cause injury or death.
If you forget the cotter pin you have made a dangerous mistake.


Note: there is also critical hardware at the
front/forward ends of the long brake arm stopper
and of the long threaded brake rod.
If not done correctly, can cause injury or death.

TIP: take close-up photos of your own bike's brake
linkage hardware assembly before working on it.


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Quick Tip Honda 750 1969-1978  Honda 750 front wheel rim 19"

138.
Front wheel rims
(the chrome part that the front tire mounts onto)
Honda 750 front rim
US 1969-1978 Honda 750 K models

K0 through K7 models, and the first 14000 K8 models,
used 19" front rim 44701-300-013.
The final 22000 K8 models used 19" front rim 44701-405-771.


All K0 through early K8 front rims are superceded
to the final K8 front rim 44701-405-771.


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda 750 rear wheel rim

139.
Rear wheel rims
(the chrome part that the rear tire mounts onto)
rear wheel rim for Honda 750
US 1969-1978 Honda 750 K models

   K0 through K6 models used 18" rear rim 42701-300-013.

K7 through the first 14000 K8 models used 17" rear
rim 42701-405-003, superceded by 42701-405-771.


The final 22000 K8 models used 17" rear rim 42701-405-771.

    Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda 750 final drive flange rear sprocket carrier

140.
Rear sprocket carrier
(what the rear sprocket bolts to)
US 1969-1978 Honda 750 K models

front view, K0-K6> Honda 750 69-76 final drive flange Honda 750 final drive flange sprocket carrier K0-K6 <rear view, K0-K6

Known by Honda as a 'Final Flange'.

K0-K1: 42610-300-030, superceded by 42609-341-000.
K2-K6: 42609-341-000

Insider Tip: a tool with 4 pins makes it easier to remove the bearing retainer.


For K7-K8, Honda named Driven Flange Honda 750 1978 rear sprocket carrier it "Driven Flange".
K7-K8: 42610-405-000

  Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com




  valve caps Honda 750

141.
Valve adjuster caps
US 1969-1978 Honda 750 K models


Honda 750 K0-K8 valve adj capso-ring Honda 750 valve caps

Same cap and o-ring part numbers for all K-models 1969-1978


Cap, known as a 'tappet hole cap', uses eight, 12361-300-000
30.8mm o-ring, uses eight, 91302-001-020



Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


  Honda 750 luggage rack

Honda CB750 SOHC parts
This section was added because it is is a frequent request made by visitors to Honda750Expert.com!

142.
"Any tips for finding used luggage racks
for US 1969-1978 Honda 750 K models?"


Honda 750 luggage rack with back rest   Honda cb750 luggage rack   luggage rack Honda 750 1973


Honda did not produce a 'stock' or factory-available rack during that period.
But there were many aftermarket racks available, from companies such
as Amco,
Arthur Fulmer, Bates, Buco, Rack Factory and others.
Most current rack manufacturers were not yet established in the 1970s.

Most were chromed steel of square tubing or round tubing;
some such as Rack Factory were polished aluminum.

The main body/platform was solidly above the taillight.
Some platforms were dressed with wood, rubber or plastic inserts.

Arthur Fulmer Honda 750 luggage rack

Some also had sissy bars or padded backrests.
Backrests were either fixed for a passenger's use or
were adjustable to slide farther forward towards the rider.

Some were a one-piece rack.
Some racks used sides that bolted to the body/platform.

1978 Honda 750 luggage rack  luggage rack Honda 750 arthur fulmer

Exact-fit models usually used a front mount that
slipped under the rear shock's top nut and washer;

their more rearward mounts were typically either brackets
that attached near the rear turn signals on the
sides or was a single bracket that used a u-bolt at
the center rear of the grab rail behind the seat.


There were also less-preferred 'universal' racks that used an assortment of
adjustable mounts that let them be used on many brands of motorcycles.


Exact-fit models were different every couple of model years.
Some manufacturers said that their 1973 through 1976 K3-K6 were the same mounting.
Some said that their 1977 and 1978 K7-K8 used the same mounting as each other.
Racks for 1979 and later do not fit earlier Honda 750s.
Many racks are listed for sale on Google and eBay.



luggage rack Honda 750 1978  luggage rack Honda 750 1973


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda 750 4 into 1 exhaust systems CB750
Honda CB750 SOHC parts
This section was added because it is is a frequent request by visitors to Honda750Expert.com!

143.
"What were the most common vintage aftermarket
(non-stock) exhaust systems
; 4-into-1 systems, etc
that were used on US 1969-1978 Honda 750 K models?"


No Honda 750 K-model from this era came
from the factory with 4-into-1 or 4-into-2 exhaust.
All Honda 750 K-models of this era came with four separate exhaust pipes.

CB750 Kerker exhaust

The most common aftermarket exhaust systems found on 1970's 750 K-models include
(alphabetically): Dunstall, Hooker, Jardine, Jemco,
Kerker, MAC, Racecrafters, RC Engineering,
Strader, SuperTrapp, Triple A, Vance and Hines,
Winning Performance, and Yoshimura
.

Most were either chrome or black.
Some required 69-76 models to convert to the 77-78 bolt-into-head style.

Some 4 into 2s had you cut off the original mufflers and slip on the new ends.
Some 4 into 2s released exhaust straight out the back;
some were 'turnouts' releasing exhaust to the sides.

Some 4 into 1s required removal of the centerstand.
Some 4 into1s interfered with oil filter removal and/or oil draining.

The muffler on some 4 into1s used a mounting
bracket up to a rear footpeg or to a top shock nut.

Many 4 into 1s were near-copies of the Kerker above.
Some had removable/replaceable/repackable baffles.



Exhaust mounting at the head:
K0-K6 used a 'clamp-around'; K7-K8 used a 'clamp-in'.
Some 4 into1s require a change to K7-K8 style.



1969-1976> Honda 750 exhaust clamp Honda 750 K0-K6 < K0-K6          K7-K8> Honda 750 1977-1978 exhaust pipe clamp <1977-1978




More exhaust information above at
Quick Tip 41, Quick Tip 50 and Quick Tip 92!



Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


 Honda 750 mag wheels CB750

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

144.
"What aftermarket (non-stock) cast/'mag' wheels

were used on US 1969-1978 Honda 750 K models?"



No Honda 750 K-model from this era came from
the factory with cast wheels or 'mag' wheels.
All Honda 750 K-models of this era came with spoke wheels.


Types found were Lester (the most popular used in the US on 750s),
followed by (alphabetically) Curtis, EBP, Hayashi,
Henry Abe, Invader, Kimtab, Morris, and Shelby-Dowd.


Some brands required a changeover to rear disk brake.
There were also models available for SuperSport F-models.


Lester > CB750 Lester cast mag wheel  Honda 750 Lester mag wheel  mag wheel on a Honda 750 SOHC < Lester

Lester > cast alloy Lester wheels on 1975 Honda 750 SuperSport   Honda 750 Lester wheels < Lester


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


 Honda 750 Windjammer Wixom fairing

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

145.
"What aftermarket (non-stock) fairings
were most often used in the 1970's on
US 1969-1978 Honda 750 K models?"



No Honda 750 K-model from this era
came from the factory with a fairing.


By far, the two most popular upright-riding chest/face protecting fairings
(not the tiny 'cafe-racing fairings' used while riding bent over),
also called touring fairings, were Wixom and Vetter Windjammer.


Wixom > Honda 750 wixom fairing           vetter faring Honda 750 < Windjammer

Wixom was fork-mounted near the handlebars.
Windjammer was frame-mounted.


Wixom had cut-outs for the 750's own headlight and front turn signals.
Windjammer had its own built-in headlight and,
with later models SS and 4, had built-in turn signals.


Wixom > wixom fairing on a SOHC Honda 750  wixom fairing Honda 750  CB750 wixom fairing < Wixom

Wixom used no electrical wiring.
Windjammer plugged into wiring inside the 750's headlight shell.


Wixom > painted wixom fairing   wixom brothers fairing for Honda 750 < Wixom

Wixom used three short mounting brackets.
Windjammer had a mount that was first secured to the 750's frame,
then the Windjammer was bolted to (sits on) that frame mount.

Different height clear windshields were available for both.
Windjammer had vents available on some windshields.
Windjammer also had optional lower portions available to protect legs.
Windjammer also had storage pockets built in.
Some
pocket covers were cloth, some were hard lockable covers.


Windjammer > Windjammer Honda 750  Honda CB750 vetter windjammer  Windjammer CB750 < Windjammer

Wixom trivia: Wixom was the Wixom brothers Dean and Stan Wixom.

Windjammer trivia: Windjammer fairings were made 1971 through 1983;
models included l, 2, 3, SS, 4 and 5.
There were smaller Vetter fairing models too.
Complete Windjammer history,
and parts information, is at www.CraigVetter.com


Example of a Windjammer CB750 K1-K6 frame mount > mount for CB750 Vetter Windjammer

lockable Windjammer door < Example of a Windjammer lockable storage cover



Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


 paint color to match CB750

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

146.
"Honda doesn't sell CB750 paint.
What aftermarket (non-stock) paint

is available already to try to match the colors
used on some US 1969-1978 Honda 750 K models?"


CB750 Honda paint   Honda CB750 spray paint can

Most original internal Honda color-codes are not matchable
to numbers used by current paint manufacturers,
but there are some paint manufacturers that now have paint
ready to try to match the original Honda 750 colors for some models.


Here's the main headache to matching a Honda 'color' in one container:
Honda often got each original final color in two or three steps or 'stages'-
1. A special colored primer.
2. Then sometimes a special colored metallic or flake basecoat.
3. Finally, a special colored candy topcoat.


There are some suppliers offering what some CB750 owners have
said to be a good match to Honda's results for some colors
(some are in bulk, some are in rattle spray cans):

HondaMotorcyclePaint.com
ColorRite.com
RSbikePaint.com
CycleColor.com

HouseOfKolor.com


Use this list below as basic original US paint reference for color names:

1969-1970 US K-models
Candy Blue Green: color codes AZ and PB2C
(example of a Candy Blue Green part Honda 750 color code AZ showing 'AZ' color code)
Candy Ruby Red: color codes CM and R4C
(example of a Candy Ruby Red part Honda 750 color code CM red showing 'CM' color code)
Candy Gold: color codes CQ and Y2C
1971 US K-models
Valley Green Metallic: color codes EF and G21M
Candy Garnet Brown: color codes EE and YR2C
Candy Gold: color codes CQ and Y2C
Candy Ruby Red: color codes CM and R4C
1972 US K-models
Brier Brown Metallic: color codes LU and YR15MC
Flake Sunrise Orange: color codes LV and R2CF
1973 US K-models
Flake Sunrise Orange: color codes LV and R2CF
Candy Bacchus Olive: color codes LY and G5WC
Maxim Brown Metallic: color codes QQ and YR20MC
1974 US K-models
Freedom Green Metallic: color codes TC and BG1M
Flake Sunrise Orange: color codes LV and R2CF
Boss Maroon Metallic: color codes TD and RP9M

1975 US K-models
Planet Blue Metallic: color codes MV and PB27MC
Flake Apricot Red: color codes UE and R5CF
1975 F-model SuperSports
Flake Sunrise Orange: color code R2CF
Candy Sapphire Blue: color code PB3CC

1976 US K-models
Candy Antares Red: color code R-6C-S
1976 US F-model SuperSports
Sulphur Yellow: color code Y34
Candy Antares Red: color code R6CS
1976 US Automatic A-models
Muscat Green Metallic: color code G38MS
Candy Antares Red: color code R6CS

1977 US K-models
Excel Black: color code NH-57
Candy Alpha Red: color code R-9C-S
1977 US F-model SuperSports
Black: color code NH1
Candy Presto Red: color code R8CS
1977 US Automatic A-models
Candy Sword Blue: color code PB7C
Candy Presto Red: color code R8CS

1978 US K-models
Excel Black: color code NH-57
Candy Alpha Red: color code R-9C-S
1978 US F-model SuperSports
Black: color code NH1
Candy Presto Red: color code R8CS
1978 US Automatic A-models
Candy Polaris Blue: color code PB100CS
Candy Alpha Red: color code R9CS

Insider Tip: If you Google these two words: Lubritech CB750
you can obtain some paint info from a prior Honda paint supplier.


More paint information above at
Section 35 (Paint Color Choices)
and at Section 92
(Paint Color Codes)

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


 Honda CB750 engine hanger bolts

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

147.
Originally there were 3 long engine support bolts
used to hang the weight of the engine in the frame.
A previous owner instead replaced them with other
hardware to mount some brackets and guards.
What are the correct three long bolts to use?


Honda CB750 engine hanger boltsHonda 750 engine rebuild

Almost all were the same on US 750s 1969 through 1978.
They are known as Engine Hanger Bolts A, B and C.
Except for one, they were long shouldered bolts with
a hex head at one end and threads at the other end.

Hanger Bolt A is the front-most long shoulder bolt.
Hex bolt 90152-300-010, K0-K8.

Honda 750 engine hanger bolt
Uses the same 10mm hardware as Hanger Bolt C does:
10mm spring washer 94111-10000, 10mm hex nut 94030-10200.


Hanger Bolt B is the lower rear long bolt,
the thickest of the three hanger bolts, at the footpegs.

12mm Honda 750 engine hanger bolt
K0-K6: 90155-300-000, threads at both ends.
K7-K8: 90155-392-000, threads at one end.
Both use the same 12mm hardware:
12mm flat washer 94101-12000, 12mm spring
washer 94111-12000, 12mm hex nut 94030-12200
(K0-K6 uses 2 nuts each on this rod, K7-K8 uses one nut each on this bolt).


Hanger Bolt C is the upper rear long shoulder bolt.
Hex bolt 90156-300-000, K0-K8.

Honda 750 engine hanger bolt
Uses the same 10mm hardware as Hanger Bolt A does:
10mm spring washer 94111-10000, 10mm hex nut 94030-10200.



Insider Tip: most of these bolts for sale on eBay
are 'replicas', not original OEM Honda bolts.
Make sure that any bolt used is the proper grade/strength.

Insider Tip: usually installed through left side with the nuts on the right side.

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda 750 restoration

oil pressure switch CB750
14
8. Oil pressure switches for
US 1969-1978 Honda 750 K models


Installed on the upper crankcase halve, behind cylinders,
next to the cam chain tensioner and chrome starter motor cover.


K0
through K6 serial 2432459:
35500-300-000, superceded to 35500-333-014
K6 from serial 2432460, through K8:
35500-333-014, superceded by 37240P13013

Note: K0-K5 shows to also use washer 90545-300-000.
washer under Honda 750 oil pressure switch 90545-300-000

Note: You don't need to remove the cam chain tensioner to replace this.
But sometimes removing the chrome starter motor cover first helps.

Insider Tip:
do not use sealing tape on the switch threads.
It is taper-fit threaded, and tape could interfere with it grounding.


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda CB750 SOHC parts

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

149.
"What chrome crashbars or safety bars can be
found for US 1969-1978 Honda 750 K models?"


No public Honda 750 K-model from this
era came from the factory with crash bars.


There are two main types.

CB750 crash bar crash bar Honda CB750 Honda CB750 safety bars
Full-size. Is secured in front of engine at its upper to the frame
with u-bolts and at its bottom with frame/engine bolts.
Chrome; some had built-in footpegs or had clamped-on footpegs.



case savers Honda CB750 2 point mounting case savers Honda CB750 2 point mounting with extra case savers Honda CB750 3 point mount
Smaller engine guards. Known as 'case savers'.
Usually chrome, some were black.

The three main types of case-savers were:
(above, from left to right)
--2-point mounting (most common and lowest priced)
--2-point mounting with reinforcing
--3 point mounting (least likely to bend upward)


Honda 750 case savers Honda CB750 case savers
Honda 750 case savers
engine cards CB750

Several types of crash bars and case savers are still available new and used.

Most 2-point case savers were sold as 'Fits all 1969-1978 K,F and A models'.


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com




Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

150. "What gas tank stripes or decals were correct
for US 1969-1978 Honda 750 K models?"


blue gas tank honda 750 1969

Some years, tank stripes were the same regardless of tank color.

Other years, tank color determined with stripe to use.



K0-K1 models had stripes painted on their gas tanks.
K2 models were the first with decal stripes.
All later models used decals.


K0 (all used the same gold stripes)
Candy Blue Green tanks used gold stripes containing black pinstriping.
Candy Gold tanks used gold stripes containing black pinstriping;
some sources tell that black stripes were also used.
Some sources say Candy Gold with black stripe is K1.
Candy Ruby Red tanks used gold stripes containing black pinstriping.
Note: some K0/K1 restorers use decals, while some buy


K1
Candy Gold tanks used black stripes with tank color
showing between stripe and surrounding pinstriping
.
All other color tanks used the same gold stripes as KO models

K2
C


--More coming soon--


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda cb750 floorboards

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

151. "What aftermarket floorboards were available for
US 1969-1978 Honda 750 K models?"


 Triple A floorboards CB750 Honda CB750 floorboards

No public Honda 750 K-model from this era
came from the factory with floorboards.


--More information coming to this section soon--

Full-size with heel/toe shift linkage,
or footpeg-replacing small boards for both the rider and the passenger

Triple A was the primary full-linkage model

Police department CB750s often had floorboard set-ups.

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda CB750 parts

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

152.
Using a spin-on oil filter like a car
instead of the regular encased oil filter


No Honda 750 K-model from this era came
from the factory with a spin-on oil filter.


--Coming soon--


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


CB750 restoration

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

15
3. "What aftermarket saddlebags / sidebags were
available for US 1969-1978 Honda 750 K models?"


Honda CB750 saddlebags rearHonda CB750 saddlebags side

No Honda 750 K-model from this era
came from the factory with saddlebags.

Fiberglass or plastic were the most common types,
with supporting/mounting hardware

Bates, Shoei, Vetter, and 'soft' bags

Some had locking lids
Some required removal/relocation of rear turn signals

--More information coming to this section soon--


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda CB750 parts

154.
"What
front brake light switches were correct for
US 1969-1978 Honda 750 K models?"


Of the two types, the K8 was different one.

K0-K7: 35350-300-016/p
front brake light switch 69-77
Known as a 'stop switch'.
Mounted in the t
-joint (three-way joint) below the headlight,
a hydraulic switch, in the hydraulic line.
This same part was used on many other Honda motorcycle models with disk brake.


K8: 35340-393-771
frony brake light switch K8 1978 Honda 750
Known as a 'front stop switch'.
Up at the front b
rake master cylinder lever area.
A mechanical switch-- not in the fluid line.


Note: K7 models in some other countries used the K8 switch.


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


 CB750 restoration

Honda CB750 SOHC parts
This section was added because it is a frequent request by visitors to Honda750Expert.com!

155. "What aftermarket (non-stock) seats
were most often used in the 1970's on
US 1969-1978 Honda 750 K models?"



Honda 750 CB750 king queen seat    king queen seat for a Honda CB750 seat
No

King-Queen
B
ack support
plastic base / metal base / original base
Usually used ori
ginal hinges and seat lock plunger from stock seat

--More information coming to this section soon--

Note: regular orig
inal seat information is at Quick Tips 12!

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com


Honda 750 CB750 parts

Honda CB750 SOHC parts
This section was added because it is an occasional request by visitors to Honda750Expert.com!

156. "What aftermarket
fiberglass or resin bodies
were
found in the 1970's on US
1969-1978 Honda 750 K models?"


The Fiberglass Works
Tracy Design
Dunstall

--More information coming to this section soon--

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com



157

Honda CB750 SOHC parts
This section was added because it is an occasional request by visitors to Honda750Expert.com!

157. "What aftermarket
rear shock lowering blocks
were found in the 1970's on US
1969-1978 Honda 750 K models?"


They bolt to the bottom shock mounts
on the swingarm, moving the bottom
of the shock rearward two inches or so.

--More information coming to this section soon--

Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com



 158

Honda CB750 SOHC parts
This section is reserved for a request by visitors to Honda750Expert.com!

158.
This space is reserved for your request!


Note: Involves transition models.
Additional minor variations, changes and/or crossovers may have occurred within some shown or listed types.
Entire site and content © Honda750Expert.com



A photo from 1970: my dad's CB750 K0
CB750 1970 K0 honda750expert
Luggage rack with backrest, a crashbar,
and a paint-matched Wixom fairing.


A photo from 1976: my first CB750, a K2
two Honda 750s 1976



HERE IT IS!


red starred starred starred starred star


Honda 750 restoral guide, free from Honda750ExperDotCom

Honda 750 Buyer's Guide 1969-1978 US year-by-year
'US-sold model identification & US visible changes guide'

(Developed with my 40+ years of personal hands-on US CB750 experience and research,
including as a Honda factory-trained Honda dealership motorcycle mechanic in the 1970s and 1980s
!)
© Honda750Expert.com 8/2018

(With most PC computers and printers, Right-click on a blank spot
of this page to print out this entire website as your personal
nearly-300-pages 1969-1978 US Honda 750 year-by-year 'Buyer's Guide /
Model identification guide
' and 750 Restoration Guide to shop with.
With most computers and printers, RIGHT-click on a blank spot, then
choose PRINT). Not all printings will be as straight as website viewing.
PRINTING THIS ENTIRE WEBSITE WILL USE A LOT
OF INK AND NEARLY 300 PIECES OF PAPER!


It can also help as a visual US Honda 750
Honda 750 Restoration Guide 1969-1978

This copyrighted website is a valuable guide but is NOT all-inclusive;
there are minor variations and secrets NOT listed on this page.
Not all color options listed below were available in all areas.
Production/sales dates are approximate but close.


1969-1970 Honda 750 K0  53,000 made
US first release was June 1969
Honda 750 red 1972
America c
olors:
Candy Blue-Green (color code: AZ),
Candy Gold (color code: CQ),
Candy Ruby Red
(color code: CM)
--these were topcoat colors all over Candy Silver basecoats)--

(all used black-lettered tank emblems)
blue gas tank honda 750 1969Honda 750 gold tank black emblemred gas tank Honda 750 1969

Retail advertised price new was $1495,
but most sold new for $1800-$2000
Silver-colored caliper 69-70
caliper Honda 750 1969-1970
Acrylic plastic lenses on gauges 69-70
speedometer Honda 750 1969 plastic
Air-filter case same color as gas tank 69-70
Honda 750 air box blue
HONDA emblems on tank are black letters 69-70
tank emble, Honda 750 1969-1970
Mirrors have chrome acorn capnuts at top of stem 69-70
mirror acorn Honda 750 1969-1970
Warning lights in gauges 69-71
Honda 750 warning lights 1969-1971
Rear turn signals mounted to rear of frame top 69-71
                                      rear signal 750 honda
Plastic chain guard 69-71
plastic chain guard for Honda 750 1969-1971
Headlight shell and headlight holders
are same color as gas tank 69-71
Honda 750 headlight 1971
Seat latch does not require a key to open 69-71
seat latch on frame of 1971 gold Honda 750
Stripe high on gas tank 69-72
blue gas tank honda 750 1969
Ignition key below gas tank 69-76
1969-1976 Honda 750 ignition switch location
Choke lever on carb set 69-76
Honda 750 choke lever

100-link 530 chain 69-76
Heat-shields on upper exhausts 69-76
Chrome cover on rear shocks 69-76
Polished oil tank cap exposed 69-76
18" rear wheels 69-76
Stripe on tanks was either black or
gold depending on tank color 69-72
Some sources report gold stripes were used on
all K0 models including Candy Gold models

Honda 750 gold tank black emblem
530 sprockets 17 front / 45 rear 69-70
Wiring inside handlebars 69-76
1969-1976 Honda 750 handlebar center wiring hole
Dunlop Gold Seal tires,
4.00 x 18 K87 rear, 3.25 x 19 F6 front 69-70
'Ducktail' seat 69-70
Honda 750 ducktail seat 1969-1970
grips 1969-1971
correct handlebar grip for 1969-1971 Honda 750
front turn signals mounted parallel with headlight center 69-76
Honda 750 headlight 1971
chrome-cap horn 1969-1976
horn chrome Honda 750
swingarm has two push-in grease-fittings,
one at each end of the swingarm pivot bolt 1969-1975

swingarm grease fitting 1969-1975
©Honda750Expert.com
Honda Product Code: 300
Frame # CB750- 1000001 -
Engine # CB750E-1000001
-
(some warranty-replacement
engine cases had no serial number)


Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types
.


1971 Honda 750 K1  77,000 made
August 1970 to November 1971
(highest number sold)
Honda 1972 750 gold
America colors:
Candy Ruby Red (color code CM),
Candy Gold (color code CQ),
Valley Green Metallic (color code EF),
Candy Garnet Brown (color code EE),
--(these were topcoat colors all over Candy Silver basecoats)--

(all used white-lettered tank emblems)
red gas tank honda 750Honda 750 gold gas tankgreen honda 750 gas tankbrown tank Honda 750blue tank Honda 750
Alternate colors reported:
Polynesian Blue Metallic, Candy Blue-Green (Europe/Japan)

new: side covers smaller and no vents 71-76
orange
new: dual-cable throttle system 71-78
new: a stronger, black air filter box 71-78
black air box 1976 Honda 750
new: chrome '750-Four' side cover emblems 71-72
side cover emblem 1971-1972 Honda 750
new: glass lenses on gauges 71-78
new: black caliper 71-76
Honda 750 black caliper 1971-1976
new: HONDA emblems on tank are white letters 71-72
tank emblem Honda 750 1971-1972
new: front fender has a rolled edge 71-78
new: 3-tooth rear sprocket change,
now 530 17 front / 48 rear  71 only
new: mirrors no longer have acorn cap nuts 71-78
new: speedmeter increments of 20mph (20, 40, 60)
new: flat seat (non-ducktail) 71-76
©Honda750Expert.com
Honda Product Code: 300
1971 Frame # CB750-1044650 -
1971 Engine # CB750E-1044806 -

Honda 750 71

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


1972 Honda 750 K2   64,000 made
November 1971 to September 1972
1972 orange Honda 750
American c
olors:
Brier Brown Metallic (color code LU),
Flake Sunrise Orange (color code LV)
--Why bigger paint sparkles in Orange?:
because Flake Sunrise Orange (used 72-74) used a
Candy Orange topcoat color over a FLAKE Silver basecoat--


gold honda 750 gas tank black stripeorange tank Honda 750blue tank Honda 750
Alternate colors reported:

Silver Metallic, Candy Gold,
Purple Metallic
, Blue Metallic (Europe/Japan)

new: warning lights in a unit
on handlebar clamps 72-76
Honda 750 idiot lights
new: bigger tail light
tail light lens 1973 Honda 750
new: audible turn signal buzzer
Honda 750 turn buzer
new: metal chain guard
new: headlight holders chrome 72-78
Honda 750 headlight 1973
new: headlight shell is black 72-78
new: gauges have metal casings 72-78
new: larger reflectors on front forks 72-78
new: a continuous chrome grab rail from top
of one rear shock to another, extending behind seat
toward tail light, rear signals mounted on this 72-78
grab rail Honda 750
new: seat opens using a key 72-78
new: quieter '341' mufflers
Honda 750 341 exhaust 1972-1976
new: one-tooth front sprocket change, now 530 18/48 72-76
new: plastic document door under seat 72-78
new: grips 72-76
correct handlebar grip 1972-1976 Honda 750
new: a stop was added the brake pedal 72-76
Honda 750 brake pedal stopper
©Honda750Expert.com
Honda Product Code: 341
1972 Frame # CB750- 2000001 -
1972 Engine # CB750E- 2000001 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


1973 Honda 750 K3   38,000 made
September 1972 to June 1973
Honda 750 orange
America c
olors:
Flake Sunrise Orange (color code LV),
Candy Bucchus Olive (color code LY),
Maxim Brown Metallic (color code QQ)

--(new: Candy Bucchus Olive used a Candy Gold
topcoat color over a BLUE metallic basecoat)--


orange tank Honda 750 1973green tank honda 1973 750

new: splash guard on front disc
Honda 750 disc splash guard   disk splash guard Honda 750 1973-1076
new: internal improvements to front suspension.
new: larger rear mirrors.
new: running lights in front turn signals.
new: air filter housing inlet changes made to reduce noise.
new: '750 Four' emblem on side covers now white
lettering with its own black background 73-76
.
side cover and emblem, 1975 Honda 750Honda side cover emblem 73-76
new: gas tank design decal much larger,
now includes a black panel 73-76.
gas tank emblem, red 1975 Honda 750
new: fuses all in a single fuse box 73-78.
new: no more rubber between fins.
new: tank emblem 73-76
tank emblem Honda 750 1973-1976
new: wire harness and rectifier now have a coupler-lock together 73- .
new: a clutch-lever starter safety switch now used 73- .

new: New cylinder head, new valve guide seals,
improved oil passages to camshaft,
new piston rings (three part oil scavange rings,
new cam chain guide, larger piston pin circlips,
new final drive shaft, new sprocket cover,
beginning with CB750E-2200001.
new: New cylinder head, new valve guides,
new valve guide seals, no more rubber between fins,
improved oil passages to camshaft,
new piston rings (three part oil scavange rings,
new cam chain guide, larger piston pin circlips,
new final drive shaft, new sprocket cover,
beginning with CB750E-2228679.

©Honda750Expert.com
Honda Product Code: 341
Frame # CB750-2200001-
Engine # CB750E-2200001-

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


1974 Honda 750 K4  60,000 made
June 1973 to May 1974
1974 Honda 750
America c
olors:
Freedom Green Metallic (color code TC),
Flake Orange Sunrise (color code LV),
Boss Maroon Metallic (color code TD)
forrest green metallic 1974 Honda 750orange tank Honda 750 1973purple gas tank Honda 750 1974

Alternate colors reported:
Candy Gold, Silver Metallic
(Europe/Japan)

new: gear-change pattern now cast
into transmission cover by shifter
beginning with CB750E-2348092
Honda 750 shift pattern on 1974 side case    shift pattern Honda 750
new: cylinder head casting now has three
vertical bracings instead of four 74-78
,
beginning with CB750E-2352923.
new: speedmeter increments of 20mph (20, 40, 60).
new: smaller cam chain tunnel,
beginning with CB750E-2304501.

©Honda750Expert.com
Honda Product Code: 341
1974 Frame # CB750- 23000001 -
1974 Engine # CB750E- 23000001 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


1975 Honda 750 K5   35,000 made
May 1974 to December 1974
Honda 750 blue 1975
America c
olors:
Flake Apricot Red (color code UE)
Planet Blue Metallic
(color code MV)
1975 Honda 750 apricot1975 Honda 750 planet blue

new: fuel tap now on left side of tank
new: bigger turn signals
turn signal lens Honda 750 1975-1978
new: rounded passenger footpegs
new: no more friction adjustment for twistgrip
(this throttle grip tightening screw discontinued
--some had called this a 'cruise control'--)75-78

new: gauge faces are dark green
new: side-stand has a rubber 'kick-up' tip 75-78
new: new-style fuel valve gas petcock 75-78
new: speedometer increments of 10mph (10, 20, 30,)
©Honda750Expert.com
Honda Product Code: 341
1975 Frame # CB750- 25000001 -
1975 Engine # CB750E- 2372115 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types
.


1976 Honda 750 K6   42,000 made
December 1974 to June 1976
Honda 750 red side cover
America c
olor:
Antares Red
(color code R6CS)
red Honda 750 tank
--paint used a Special Silver basecoat,
NOT a Candy or a Metallic--

Alternate colors reported:
Candy Saphire Blue, Sunrise Flake Orange
(Europe/Japan)

new: strengthened swingarm
new: under-seat tool tray now plastic
new: carbs idle screw now on right, easier to access
new: no more automatic chain oiling
1976 Honda 750 green gauges
new: gauge faces are light-green.
new: Dunlop Gold Seal tires,
4.00 x 18 K87 rear, 3.25 x 19 F6 front.
new: a 40mm snap ring now used to retain
the clutch outer on the primary driven socket.
new: swingarm grease fittings no longer exposed on sides of bike,
is now a single bent thread-in fitting at
bottom of swingarm center 1976-1978
.
new: clutch almost identical to F1; new clutch basket;
new clutch cover; new chrome cover,
beginning with CB750E-2470427.
new: new gear shift drum, new center shift fork for improved shifting,
new gears on countershaft with bronze bushings, new case,
CB750E-2434657 to 2439607.
©Honda750Expert.com
Honda Product Code: 341
Frame # CB750- 2540001 -
Engine # CB750E- 2428762 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.



1977 Honda 750 K7   38,000 made
June 1976 to May 1977
1977 Honda 750
America colors:
Excel Black (color code NH-57) 77-78
Candy Alpha Red
(color code R-9C-S) 77-78
black tack 1977 Honda 750alpha red Honda 750 1977

new: new-design leaner/emissions carburetor set with
accelerator pump, known as 'PD model carbs' 77-78
1977 Honda 750 carburetor
new: shorter and wider 17" rear wheel 77-78
new: bigger 88-link 630 o-ring chain 77-78
new: exposed fork tubes 77-78
Honda 750 fork tubes 1977-1978
new: gas cap hidden under a lid 77-78
new: ignition key up near gauges 77-78
Honda 750 gauges 1978
new: choke now a cable, up by gauges 77-78
new: no heatshields on new upper exhausts 77-78
Honda 750 1978 exhaust
new: no chrome covers on rear shocks 77-78
Honda 750 rear shock 1977-1978
new: handlebar wiring now outside of the bars 77-78
new: oil tank cap no longer exposed 77-78
new: side cover shape 77-78
1977 Honda 750 side cover
new: front fender has no forward hoop
new: 630 sprockets 15 front / rear 42  77-78
new: side-cover emblem'750FourK' 77 only
side cover emblem 1977 Honda 750
new: HONDA emblems on tank have gold letters 77-78
gas tank emblem Honda 750 1977-78
new: new-design black caliper 77-78
Honda 750 brake caliper 197701978K
new: shorter rubber intake manifolds 77-78
new: grips 77-78
correct handlebar grip 1977-1978 750
new: front turn signals now lower,
mounted below headlight 77-78

front signals and headlight Honda 750 1977-1978
new: flat silver horn 77-78
horn Honda 750 A 1977 Honda 750A horn
new: seat 77 only
new: changes to brake pedal 1977-1978
©Honda750Expert.com
Honda Product Code: 405
1977 Frame # CB750- 27000009 -
1977 Engine # CB750E- 27000001 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


1978 Honda 750 K8   36,000 made
May 1977 to May 1978
Honda 750K 77
America colors: Excel Black and Candy Alpha Red 77-78
black tack 1977 Honda 750alpha red Honda 750 1977

new: contoured two-stage seat,
taller rear-half than prior year,
also has stitching on side near rear 78
Honda 1978 750 seat
new: were available at some dealers for
"$1699 out-the-door" in late 1977
-- I bought one
new: side cover emblem and decal 78 only
Honda 750 1978 side cover  side cover emblem Honda 750 1978

Honda 750 1978
©Honda750Expert.com
Honda Product Code: 405
1978 Frame # CB750- 28000001 -
1978 Engine # CB750E- 30000001 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.



--NOTES--

Honda 750 oil filterHonda 750 engine, earlyHonda 750 oil filter bolt 17mm head

All K models 1969 to 1978:
--had spoke wheels
--had points/condensor ignitions
--had single-disc front brakes
--had rear drum brakes
--had 4-into-4 exhaust systems
--had a single overhead cam (SOHC)
--had centerstands
--had both electric start and kickstart
--had 5-speeds
--had 19" front wheels
--had tubes inside the tires
--occasionally found parts 'cross-overs' from one
year to another, either new or pieced together
(some are known as 'transition models')
--were air-cooled
--each bike had about 2500 parts

This public page is valuable but is NOT all-inclusive;
there are minor variations and secrets NOT listed on
this page, in part to retain my consulting value as a
consumate vintage Honda 750 expert and evaluator!

Honda750Expert.com



Non-'K' models:


Honda 750 super sport



1975 Honda 750 F (F0) Super Sport  15,000 made
January 1975 to February 1975
1975 Honda 750F blue
America colors:
Flake Sunrise Orange R2CF and Candy Sapphire Blue PB3CC

gas tank 1975 Honda 750F orange Super Sportgas tank blue 1975 Honda 750F blue Super Sport
new: 4-into-1 exhaust 75-78
new: side covers are dull black 75-76
new: front fender has no forward hoop 75-78
new: exposed fork tubes 75-78
new: electrical connections in a black box near horn 75-76
new: sprockets 17/48 75-76
new: 102-link 530 chain 75-76
new: gas cap hidden under a lid 75-78
new: chrome chain guard 75-78
©Honda750Expert.com
Honda Product Code: 392
1975 Frame # CB750F- 1000002 -
1975 Engine # CB750FE- 2500004 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types
.


US 1976 Honda 750 F1 Super Sport  44,000 made
March 1975 to November 1976
1976 Honda 750F yellow
America colors:
Sulfur Yellow Y34 and Candy Antares Red
R6CS

©Honda750Expert.com
Honda Product Code: 392
1976 Frame # CB750F- 2000003 -
1976 Engine # CB750FE- 2515094 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types
.


1977 Honda 750 F2 Super Sport  25,000 made
November 1976 to May 1977
Honda 750F 1977 red
America colors: Black NH1 and Candy Presto Red R8CS
1978 black Honda 750F Super Sport gas tankgas tank 1978 Honda 750F red  Super Sport
new: ComStar wheels 77-78
Comstar wheel front Honda 750F Super Sport 1977
new: dual front disc brakes 77-78
new: black engine 77-78
new: fork legs are black 77-78
new: emblem on side covers
new: stiffer clutch springs 77-78
new: dual horns 77-78
new: choke now a cable, up by gauges 77-78
new: calipers now behind forks 77-78
new: rear disc brake 77-78
new: accelerator pump on carb set 77-78
new: electrical connections in headlight shell 77-78
new: sprockets 15/43 77-78
new: 88-link 630 chain 77-78
©Honda750Expert.com
Honda Product Code: 410
1977 Frame # CB750F- 2100011 -
1977 Engine # CB750FE- 2600004 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types
.


1978 Honda 750 F3 Super Sport   18,000 made
May 1977 to May 1978
Honda 750F2 1978
America colors: Black NH 1 and Candy Presto Red R8CS
1978 black Honda 750F Super Sport gas tankgas tank 1978 Honda 750F red  Super Sport
new: emblem on side covers
©Honda750Expert.com
Honda Product Code: 410
1978 Frame # CB750F- 2200001 -
1978 Engine # CB750FE- 3100001 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.






Honda 750 Hondamatic emblem blue




1976 Honda 750A Hondamatic
December 1975 to September 1976
1976 Honda 750 automatic red
America colors:
Muscat Green Metallic G38MS and Candy Antares Red R6CS


new: 2-speed transmission
new: 4-into-1 exhaust
new: no tachometer
new: lower compression and smaller
carburetors than other 750 models

new: has fuel gauge
new: has gear indicator
new: kickstand has gear lockout
new: front fender has no forward hoop 76-78
new: sprockets 17/48 76
new: 104-link 530 chain
76
new: no kickstarter visible; kept strapped
under seat, emergency kickstart lever 28240-393-000 or
28240-393-770 is stored, used on left side of engine,
plugs on mount under cap forward of left footpeg
in exact center of right photo block below 76-78
Honda 750 automatic kickstart lever   Honda 750 automatic kickstart location just forward of left footpeg
new: gas cap hidden under a lid 76-78
new: chrome chain guard 76-78
new: kickstand going down also
puts the transmission in neutral 76-78


Honda 750 Hondamatic kickstand   Hondamatic kickstand Honda 750

new: new-design leaner/emissions carburetor set with
accelerator pump, known as 'PD model carbs' 76-78
(but these are smaller than the PD carbs used on 77/78 K&F models)
©Honda750Expert.com
Honda Product Code: 393
1976 Frame # CB750A- 7000001 -
1976 Engine # CB750AE- 7000001 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types
.


1977 Honda 750A Hondamatic
September 1976 to May 1977
1977 Honda 750A automatic red
America colors:
Candy Sword Blue PB7C and Candy Presto Red R8CS


new: 4-into-2 exhaust 77-78
new: sprockets 15/42 77-78
new: 88-link 630 chain 77-78
©Honda750Expert.com
Honda Product Code: 393
1977 Frame # CB750A- 7100001 -
1977 Engine # CB750AE- 7100001 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.


1978 Honda 750A Hondamatic
May 1977 to October 1977
Honda 750 Automatic 1978
America colors:
Candy Polaris Blue PB100CS and Candy Alpha Red R9CS


new: ComStar wheels
©Honda750Expert.com
Honda Product Code: 393
1978 Frame # CB750A- 7200001 -
1978 Engine # CB750AE- 7200001 -

Note: additional minor variations, different part numbers, changes and/or crossovers may have occurred within some shown or listed types.



Contact us with your photos, tips, questions, and comments.

FREE ADVICE:
We get many e-mails EVERY DAY
with 69-78 Honda 750 questions!

E-mail to Honda750Expert@gmail.com
(be sure to include location, phone number and
any Honda model info you can. Photos help.)



links for Honda 750 parts Links


Honda 750 questions questions & comments for for Honda 750 expert Recent questions and comments page


parts wanted/needed for Honda 750 Honda 750 parts wanted/needed


Book for buying and restoring Honda 750 1969-1978 (Book) 'Honda 750 : Buying and Restoring 1969-1978 models'

Alphabetical topic index for this long page

Numerical topic index for this long page

Honda 750 side covers Replacement side covers for Honda 750

Honda 750 for saleHonda 750s nationwide for sale page


1972 Honda 750 for sale two 1972 Honda 750s for sale in Alabama

1973 Honda 750 for sale 1973 Honda 750 for sale in Utah

1970 Honda 750 for sale 1970 Honda 750 for sale in San Antonio Texas

1971 Honda 750 for sale 1971 Honda 750 for sale in Virginia

1971 Honda 750 for sale 10/74 Honda 750 for sale in Taft California

Yes, you saw us on Honda 750 Expert on YouTube
 (click here:)  Honda 750 Expert 1969-1978


Entire site and content ©Honda750Expert.com

Presented in a long unbroken format so it can be printed out in entirety as a nearly
300-pages Honda 750 Restoration & Buyer's Guide eBook.
© Honda750Expert.com
