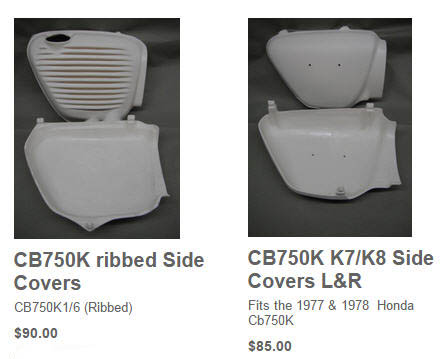

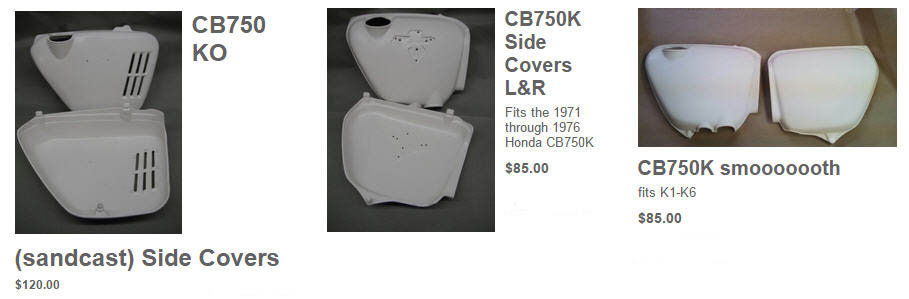

Here are some aftermarket replacement sidecovers for Honda 750s:

__________________________

FB-stuff.com is solid to do business with.

Honda 750 side covers 1969-1976

Visit their side cover page at (click here:)
www.fb-stuff.com/fb-stuff-store.html

Let them know that Honda750Expert referred you.

___________________________

Perhaps other side cover vendors will be listed here too as satisfied user feedback comes
in and we then receive permission to list the side cover photos and their purchase info here.

And here is the year-by-year Honda 750 US K, F, and A models
reference list for side-cover shapes and emblems from Honda750Expert.com

Honda 750 US K models 1969 through 1978:

side cover and emblem red Honda 750 1969-1970

side cover and emblem red Honda 750 1969-1970

(1) 1969-1970 (2) 1971-1972 (3) 1973-1976 (4) 1977 (5) 1978

Note that for 1977-1978 K-models, side covers no longer expose an oil tank cap.

Honda 750 side cover red jewel 1971

Honda 750 side cover orange jewel 1972-1976

Red side cover diamond jewel = originally for 71.     Orange side cover diamond jewel = originally for 72-76.
Red diamond jewel, battery side= part #87126-300-405       Orange diamond jewel, battery side= part #87126-341-405
Red diamond jewel, oil tank side= part #87127-300-405      Orange diamond jewel, oil tank side= part #87127-341-405

Some reproduction jewels are not exact. Example: some are missing the Hm at base of the wings.

emblem 1970 Honda 750 side cover

1969-1970 1971-1972 1973-1976 1977 1978

69-70 gold-around-white-wings emblem, 1969 Honda 750 side cover emblem

left side = part #87124-300-020

69-70 gold-around-white-wings emblem, right side = part #87123-300-020

71-72 plastic chrome '750Four' script emblem = part #87123-300-030

73-76 white metal '750Four' on black background emblem = part #87123-341-673

77 gold '750FourK' emblem = part #87123-405-000

78 gold '750Four' emblem = part #87123-405-777

Insider tip: with most Honda-factory-made US-issue 1971 through 1976
no-vents 750K side covers can use either your choice of the 71-72 or the 73-76
'750 Four' upper emblems above the diamond jewels (the newer/bigger emblem covers the indenting
used by the older emblems while most 73-76 covers still have the indenting used on the previous years);
these factory-issue no-vents covers themselves should fit all K-model bikes models 1971-1976.

- - - - - - - - - - - - -

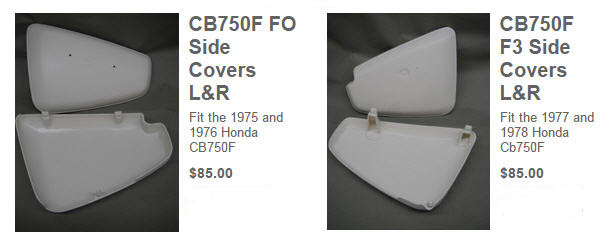

Honda 750 Super Sport US F-model side-cover shapes and emblems:

Honda 750 F sidecover 1975-1976

Honda 750F super sport side cover 1977-1978

US Honda 750F Super Sport side cover part numbers:
Left, 1975-1976 83700-392-000 (can be followed by a color code)
Left, 1977-1978 83700-410-000 (can be followed by a color code)
Right, 1975-1978 83700-392-000 (can be followed by a color code)

1975-1977 Honda 750F Super Sport side cover emblem

<75-77F 78F> side cover emblem Honda 750 F Super Sport 1978

US Honda 750F Super Sport side cover emblem part numbers:
1975-1977 87127-392-000
1978 87127-410-770

___ ___ ___ ___ ___

Honda 750 Automatic US A-model side-cover shape and emblems:

Honda 750 automatic side cover blue

Side cover emblem A (750 only), 1976-1978 Honda 750 Automatic: part # 87111-393-000
Side cover emblem B (HONDAMATIC only), 1976-1978 Honda 750 Automatic: part # 87113-393-000

Note: Involves transition models. Other part numbers, additional minor variations, changes
and/or crossovers may have occurred within some shown or listed types.
